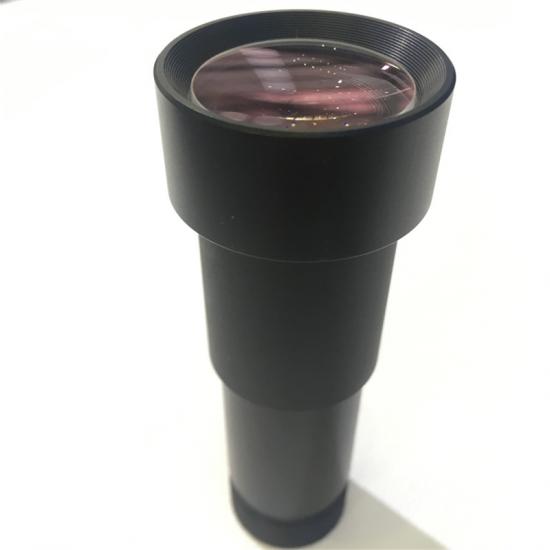

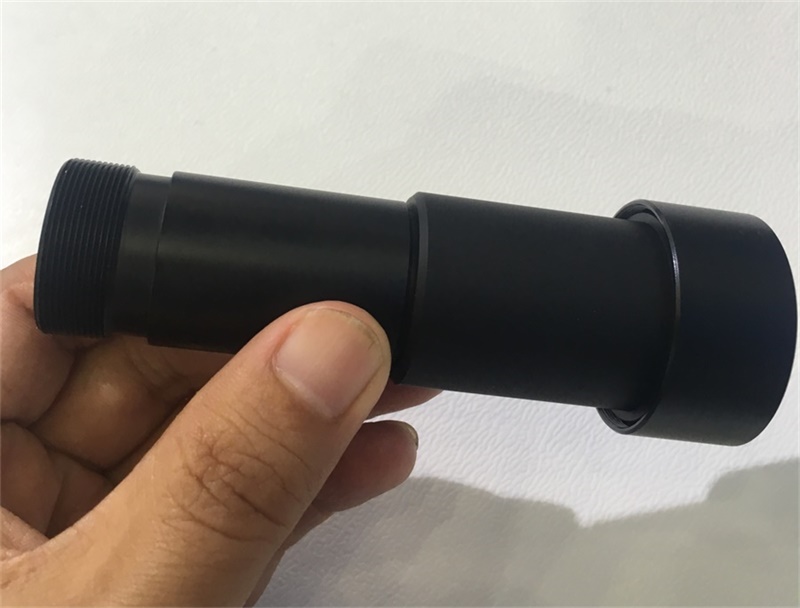

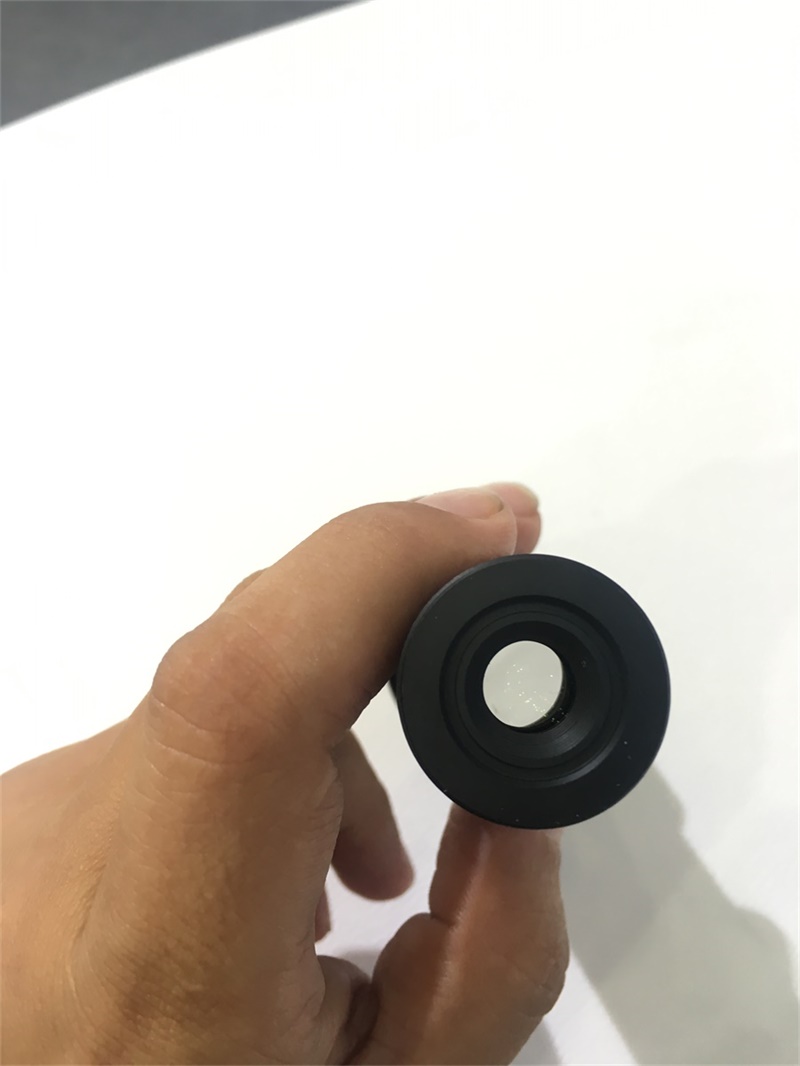

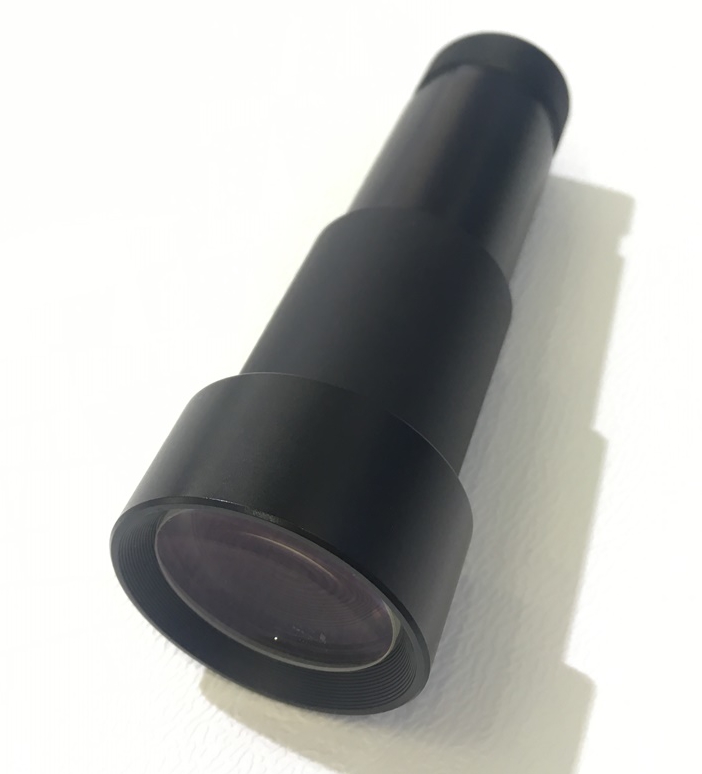

Product Name: 1/2'' 12MP 4K 20-80mm manual varifocal zoom lens c mount telephoto 9G FOV 1.5 to 4.7 degree
Product Advantage
1, Ultra 4K Varifocal Lens C Cmount
2, 4X Optional Zoom Manual Focusing
3, 12 Megapixels Lens, Glasses imported from Japan
4, Remove and correct unexpected spherical aberration by using asperical Lenses
Product Specification
keying technical feature of 20-80mm 12 Megapixel Varifocal Lens

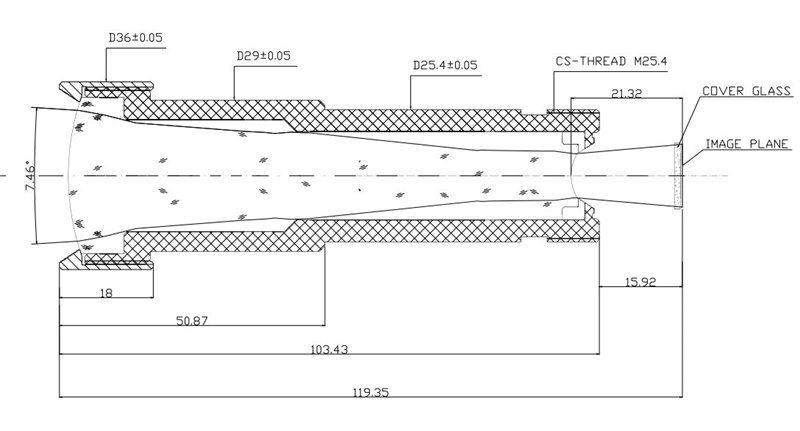

1，TTL: 119.35mm
2, EFFECT Focal length: 20-80mm manual focusing
3, Aperture F/No: 3.8
4, Optical Back Focal Length: 21.32mm
5, Mechnical Back Focal Length: 15.92mm
6, Max image circle: 12.5
7, FOV (D/H/V)1.54/1.2/0.93 (1/7.5 OV7251),
5.7/5/2.8 degree (1/2 OS08A10-H92A sensor)
8, Optical Distortion: <-0.03%
9, Relative illumination: >99%
10, CRA: < 4 degree
11, mount type: M25.4
12, Lens construction: 9G+1IR
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, MTF resolution: center 260Lp/mm, 0.7 area 200Lp/mm

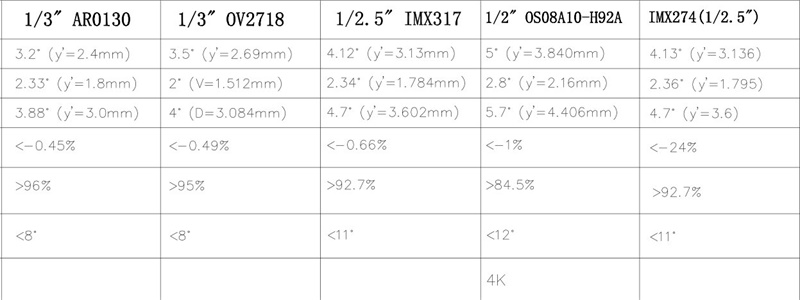

Technical Datasheet of 20-80 C Mount Vari-focal Lenses
Product Application
1, Lens for telephoto Camera
2, Lens for security Camera
3, Lens for ITS Lens
4, Lens for surveillance camera
5, Lens for telescope
6, Lens for Forest Camera
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
