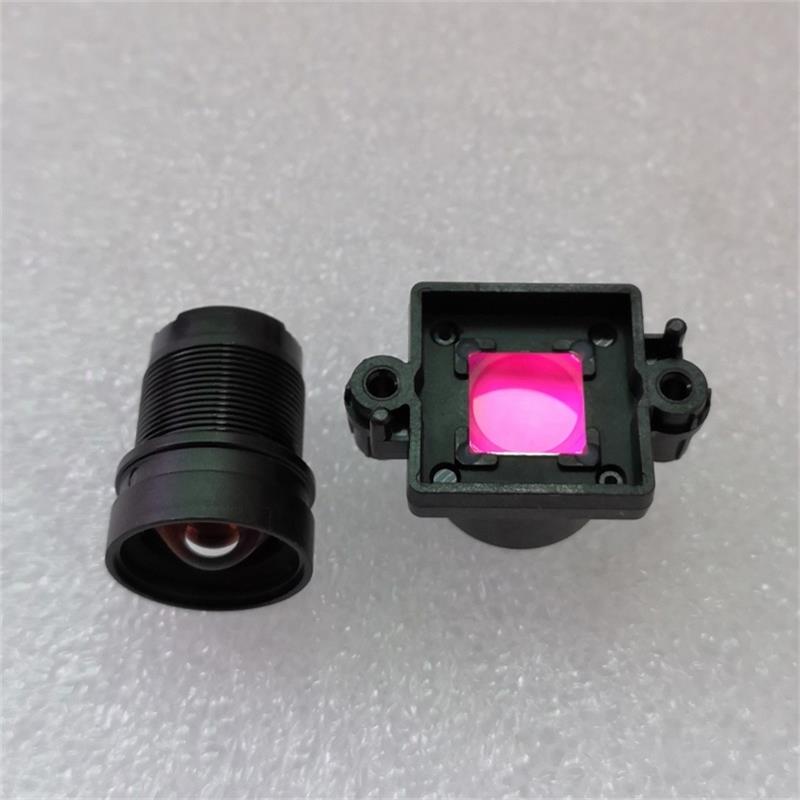

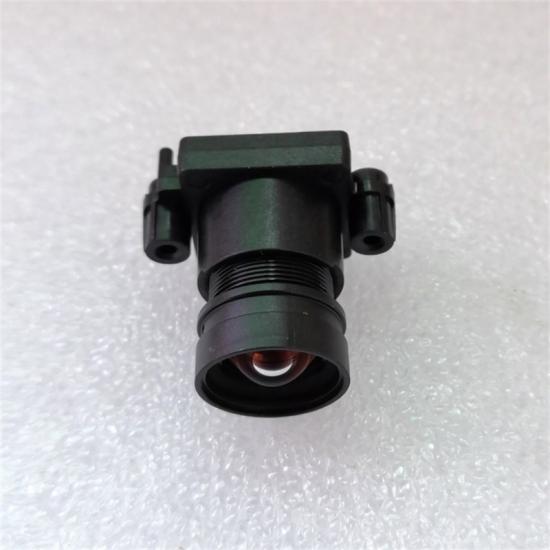

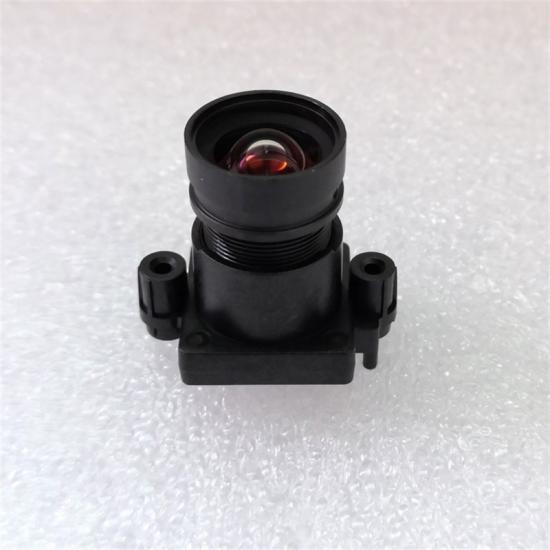

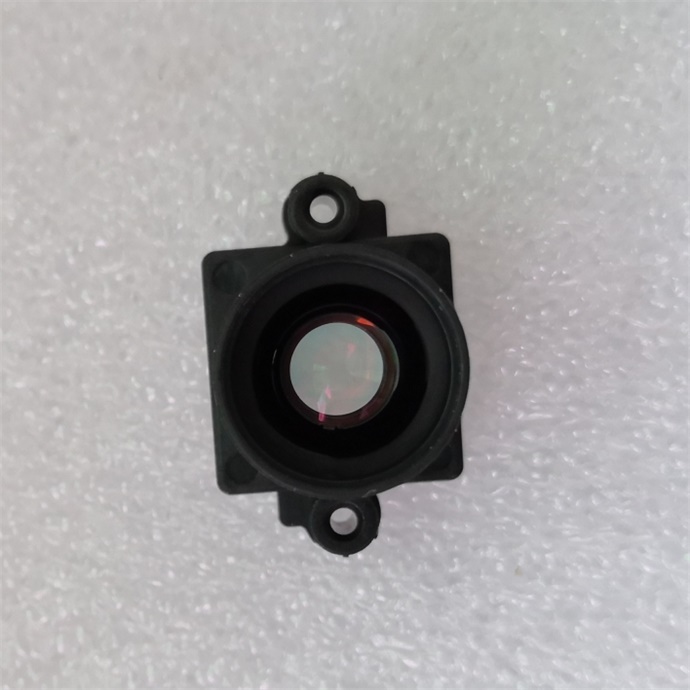

Product Name: 6mm M12 5MP Night Vision F0.95 Lens with ICR 1/2.7''
Product Advantage:
1, Classical 6mm Lens for Night Cameras CCTV
2, F0.95 Large Aperture Lens Dark Light Visible
3, 5 Megapixels 1080P High Resolution
4, Remove and correct unexpected spherical aberration by using asperical Lenses
Product Specification

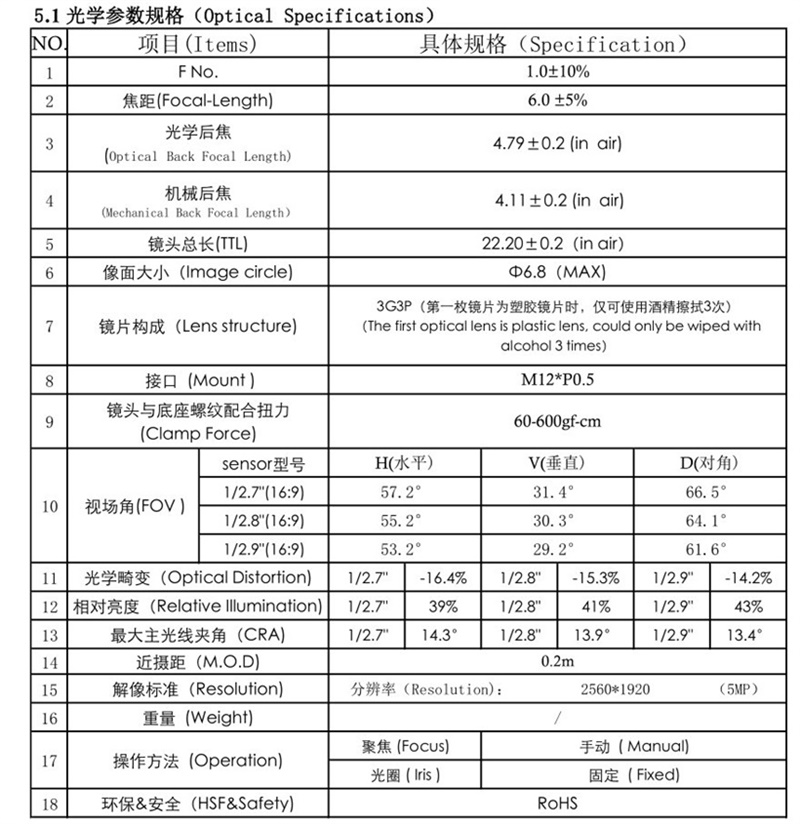

optical specification of 6mm M12 Night Vision Lens
1, Focal length: 6.0 ±5%
2, Aperture F/No: 1.0±10% ( Actual F/No: 0.95)
Black Light Lens, Low Lux Visible
3, Optical back focal length (OBFL): 4.79±0.2 (in air)
4. Mechanical back focal length (MBFL): 4.11±0.2 (in air)

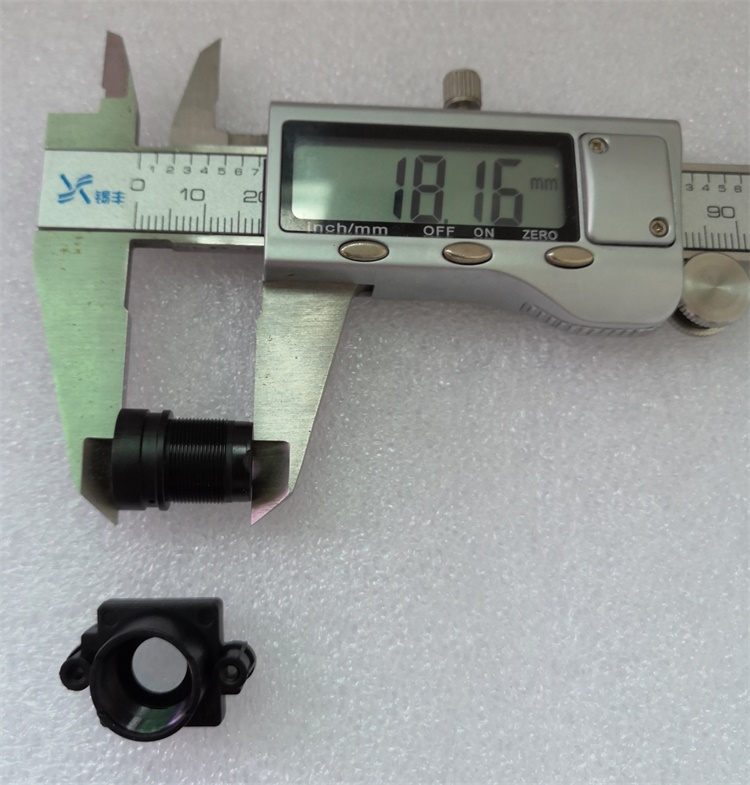

5. TTL: 22.20±0.2（in air）
6, Max image circle: Φ6.8（MAX)
7, Lens structure: 3G3P
8, Mount type: M12*P0.5
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V) D 66.5° H 57.2° V 31.4°
11, Optical Distortion 1/2.7" -16.4% 1/2.9" -14.2%
12, Relative illumination 1/2.7" 39%， 1/2.9" 43%
13, CRA 1/2.7" 14.3°， 1/2.9" 13.4°
14, M.O,D. 0.2 meter
15, MTF resolution 2560*1920 （5MP）
16, Focus operation: manual
Iris operation: fixed
17, HSF&safety: RoHS

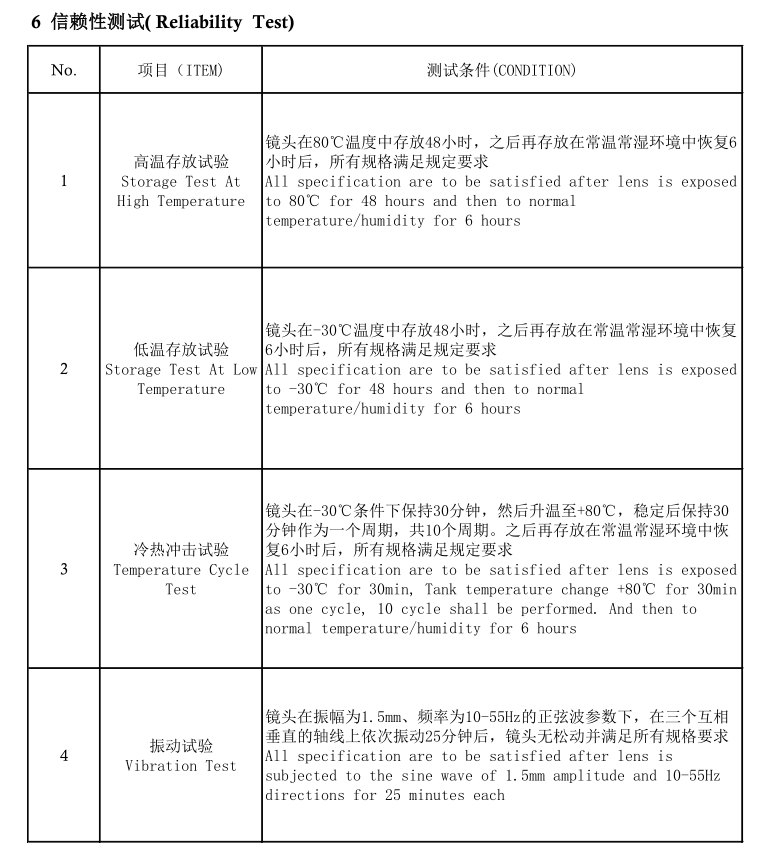

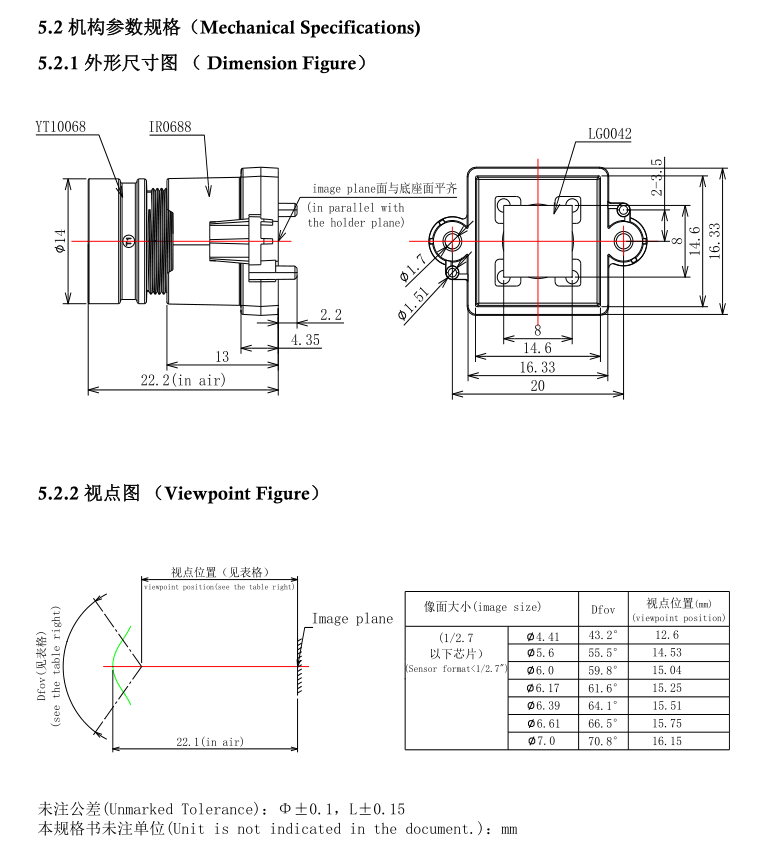

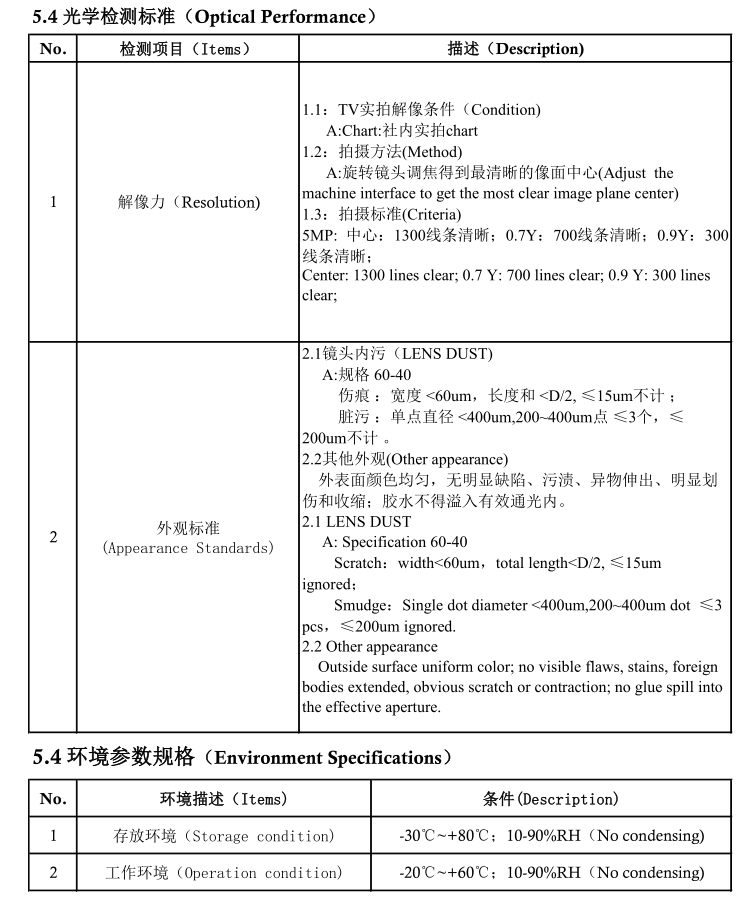

Technical datasheet of 6mm CCTV Lens
Lens Application
1, CCTV Camera Lens, Starlight Camera Lens
2, Surveillance camera Lens, Wireless security Camera Lens
3，IP Network Camera Lens, POE Camera Lens, SDI camera Lens
4, Bullet Camera Lens, Dome Camera Lens, AHD Camera Lens
5, Wifi Camera Lens, VR 360 Wifi Camera Lens, Bulb Wifi Camera Lens
6, Night Camera Lens, Night Vision Camera Lens
7, Floodlight Camera Lens, Indoor/ourdoor Camera Lens
8, Security Smart Home Camera Lens
9, 4G/ Solar Panel/ Battery Camera Lens
10, Wifi door Phone Camera Lens, doorBell Camera Lens, USB WebCam Lens
11, Baby Monitor Lens, Video Recorder Lens
12, Lens for Hikivision and Dahua Camera
Custom M12 Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China.Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too。welcome to share your lens requirement or product idea with us to discuss and proceed， thank you very much
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
