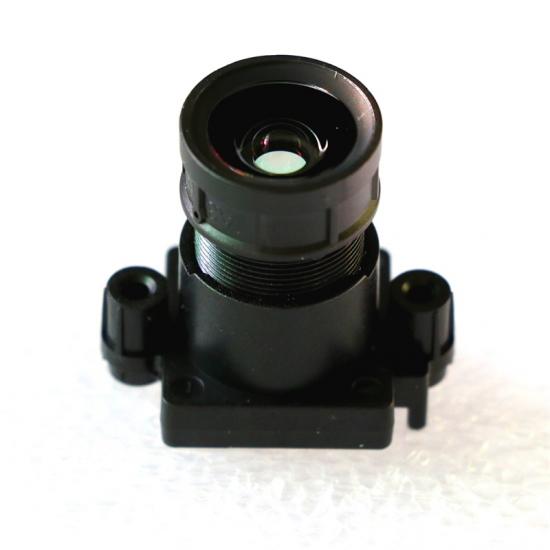

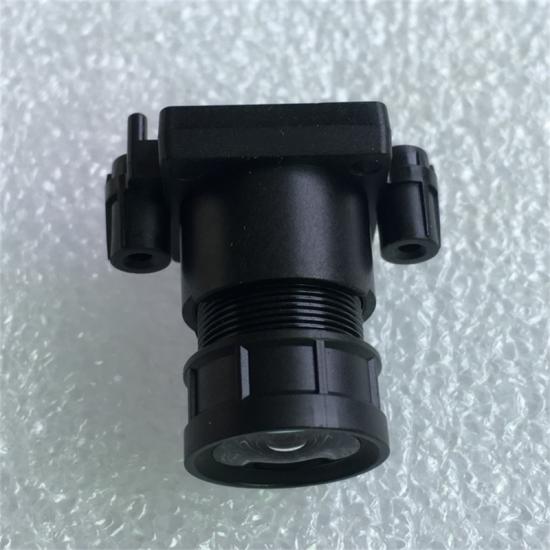

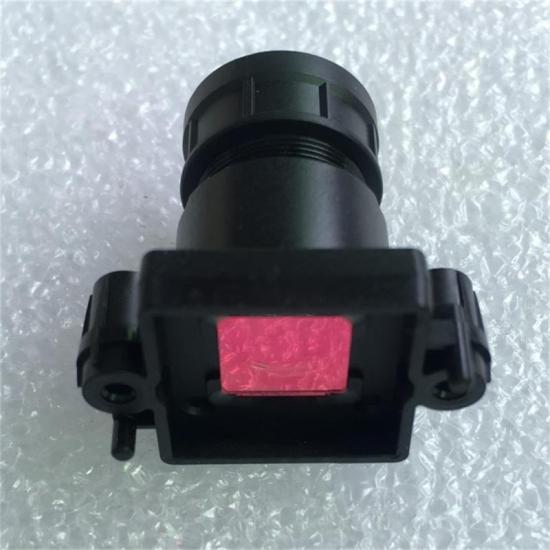

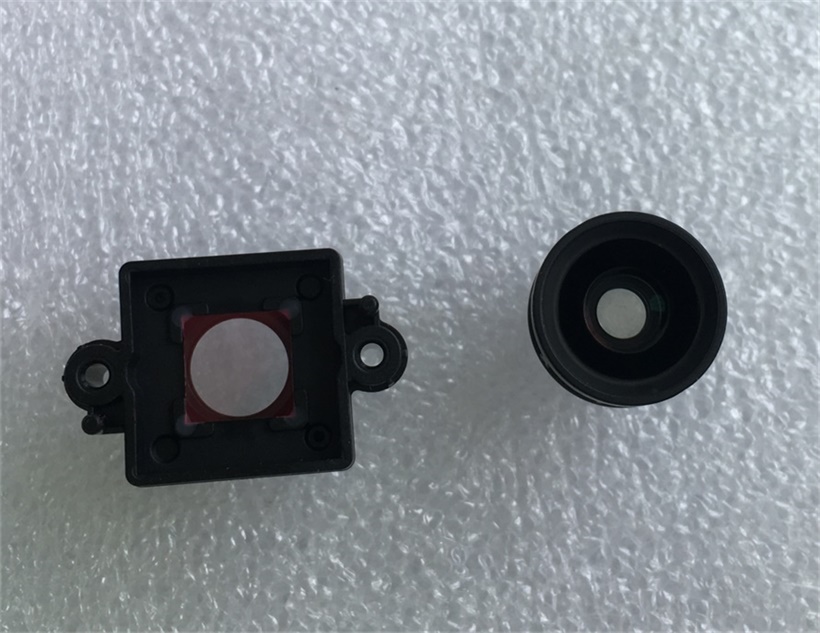

Product Name: 1/2.7'' 4mm black light F0.9 super starlight night vision cctv camera lens 5MP/2MP
Product Advantage:
1, F0.9 largest Aperture perfect for CCTV Night Vision Camera
2, Classical 4mm Lens for mostly cctv camera
3, Used in Board Camera, MTV Lens, Cmos Board Module etc
4, All Lens will be free from maintenance within Quality warranty period ( 2 years)
Product Specification

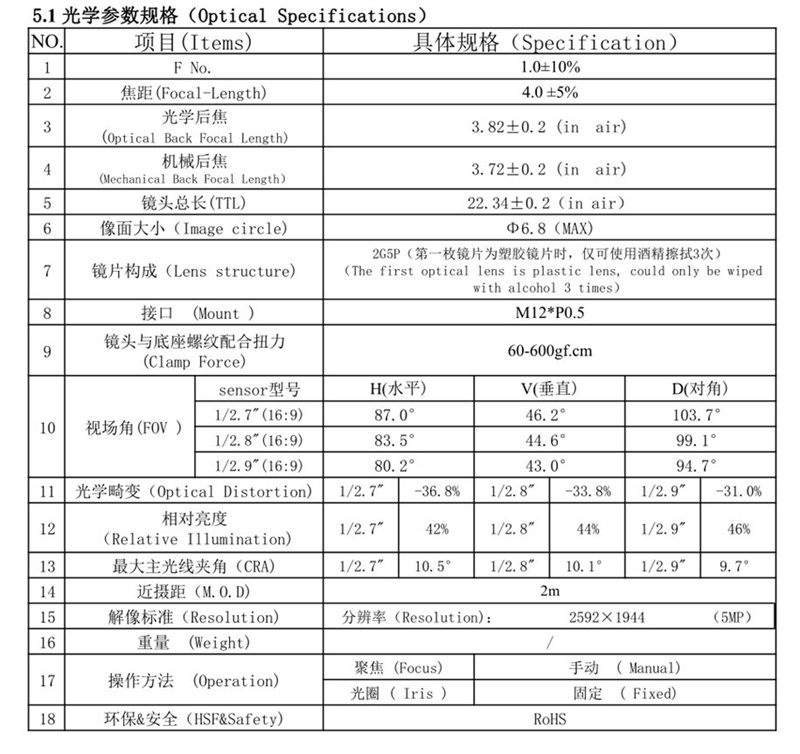

optical specification of 4mm 5MP M12 Dark Light Lens
1, Focal length: 4.0 ±5%
2, Aperture F/No: 1.0±10% ( Actual F/No up to 0.9)
Dark Light visible Lenses
3, Optical back focal length (OBFL): 3.82±0.2 (in air)
4. Mechanical back focal length (MBFL): 3.72±0.2 (in air)
5. TTL: 22.34±0.2（in air）
6, Max image circle: Φ6.8（MAX)
7, Lens structure: 2G5P
8, Mount type: M12*P0.5
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V) D 103.7° H 87.0° V 46.2°
11, Optical Distortion 1/2.7" -36.8%, 1/2.9" -31.0%
12, Relative illumination 1/2.7" 42% 1/2.9" 46%
13, CRA 1/2.7" 10.5° 1/2.9" 9.7°
14, M.O,D. 0.2 meter
15, MTF resolution 2592×1944 （5MP）
16, Focus operation: manual
Iris operation: fixed
17, HSF&safety: RoHS

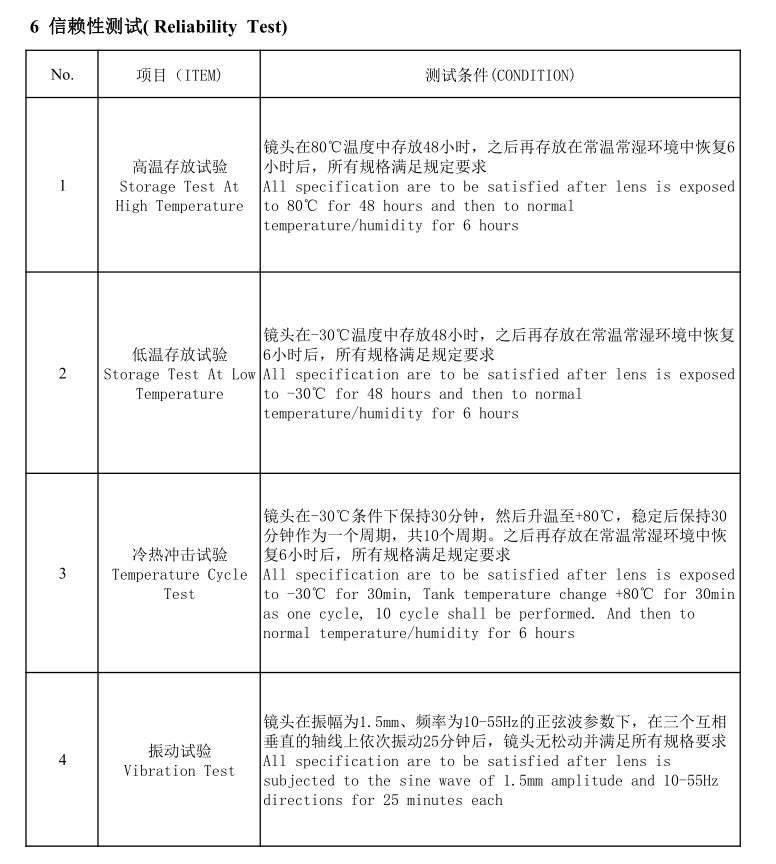

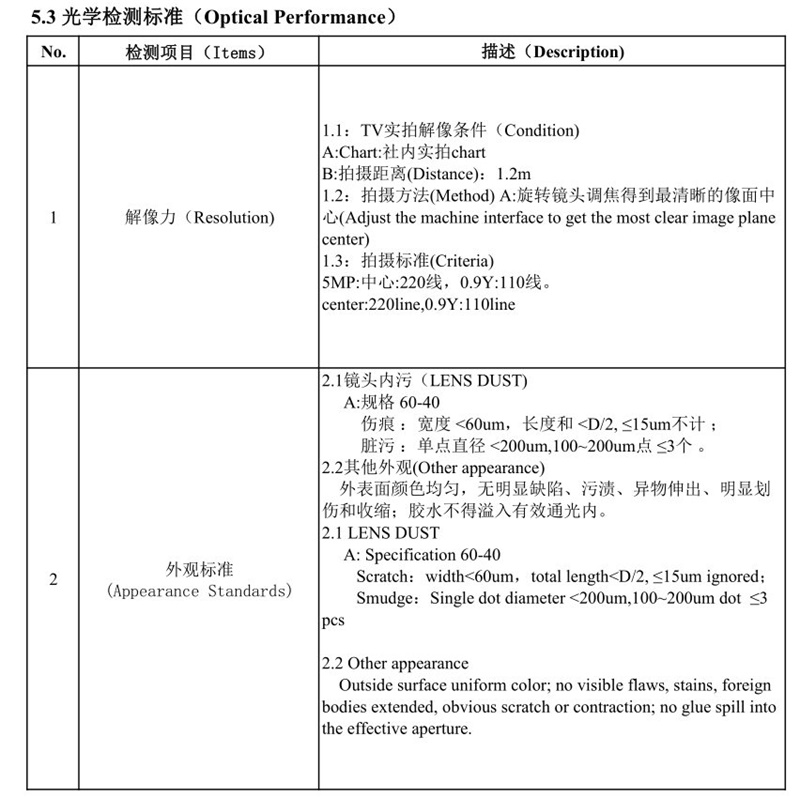

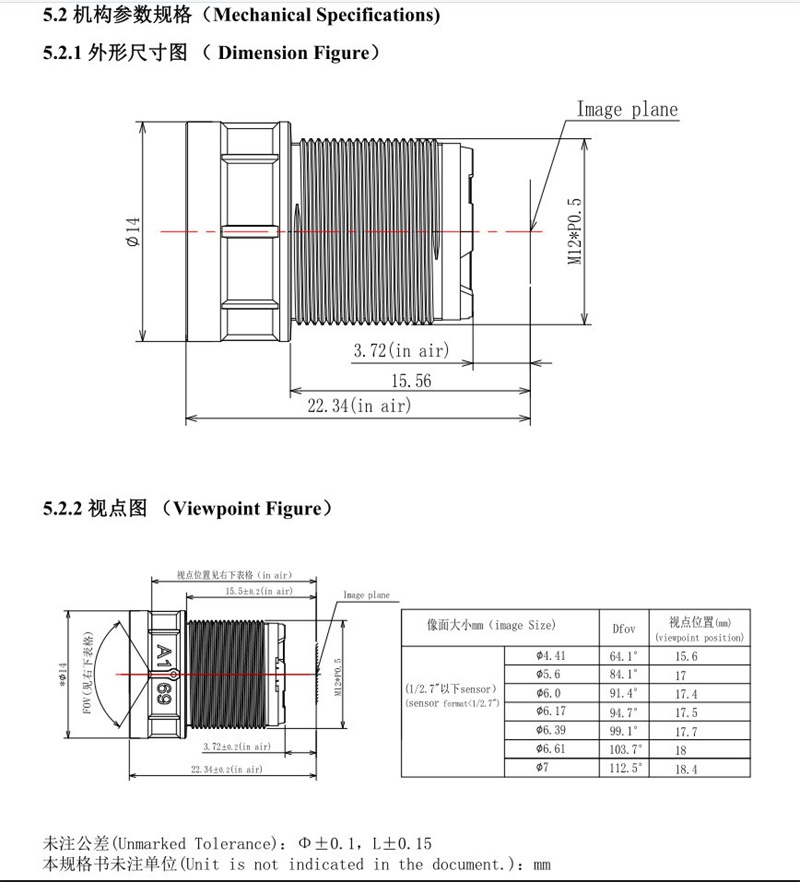

Technical Datasheet of 4mm Super Starlight Lens
Lens Application
1, CCTV Camera Lens, Starlight Camera Lens
2, Surveillance camera Lens, Wireless security Camera Lens
3，IP Network Camera Lens, POE Camera Lens, SDI camera Lens
4, Bullet Camera Lens, Dome Camera Lens, AHD Camera Lens
5, Wifi Camera Lens, VR 360 Wifi Camera Lens, Bulb Wifi Camera Lens
6, Night Camera Lens, Night Vision Camera Lens
7, Floodlight Camera Lens, Indoor/ourdoor Camera Lens
8, Security Smart Home Camera Lens
9, 4G/ Solar Panel/ Battery Camera Lens
10, Wifi door Phone Camera Lens, doorBell Camera Lens, USB WebCam Lens
11, Baby Monitor Lens, Video Recorder Lens
12, Lens for Hikivision and Dahua Camera
About US
we are China professional Plastic Lens, Glass Lens and Custom Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute High quality Industrial Camera Lens too

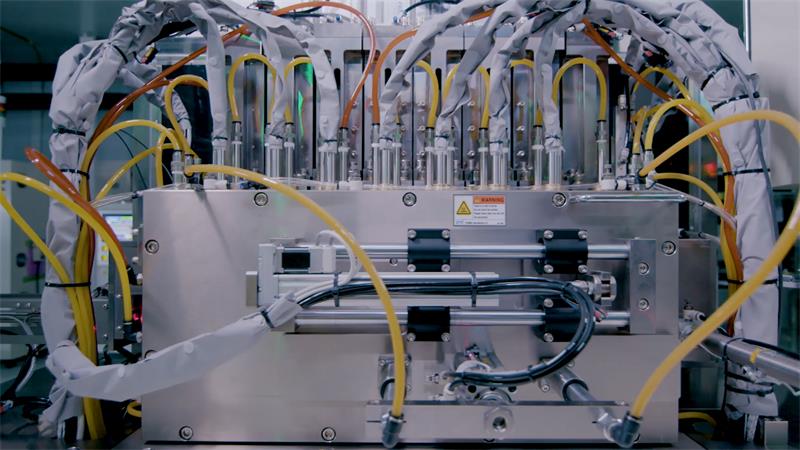

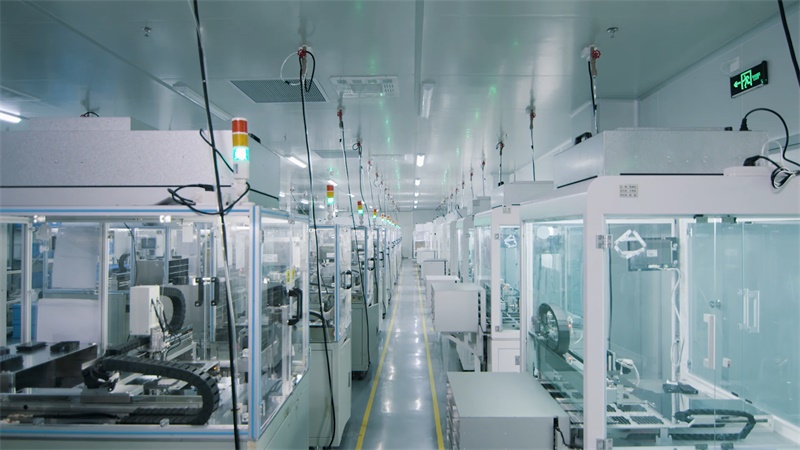

The Following 2 pictures are our Lens Manufacturer equipment / machines working in our lens factory
Custom Starlight Black Light Lens cctv
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China.Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 LensCustom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera.their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5,CS Mount, C mount, F mount Industrial Camera Lenses too。welcome to share your lens requirement or product idea with us to discuss and proceed， thank you very much
Regarding more details how to Custom Camera Lens, please visit our top tile online " CUSTOM LENS" homepage on Vehviscam where you can know what we can work together and believe that we are one professional China custom lens manufacturer and cctv lens manufacturer
