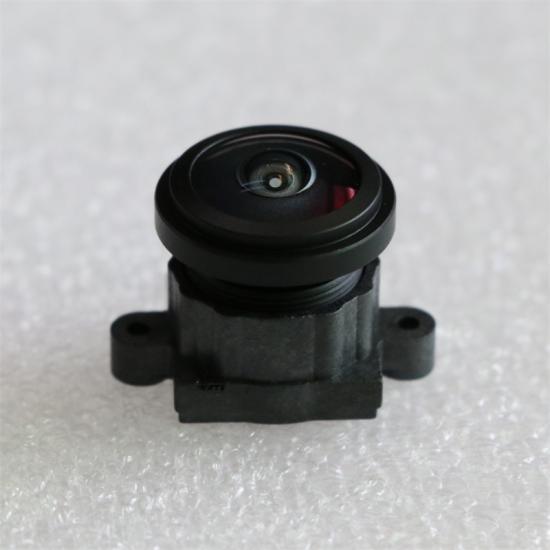

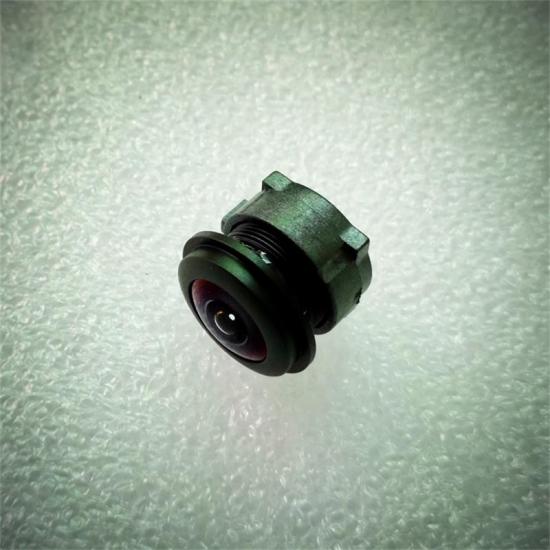

Product Name: 1/4'' 1.2mm fisheye lens 185 degree for car reversing and Surround view camera RVC SVS IP68
product advantage
1, 1/4'' 185 degree Fisheye 360 Car Camera Lenses
2, 185 degree Fisheye Lens for Projector
3, Fisheye Lens Focal Length 1.2mm used for 360 panoramic camera lenses
4, Compact structure, AVM Camera Lens for Cars
Product Specification
Technical datasheet of 1.2mm Short Focal Length Lens
1,Effect Focal Length: 1.2mm
2,Back Focal Length: 3.04mm
3,Flange.Focal.Length: 2.18mm
4,Aperture F/NO: 2.4
5,Matching Sensor: 1/4"
6,Max image circle: 3.8
7,HFOV: 185°
VFOV: 130°
DFOV: 185°
8,TV distortion: 110%
9,Thread size: M12xP0.5
10,Lens Structure: 6G

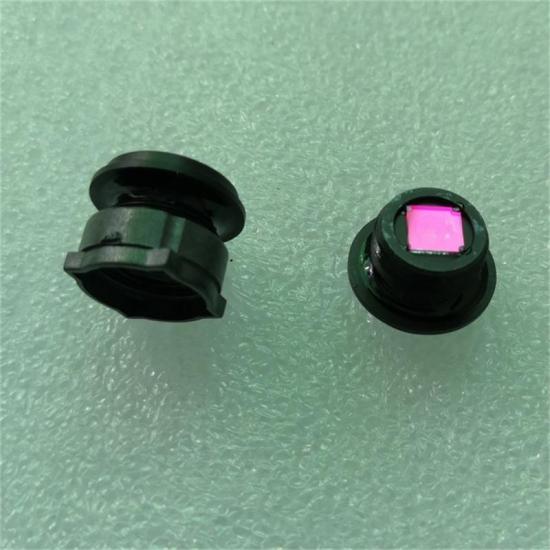

11,IR filter: 650IR
12,Waterproof grade: IP67
T avg>=88% @420-600nm
T=50% ①650±10mm
T avg<=5% @700-1050nm

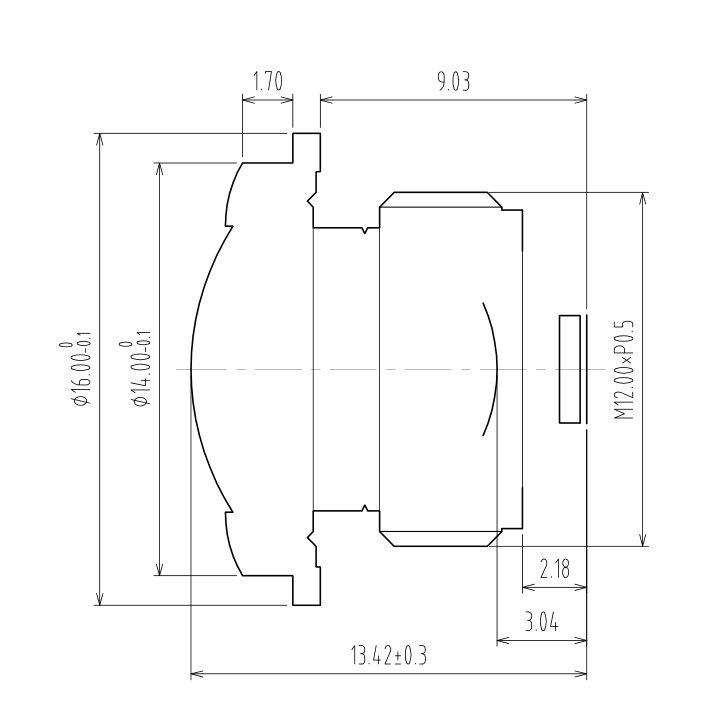

13, TTL: 13.42mm

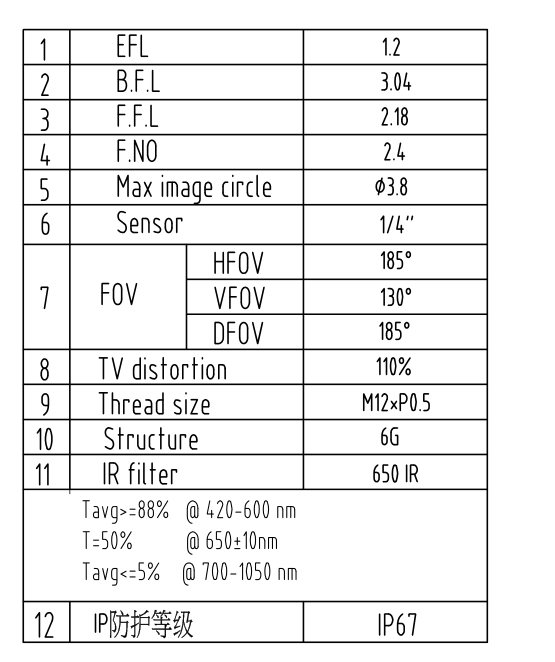

technical datasheet of 1/4 1.2mm 360 Degree Fisheye Lens
Product Application
1，Lens for 360 Car camera full visiable
2, Lens for 360 panoramic camera
3, Lens for action camera
4, Lens for Projector
5, Lens for FPV/Drone Camera
6. Lens for Car 360 surround view Camera
Custom Fisheye Lenses, Custom Lenses Manufacturer in China
We are professional Fisheye Lens Manufacturer, Fish Eye Lenses Maker Supplier,
factory produce 177/180/185/190/195/200/205/206/210/220/230 degree Fisheye Lens,
now we are R&D Developing Horizontal Angle 242 degree super Ultra Lenses
of course accept Custom Made Fisheye Lenses for your projects specially
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
