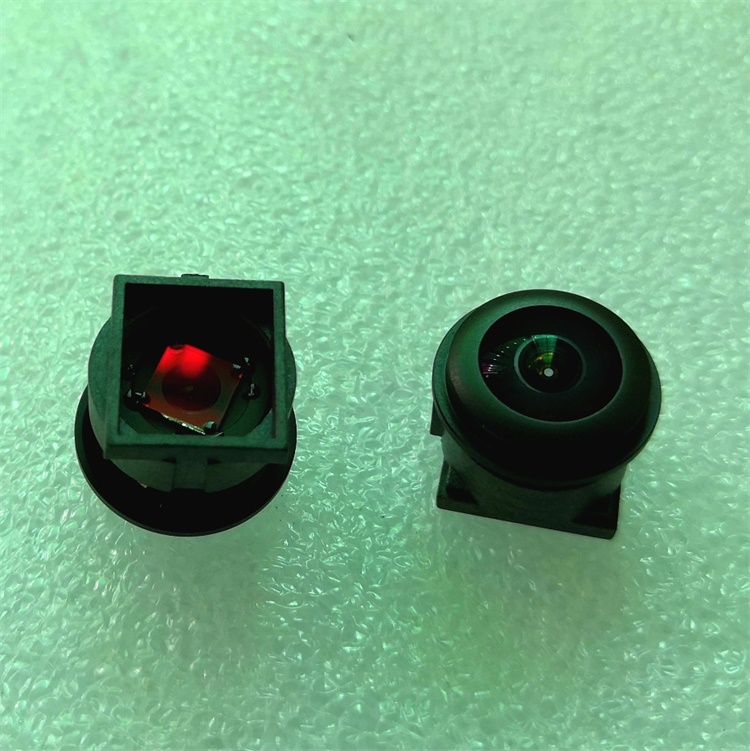

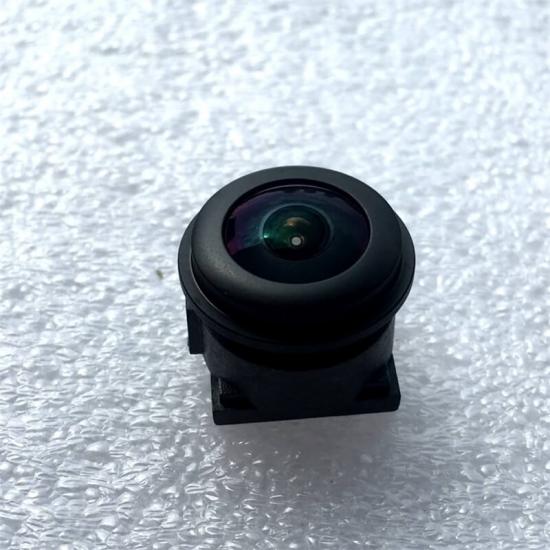

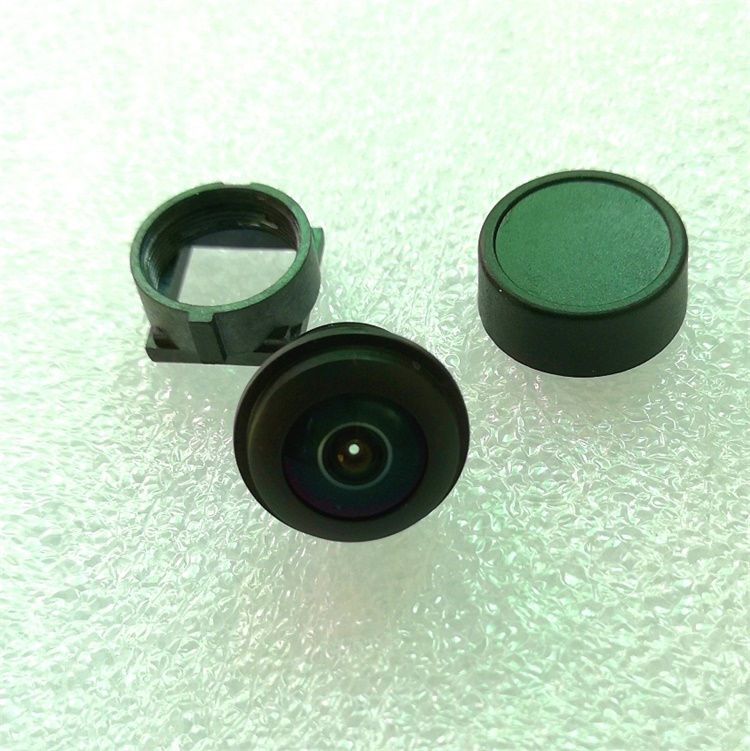

Product Name: China 1/3" 1.45mm horizontal 200 degree 6G m12 ultra fisheye Lenses IP67 waterproof
Product Advantage
1,HOFV 200 degree Ultra Fisheye Lenses producted by China Vehviscam manufacturer Limited shenzhen factory
2, Very Short TTL 12.96mm compact design
3, 200 degree good for car around surround view camera lens
4, it is also one Cheap Projector Lens, Fisheye lens for projector
5, Compact structure, excellent optical performance
Product Specification
Technical specification of 1.45mm 200 degree Cheap Wide Angle Lens
1,Effect Focal Length: 1.45mm
2,Back Focal Length: 3.06mm
3,Flange.Focal.Length： 2.06mm
4,Aperture F/NO： 2.3
5,Matching Sensor： 1/3"
6，HFOV： 200°
VFOV：134°
DFOV： 200°
7，TV distortion: 110%
8，Thread size: M12xP0.5
9，Lens Structure: 6G
10，IR filter: 650IR
11，Waterproof grade: IP67
T avg>=88% @420-600nm
T=50% ①650±10mm
T avg<=5% @700-1050nm

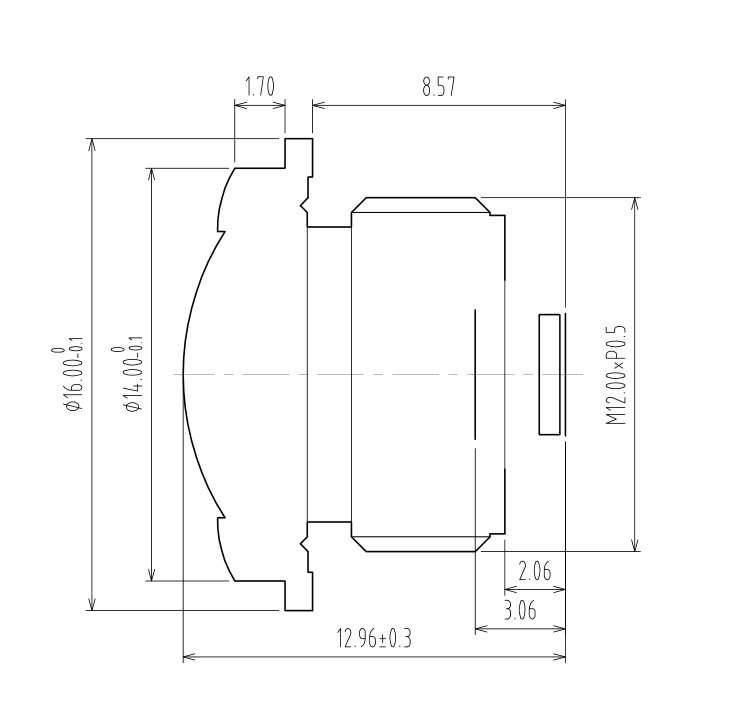

12, TTL: 12.96mm

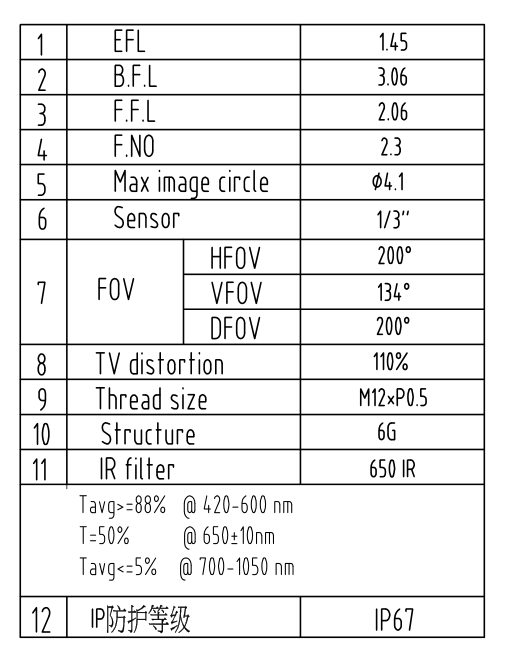

technical datasheet of Ultra Fisheye lenses
Product Application
Lens for car surround view camera lens
Lens for automotive SVS lens (round view camera lense)
Lens for VR/AR 360 panoramic camera
Lens for fisheye projector
lens for 360° panoramic surveillance camera
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
Custom Design Camera Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China. Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5,CS Mount, C mount, F mount Industrial Camera Lenses too
welcome to share your lens requirement or product idea with us to discuss and proceed, thank you very much
