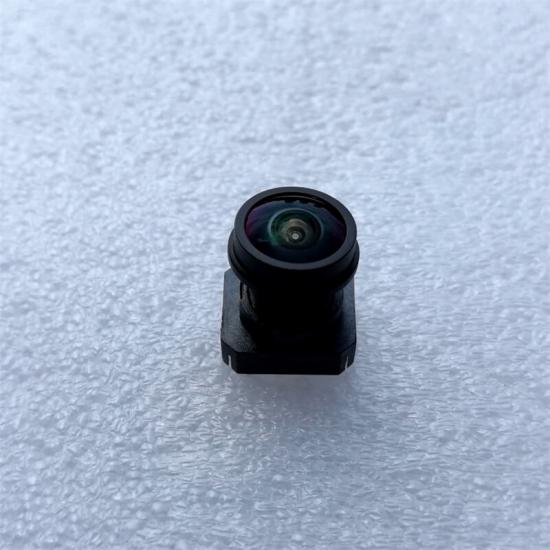

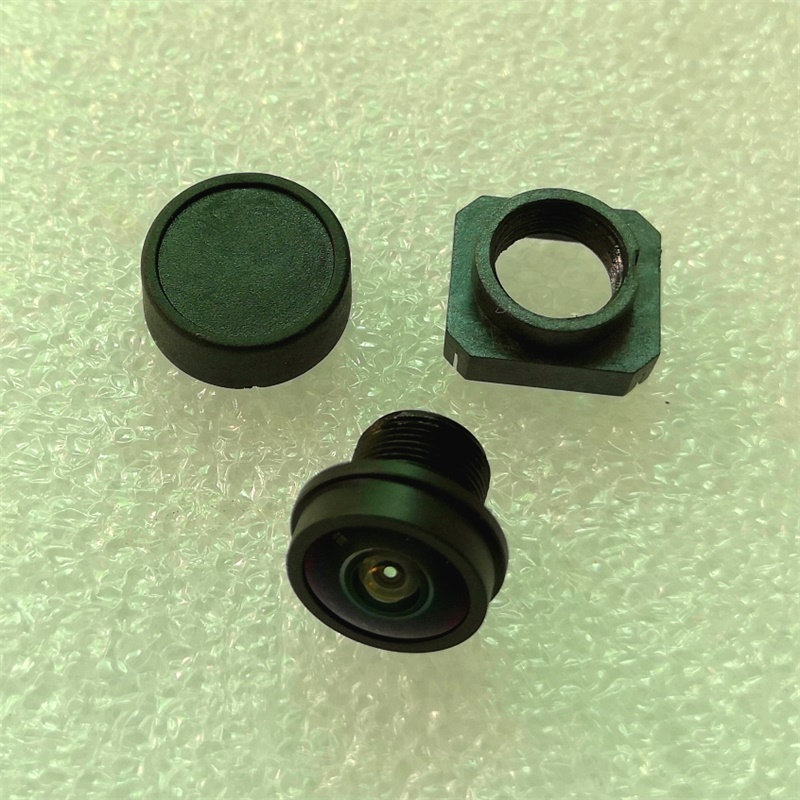

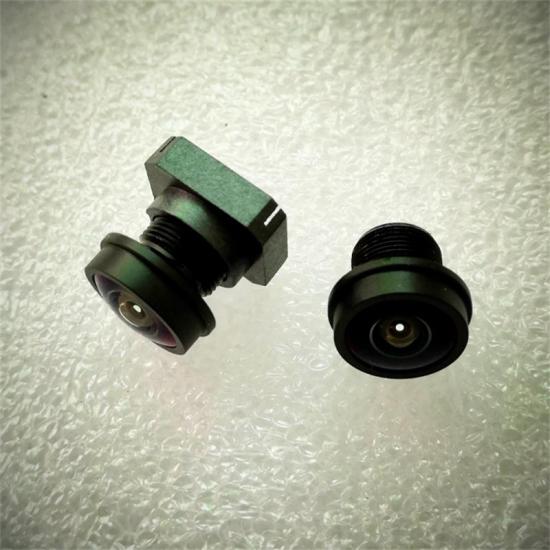

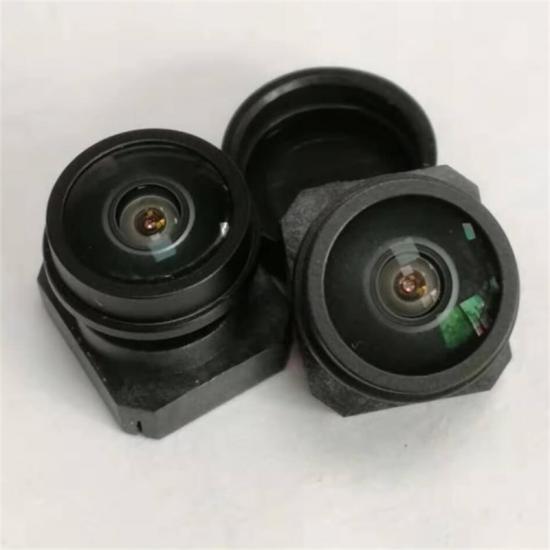

Product Name: IP68 1.45mm m8 HFOV 200 degree super fisheye car reversing lens
Product advantage
1， 200 degree M8 Fisheye car parking Lens
2, 200 degree ideal for car around view camera lens
3, M8 Small Fisheye Lens for projector
4, IP67 waterproof Lenses used for outdoor cctv smart home camera
Product Specification
Technical feature of 1.45mm M8 Car Parking Lens
1,Effect Focal Length: 1.45mm
2,Back Focal Length: 3.06mm
3,Flange.Focal.Length: 2.06mm
4,Aperture F/NO: 2.3
5,Matching Sensor: 1/3"
6,max image circle 4.1
7,HFOV: 200°
V FOV: 134°
D FOV: 200°
8,TV distortion: 110%
9,Thread size: M8xP0.35
10,Lens Structure: 6G
11,IR filter: 650IR
12,Waterproof grade: IP67
T avg>=88% @420-600nm
T=50% ①650±10mm
T avg<=5% @700-1050nm
13,TTL: 12.87mm

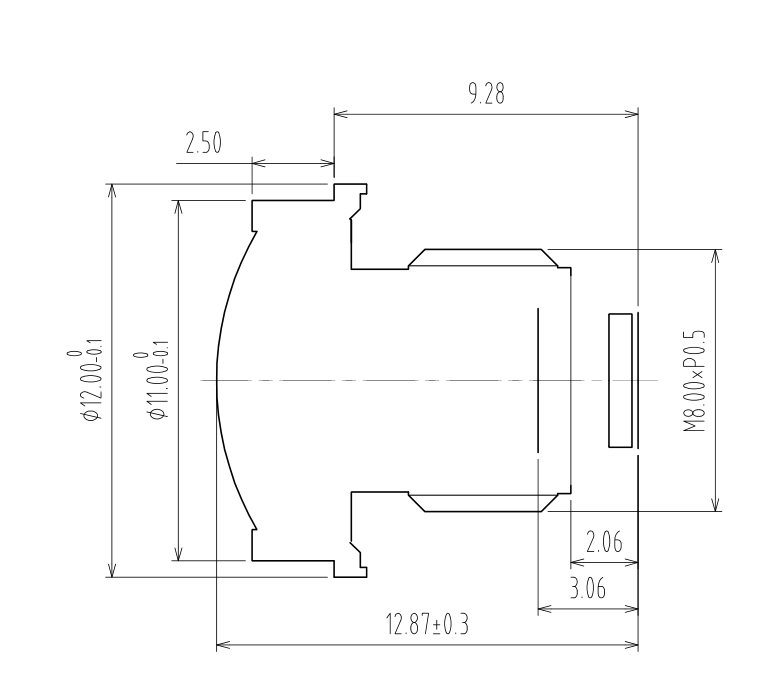

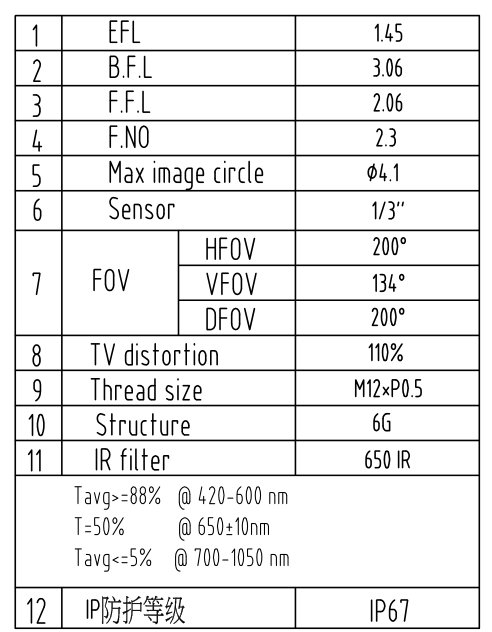

Technical Datasheet of Waterproof 1/3 Fisheye Lenses M8
Product Application
Lens for car surround view camera lens
Lens for automotive front and rearview camera
Lens for VR/AR 360 panoramic camera
Lens for fisheye projector
lens for 360 panoramic surveillance camera
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China
Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens , Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera
their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too. welcome to share your lens requirement or product idea with us to discuss and proceed
thank you very much
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
