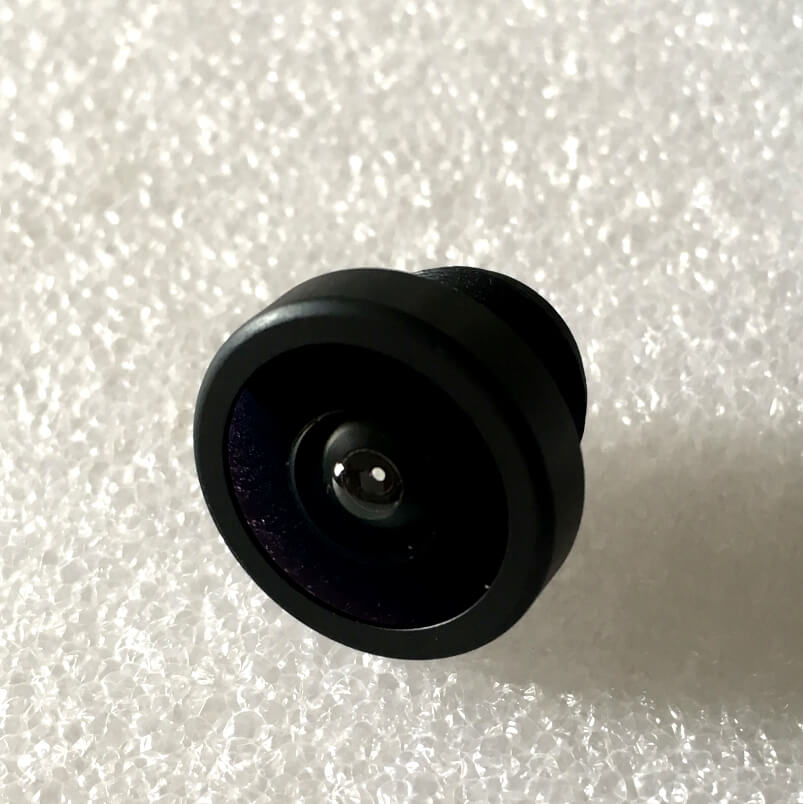

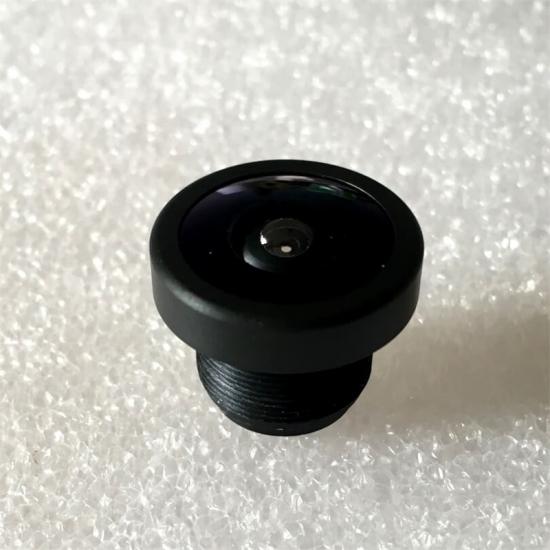

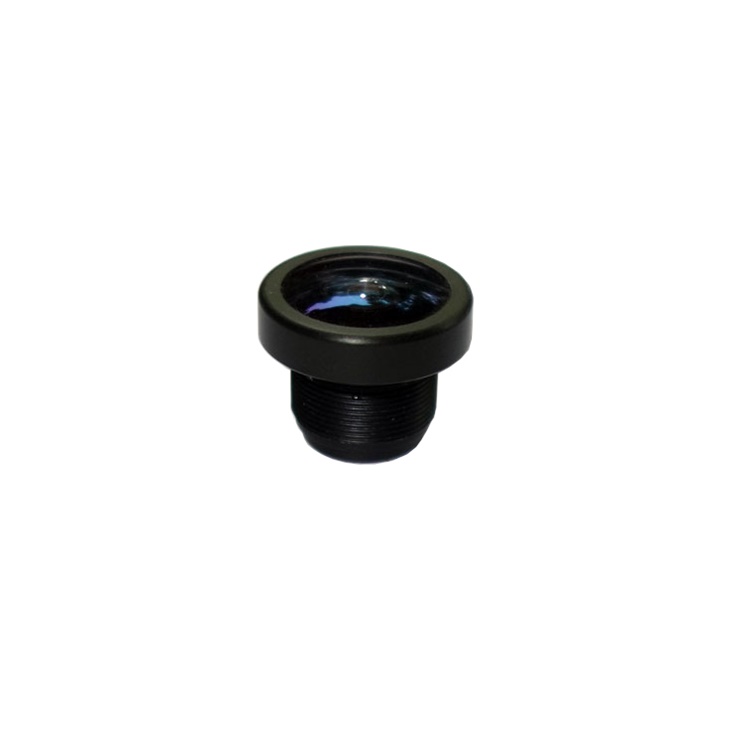

Product name: 1.39mm M12 cctv fisheye lens 185 degree 5MP used for 360 dash cam VR panoramic Camera
product advantage
1, All angle are super Fisheye 185 degree
2, Remove and correct unexpected spherical aberration by using asperical Lenses
3, barrel made of aluminum alloy raw material, surface oxidized, All black Design
4, Customized Fisheye Lens, we are professional Custom-made Lenses supplier in China
Product Specification
Technical feature of 1.39mm 185 degree Fisheye Lens
1、Matching Sensor：1/3" CMOS SENSOR
2、Focal Length：1.39+5%
3、Back Focal Length：4.05±5% (in air )
4、Flange back Length h：3.5±5%
5、F/NO：2.0±5%
6、Iris：Fixed
7、Field of view：185°/185°/185°
8、MTF Resolution： 5MP Fisheye Lenses
9、M.O.D：0.1 meter
10、Lens Construction ： 6 Component
11、Thread Size：M12XP0.5
12、Net weight: 6gram
13, TTL: 15.9mm
14, Diameter of Lens Cap: C20

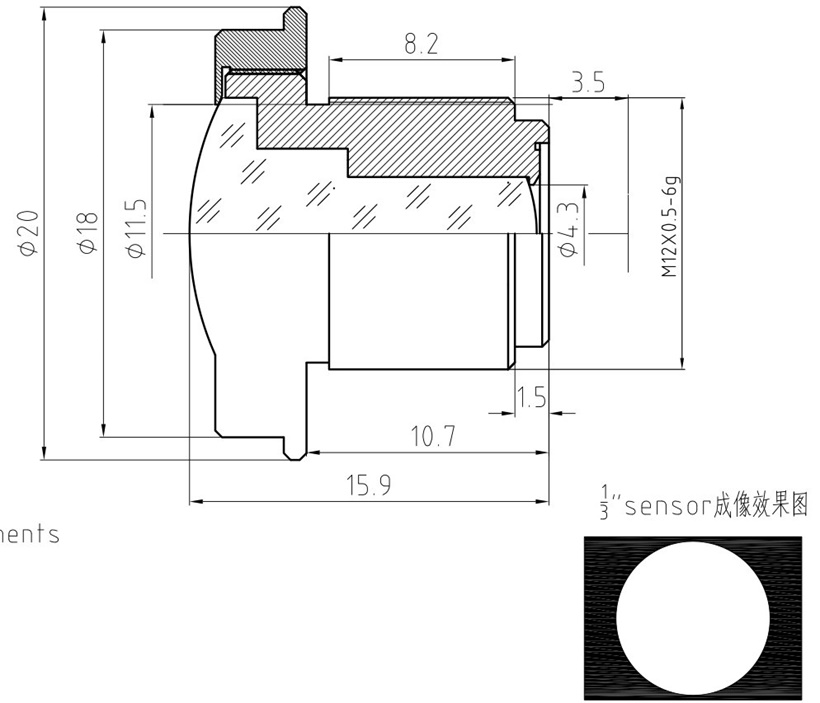

Technical datasheet of 185 degree Panoramic Fisheye Lens
Product Application
1，Lens for AR/VR
2, Lens for 360 panoramic camera
3, Lens for action camera
4, Lens for Projector
5, Lens for FPV/Drone Camera
6. Lens for Car 360 surround view Camera
Custom Fisheye Lens
Currently we have 0.95mm, 0.83mm, 1.00, 1.05, 1.2mm, 1.08mm, 1.3mm, 1.4mm, 1.44mm
1.39mm, 1.5mm, 1.7mm,1.78mm, 1.8mm, 2.1mm etc various short Focal Length Fiheye Lenses
with 170 / 178 / 175/ 180 /185 /190 / 195 /200 / 205 /210 / 220 / 230 degree
About us
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.
Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc. of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
