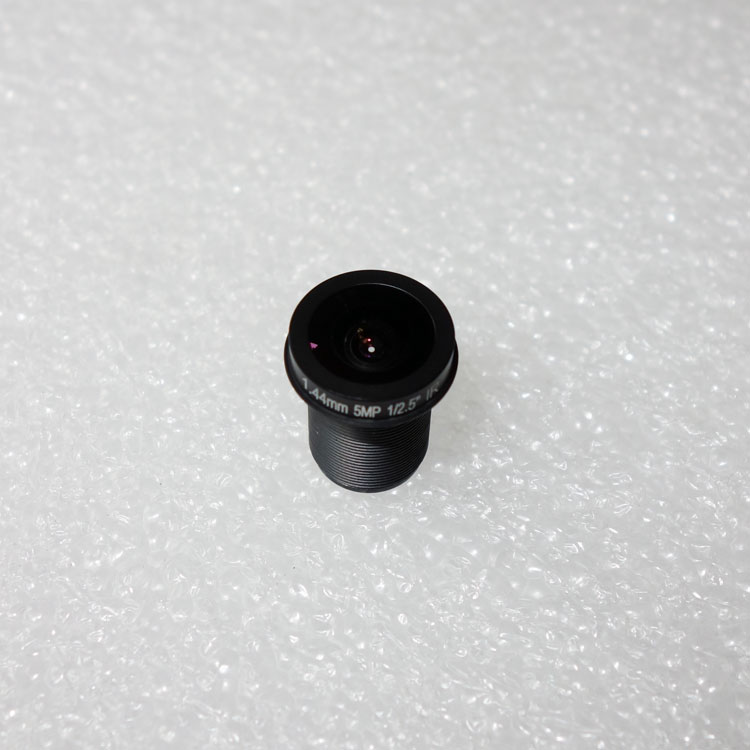

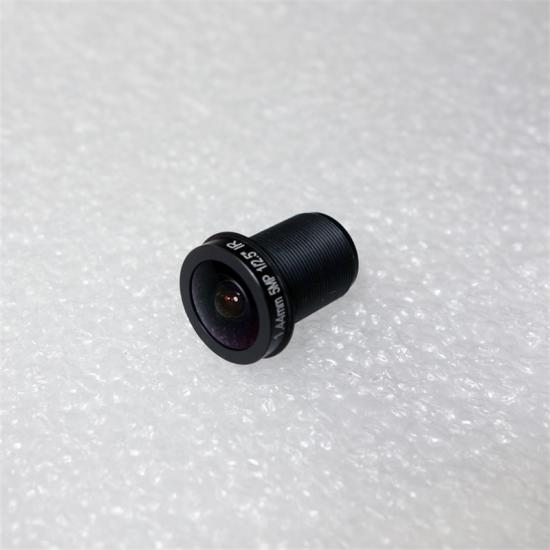

Product Name: Low Cost 1.44mm Short Focal Length Wide Angle Fisheye Lenses 180 degree
product advantage
1， work with 1/2.5， 1/2.7 cmos, All angle are 180 degree Fisheye
2, 180 Degrees Fisheye Lens For Security Camera and Car 360 surround view Camera
3, low cost, cheap price, 100% Made in China
Product Specification
Technical Feature of 360 Degree Fisheye Lens
1,Model No:NWA-14402-5MP
2, MTF Resolution: 5MP
3,Focal-Length: 1.44mm
4,Aperture F/No: F2.0
5,Mount Type: M12*P0.5
6,Image format: 1/2.5
7, FOV(D/H/V): 180 /180/180 degree
(1/2.5, 1/2.7 cmos sensor)
8, Optical Distortion: 1/2.5 cmos -45%
1/2.7'' cmos -45%, 1/3'' cmos 45%
9, OBFL: 4.57mm
10,MBFL: 4.35mm
11,IR Correction: Yes
12, Focus: Manual
13, Zoom：Fixed
14, M.O.D: 0.2Meter

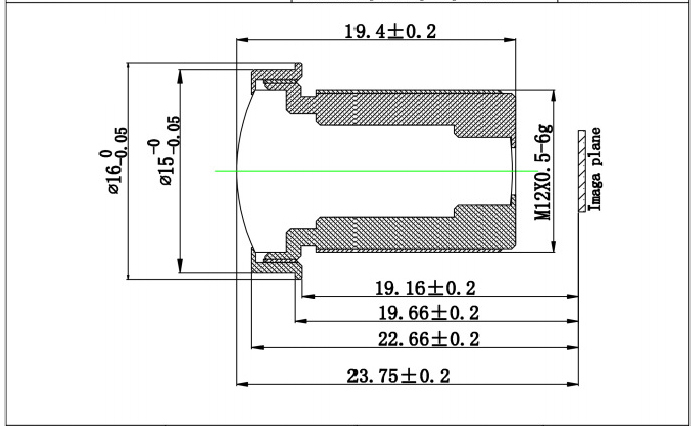

15, Dimension: ￠16*19.4mm
16, Net Weight: 5.4 gram
17, Operating Temperature: -20 to +70 degree
Product Application
1，Lens for AR/VR
2, Lens for 360 panoramic camera
3, Lens for action camera
4, Lens for Projector
5, Lens for FPV/Drone Camera
6. Lens for Car 360 surround view Camera
Custom Made Lenses
if you do not find anything meet your requirement on our online website,
welcome to inquiry or call us right now to discuss details regarding Custom camera Lens. Please show and tell us your exact requirement or demand needed of your Camera or related product device, we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you!
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
