Product Name: 180 degree Fisheye Lens Ultra Wide Angle FULL HD 1080P USB Cameras with 0.01 low lux good night vision
Product Advantage
1, Horizontal 180 degree Fisheye Image and Video, USB Fisheye Camera
2, 1080P FHD Video output and connect with any device with USB interface
3, 0.01Low lux, low light starlight Cmos sensor insure good night vision too
4, ODM DIY Fisheye Webcam with Interchangeable lens available design to
extend More various commercial and industrial Application too
5, Compact Mini Design, Free drive, Plug and play, Hands free filming
6, Can change into Type-C, USB Micro, AHD/BNC Analog Signal interface
Product Specifications Of 180 degree USB Cameras
Product Name |
Fisheye USB Camera |
Cmos Sensor |
OV2710 Sensor low lux 0.01 |
Video Resolution |
1920X1080, 1080P@30fps |
Lens FOV |
180 degree Super Fisheye Lens |
Photo Pixel |
3Megapixels |
Photo Format |
MJPG |
video output |
MJPG/YUY2 |
Lens Focal Length EFL |
1.5mm 180° Fisheye Lens |
Lens Construction |
6G+IR |
F/No Aperture |
F2.0 |
AGC |
OSD |
Minimum illumination |
0.01 LUX |
S/N Ratio |
≥52dB |
Gammar |
0.45 |
Backlight Compensation |
OSD |
Shutter |
30f/s |
White balance |
Auto |
Working temperature |
-10~+50℃ |
Power |
5V |
Audio Microphone |
Built in Microphone, Support |
System Sync |
internal |
Power consumption |
150mA |
Product Size |
15*15*10mm |
Signal Type & Interface |
usb 2.0 interface, digital Signal |
Length of Cable |
3 Meter (standard)1m or other size available |
System |
WIN10/WIN7/WIN8/Linux/Android/Apple Mac |

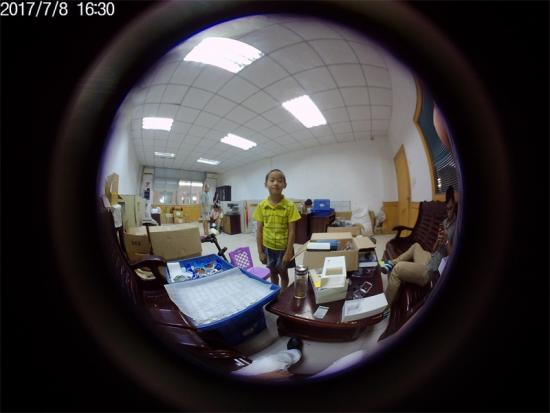

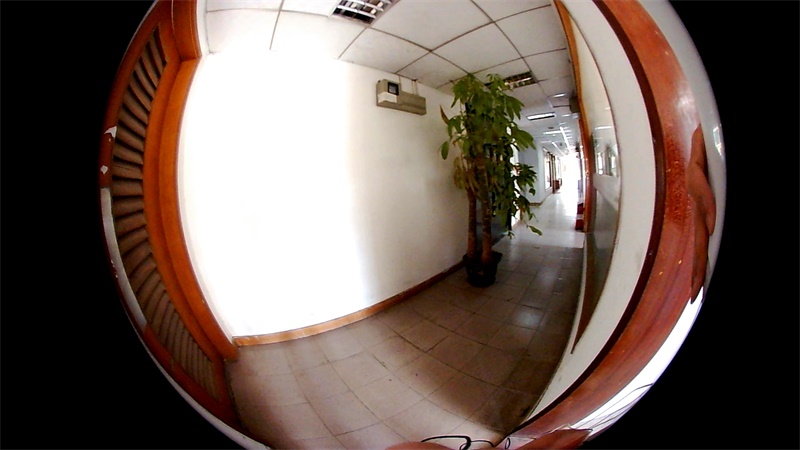

Actual Image/video screenshot of Fisheye Lens Usb Webcam
Note & Remarks
1, You can change our other focal length M12 board lens include but not only 3.7mm pinhole, 2.1mm wide angle,
2.8mm wide angle, 16mm Telephoto, 25mm Telephoto, 5MP CCTV Lens, Low distortion Lens, No distortion Lens,
220 degree Ultra Fisheye Lens, Black light F1.0 Lens, 4mm/6mm/8mm CCTV lens, Pinhole Lens and button Lens etc
to meet your special requirement of projects
2, We can change standard USB cable into foldable adjustable Pipe (shorter length)
3, its Interface connector can be changed or custom by USB Micro, BNC/AHD, OTG Type C etc
4, You are kindly advised to equip 3-4 various focal length Lens to meet various application together in your order,
then you can interchange various lens freely locally, no need buy more cameras more at higher cost again

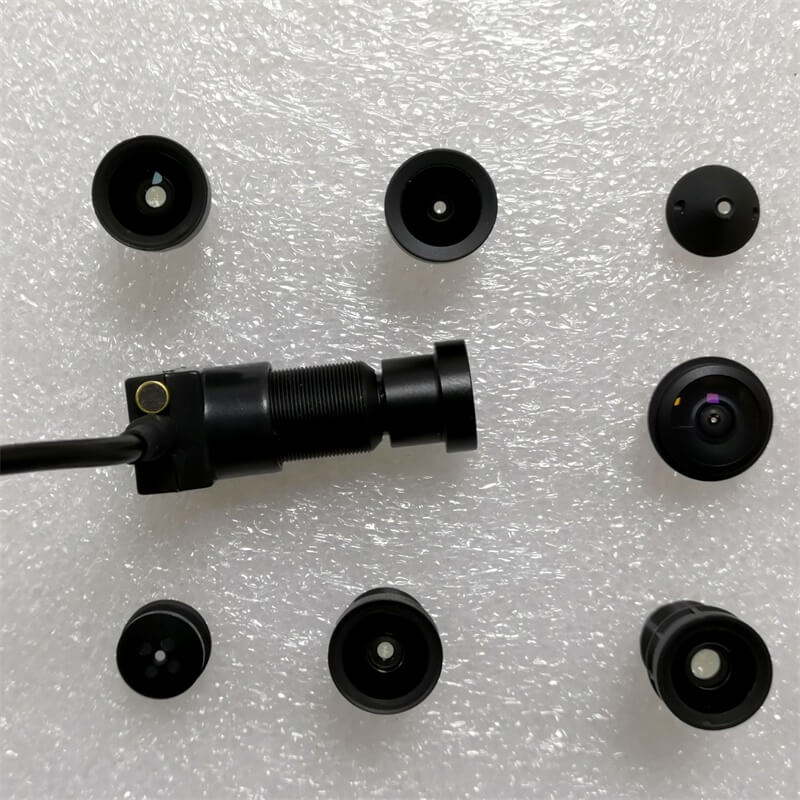

You can DIY change following various focal length M12 Lens to effect multi-function and various applications to save cost
Product Application
1. 360 Degree Monitor industrial Equipments/machines/device (Machine Vision)
2. 360 Panoramic Airplane Security, 360 degree Gas station Security,360 Farm monitoring, Forest Monitoring,
Dangerous environmental monitoring, etc.
3. Wide Angle USB Security Camera, warehouse CCTV, Car Parking Security
4. automobile Industry, Vehicle video applications
OEM/ODM Custom-Made USB Cameras
Currently we can provide more than 10 models USB Camera for various commercial / industrial applications, our camera with DIY interchangeable Lens design, so you can choose and change our other optical lens models online to meet your special requirement for more projects or business.In addition, we can R&D more advanced 4K USB Cameras or other bigger size Cmos sensor or other OV or Sony Cmos USB Camera ( other interface connectors available) , welcome to tell us more details then discuss together
P.S. We supply Sony CCD Camera and OTG Camera for Andriod Phone too
