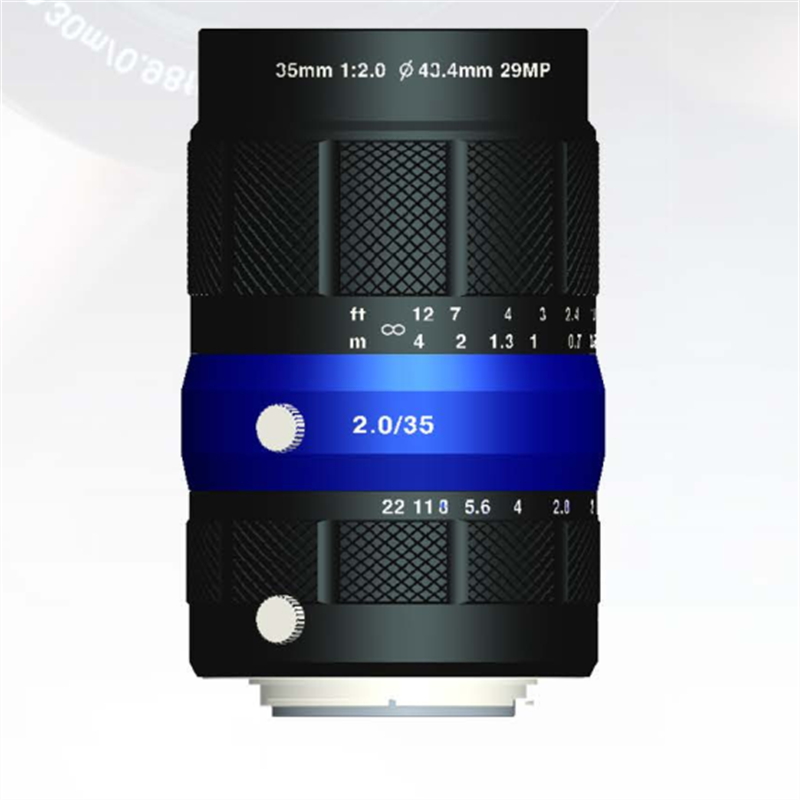

Product Name: Ultra 4K 29MP Manual Variable Iris 35mm Full Frame Lens
Product advantage:
1, Variable Aperture LensFrom Large aperture F2.0 to Smallest F22 (creat good depth of Focus)
2,Multi-layer coating, All glass + metal structure design, good high and low temperature resistance
3, Applied For 35mm FULL FRAME, ARS-C, APS-H F-Mount Nikon Digital Camera
4, we have 35mm Full frame C-Mount Lens For Top Quality Machine Vision Camera systems too
Product technical Specification of 35mm Lens F Mount
|
Product Model |
NWA-35F-35mm |
|
Image Cmos Sensor Format |
35mm Full Frame (43.4mm)/35F |
|
Photo Resolution |
29MP |
|
Focal Length |
35mm |
|
Aperture |
F2.0-F22 |
|
FOV(D×H×V) 35mm (Full Frame) |
63.4*54.5*37.42 |
|
FOV(D×H×V) APS-H |
47.6*43*23 |
|
FOV(D×H×V) ARS-C |
43.2*34.2*24 |
|
FOV(D×H×V) 4/3'' |
35*28.5*21.6 |
|
TV Distortion 35mm (Full Frame) |
-2.76%@y=21.7mm |
|
TV Distortion APS-H |
-1.74%@y=15.6mm |
|
TV Distortion ARS-C |
-1.45%@y=14.0mm |
|
TV Distortion 4/3'' |
-1%@y=11.2mm |
|
Focusing Range MOD (Minimum Object Distance) |
0.4m-∞ |
|
Flange Distance |
46.5mm |
|
Operation Mode- Focus |
Manual |
|
Operation Mode –Iris |
Manual |
|
Operation Mode-zoom |
Fixed Focus |
|
Mount type |
F-mount |
|
Filter Thread |
/ |
|
External Dimensions(mm): |
/ |
|
Structure |
All Glasses Lenses |
|
Working temperature |
-20℃～+60℃ |
|
Storage Temperature Range |
-20℃～+60℃ |
29MP Camera Lens For Commercial and Industrial Applications
1, Nikon F-mount Digital Camera, DSLR Camera, All Cameras with F-Mount
2. Teaching and research, FA Lenses For Industrial Inspection and Image Processing.
3. Industrial image processing, industrial measurement, industrial monitoring, instrumentation, microscopic imaging,
4. Electronic component measurement, glass and pharmaceutical container measurement
5. Security monitoring at night/day
6. Solar panels, aerospace, national defense, criminal investigation, military industry
7, Intelligent Transportation System ITS
8. Wafer inspection, scratch inspection on semiconductor, metal, glass, film, wafer and other surfaces
9.Detection of engraved characters on metal surfaces, bearings, and beverage cans
10. Factory automated production, PCB board inspection
11. Medical beauty, medical surgery
12. Biometric technology, face recognition
13. Drug production monitoring
14. Food sorting
15. Automotive, FPC, mining
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China,Currently we can Custom Camera Lens
include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens,
Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera, their specification
include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too。
welcome to share your lens requirement or product idea with us to discuss and proceed， thank you very much
