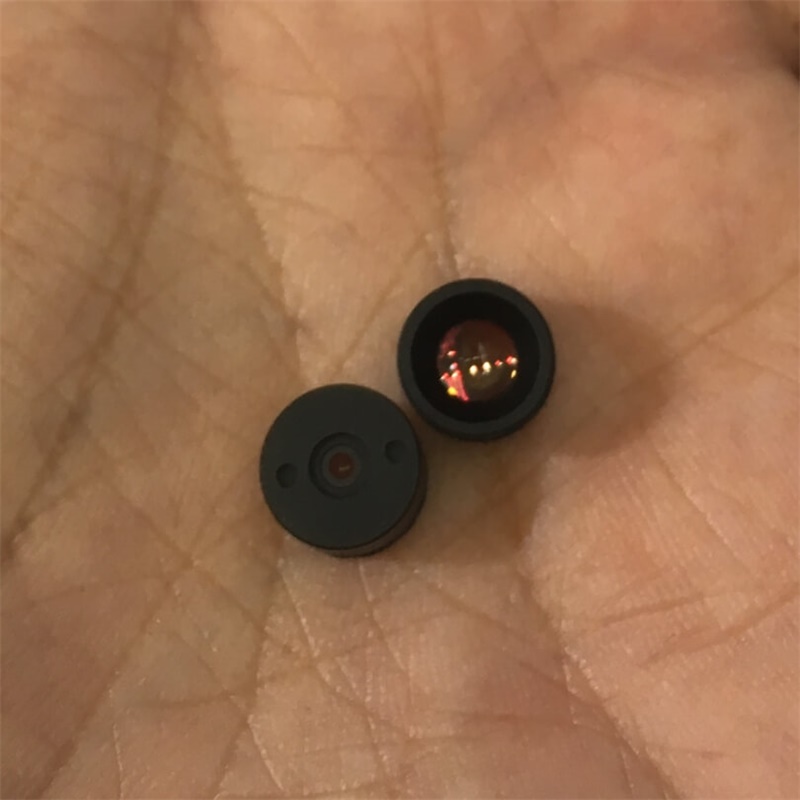

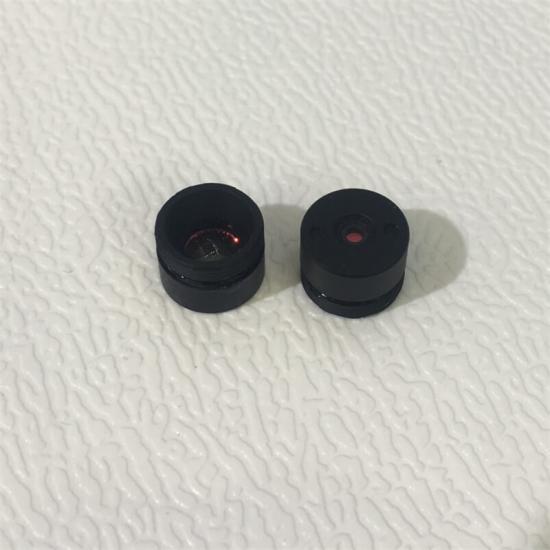

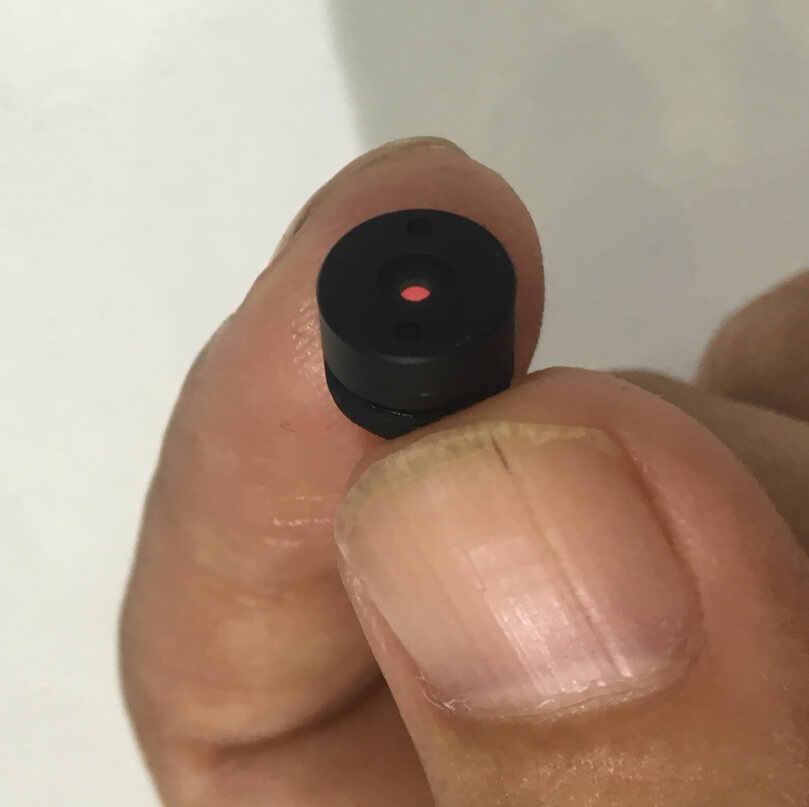

Product Name: 1/2.7'' 5.5mm m8 Mini Lens custom car side view lens HFOV 54 degree, custom automotive lenses
Product Advantage
1, 8.1mm very short TTL Lens Compact Construction
2, IR-Correction for Day and Night Security Surveillance
3,Used in Board Camera, MTV Lens, Cmos Board Module etc
4,Widely used in multiple field ( see as following)

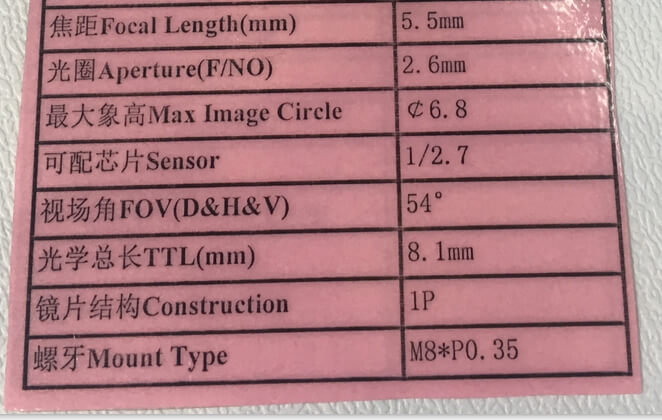

Product Specification
keying technical feature of 5.5mm m8 lenese
1，TTL: 8.1mm
2, EFFECT Focal length: 5.5mm
3, Aperture F/No: 2.6
4, matching cmos sensor: 1/2.7"
5, Mechnical Back Focal Length
6, FOV (D/H/V): 54 degree DFOV
7, mount type: M8*P0.35
8, Lens construction:1P
9, IR Coating: T=50%@650+/-8nm
10, working temperature: -40 to +80 degree
11, storage temperature: -40 to +90 degree
12, ultraviolet-proof standard: 500w@72H
5.5mm m8 Lens Product Application
1，Lens for Mini Video Camera
2, Lens for consume electronics product
3, Lens for Car camera Cabin
4, Lens for Mini recorder
5, Lens for car black box dual lens
Application of our goobuy lens
1. Automotive side view lens, SVS lens, reversing lens, surround view lens, ADAS camera, front view lens,E-mirror lens，
backup camera lens etc
2. Lens for automobile camera, Car recorder lens, Car DVR lens, Car Black Box lens, car dash camera lens
3. CCTV camera lens, security camera lens, IP camera lens, PTZ camera
4. Aerial Photograph drone lens, Police DVR camera,body worn camera, VR panoramic camera
5. Smart home Doorbell, lens for face recognition, lens for robot, gopro lens, action camera lens,
DJI osmo pocket wide angle lens
6. 2D/3D barcode Scanner, dental camera lens, document scanner, medical endoscope lens.
7, video conferencing camera lens
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers
that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
