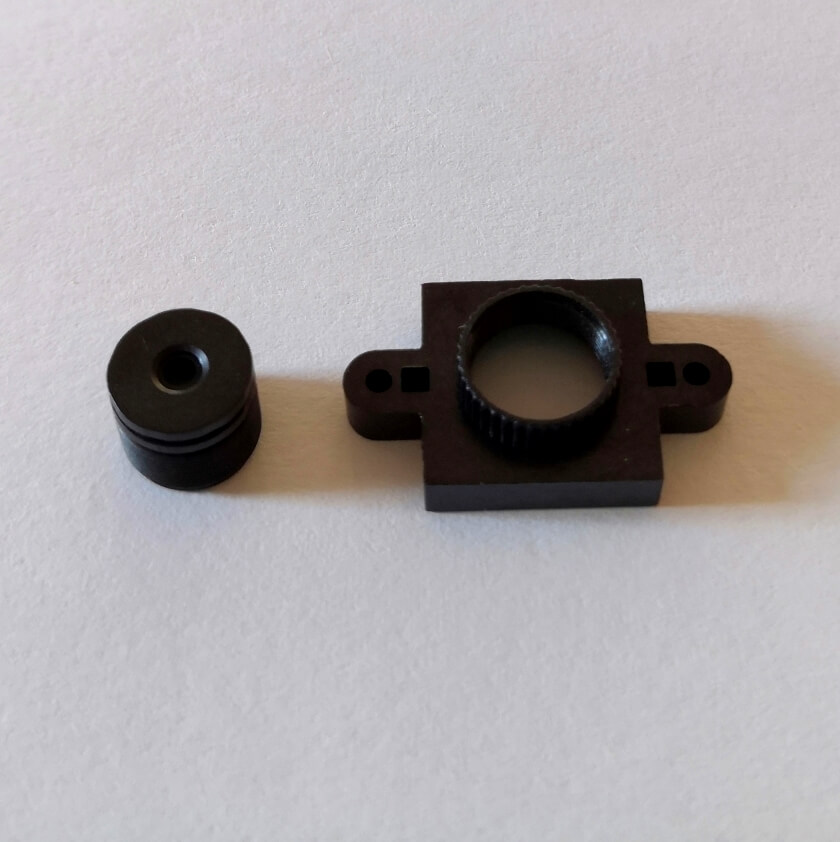

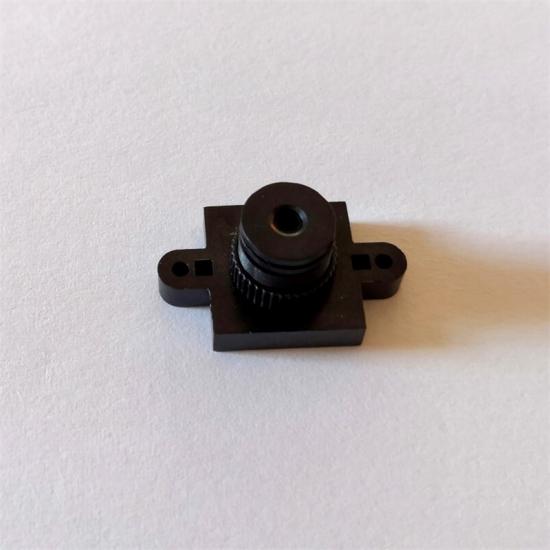

Product Name: 2.4% Low distortion Lens for CCTV Face Recognition Camera
Product advantage
1, 1080P CCTV Low Distortion Lens
2, Compact structure, excellent optical performance
3, used as lens for high-speed photographic apparatus
4, portable document scanner lenses
Product Specification
Technical Feature of 4.4mm CCTV Low Distortion Lens
1, Matching Sensor Size: 1/2.7''
2, TTL (Total Track Length): 7.8mm(+/-0.15mm)
3, Focal Length EFL: 4.4mm
4, Aperture F/No (Infinite): 2.4+/-5%
5, Max Image Circle: 6.9mm
6, Flange back Length: 1.0mm
7, Field of View (D/H/V) D 76/ H 68 / V 39 degree
8, TV Distortion -2.4%
9, Wavelength 400-700nm
10, Mount type: M8*P0.35
11, Lens Constructure 1G3P
12, MTF Resolution: 2MP
13, Working Temperare: -40 to +80 degree
14, Size of Lens holder: 8*8mm

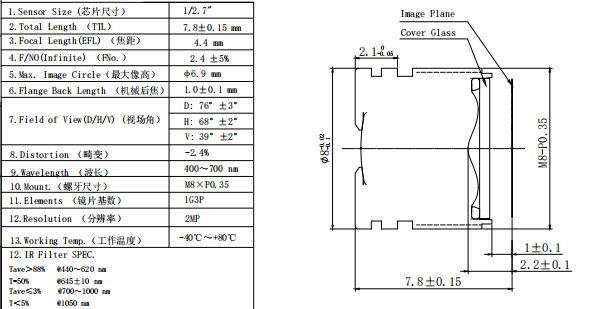

Technical datasheet of 1080P M8 Non/Low distortion Lens
Product Application
1, Lens for Face Recognition Camera Module
2, Lens for Wifi video door Phone
3, Lens for Face reader
4, Lens for Document Scanner no distortion
5, Lens for high-speed photographic apparatus
Plastic Lens Manufacturing Process
1, Plastic Resin - 2, Injection Molding- 3, Cutting - 4, AR Coating
- 5, Lens Assembly- 6, Projection ( Resolution power test)- 7. QC- 8. Packing
