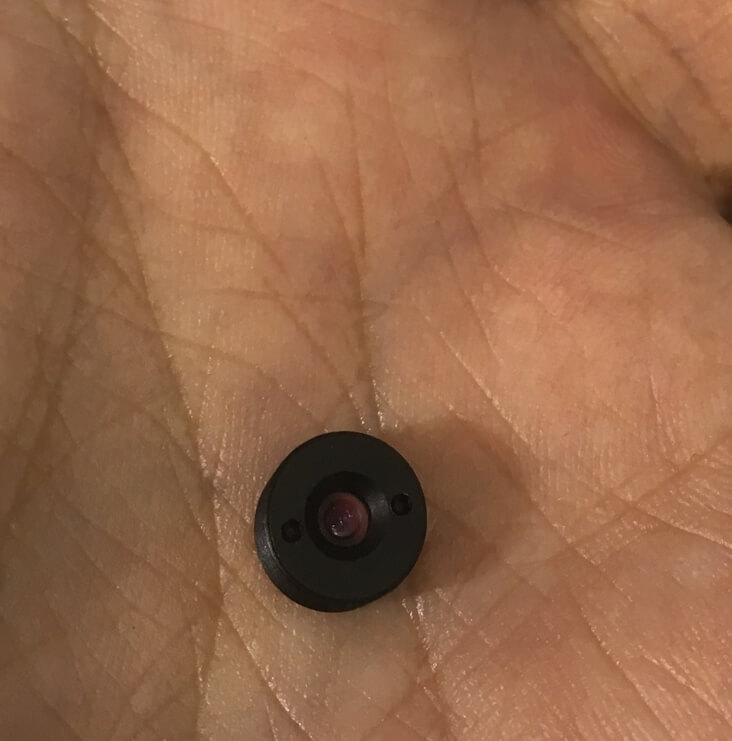

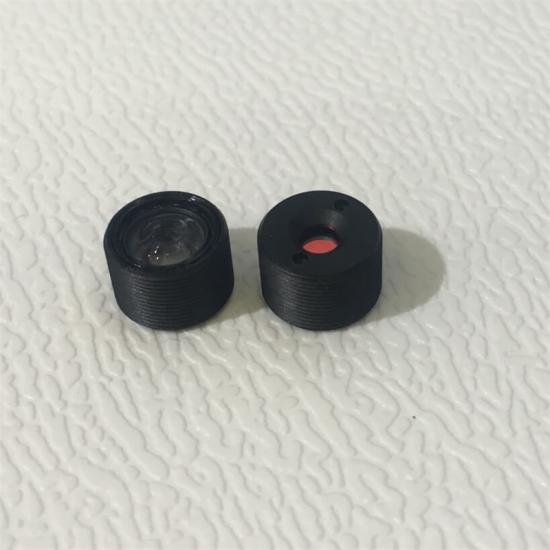

Product Name: 1/2.7'' 4P 4.6mm less 1.5% low distortion m8 mini lens for face recognition camera and face reader
Product Advantage
1, less than -1.5% Distortionless Lens
2, No Distortion Lens M8 for Face Reader Module
3, CE and RoHS Approval, ODM or Custom made Lenses available
4, IR-Correction for Day and Night Security Surveillance
Product Specification
keying technical feature of 4.6mm m8 zero distortion lens
1，TTL: 8.47mm
2, EFFECT Focal length: 4.6mm
3, Aperture F/No: 2.6
4, Optical Back Focal Length: 2.0mm
5, Mechnical Back Focal Length: 1.48mm
6, Max image circle: ￠6.85
7, FOV (D/H/V): 70.5/62.5/39.5 ( 1/2.9 OV2718)
8, Optical Distortion: <-1.5%
9, Relative illumination: >45%
10, CRA: <12 degree
11, mount type: M8*P0.35
12, Lens construction: 3G+1MG
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +100 degree
16, infrared defocused: <30um@650,850,940
17, Diameter of lens cover: ￠8

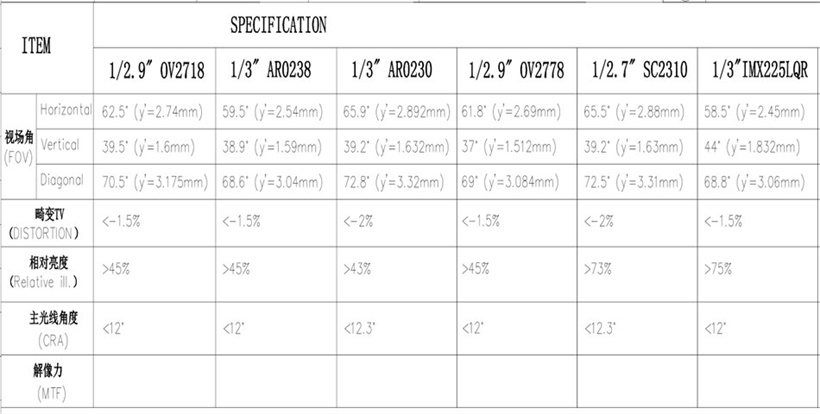

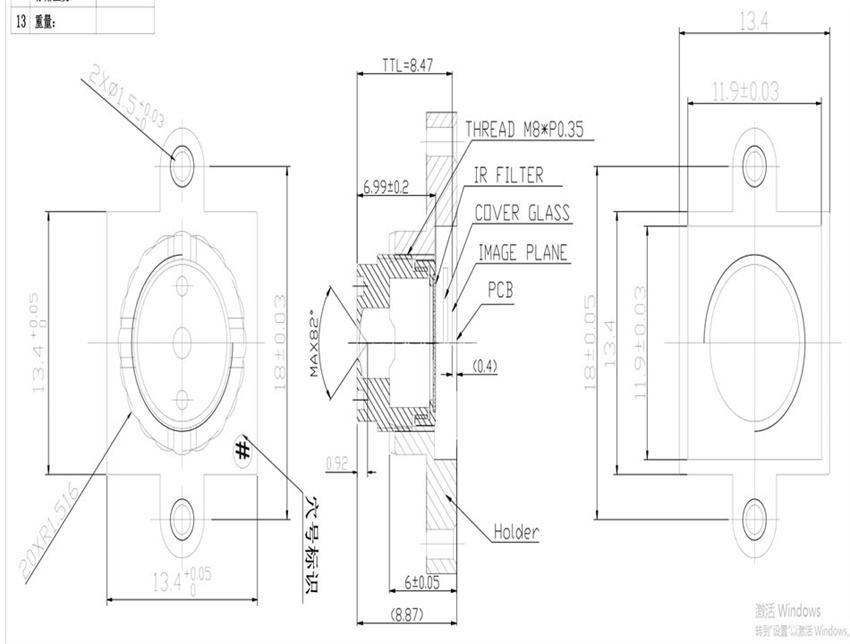

Technical datasheet of 4.6mm Low distortion Lens
Product Application
Lens for car front sensing view camera
Lens for automotive DMS camera
Lens for smart home camera
Lens for car side view camera
Lens for Robots Camera
Lens for Face reader camera No distortion
Custom Made Lenses
if you do not find anything meet your requirement on our online website,
welcome to inquiry or call us right now to discuss details regarding Custom camera Lens. Please show and tell us your exact requirement or demand needed of your Camera or related product device, we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you!
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
