1/2.7 4.3mm 1.3MP M8 Zero Distortion Lens

less than 0.5% optical Distortion Lens, M8 Camera Module

  • Item No.:

    M8-4.3mm-1.3MP
  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

    China
  • Goods stock:

    500
  • Min order:

    500
  • Product weight:

    1.5
  • Shipping port:

    Shenzhen
  • Lead Time:

    4 days
  • Keying selling point:

    Zero distortion Lens M8 compact Design
  • H.S.Code:

    90029090
  • MTF Resolution:

    1.3megapixels 720P HD

  • Product Detail

Product Name:720P HD 0.5% Optical distortion Camera Module Lens

Product Advantage

1, less than 0.5% No Distortion Lenses M8

2, work for Face Recognition Camera Module

3, 720P resolution good for Car Cabin Camera lens

4, work as any mini camera than need very low distortion

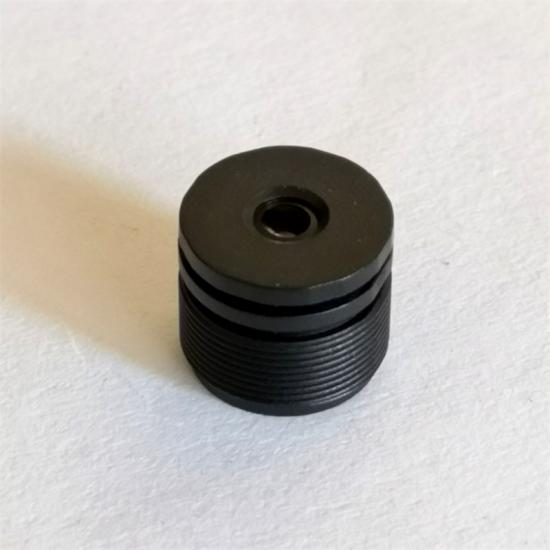

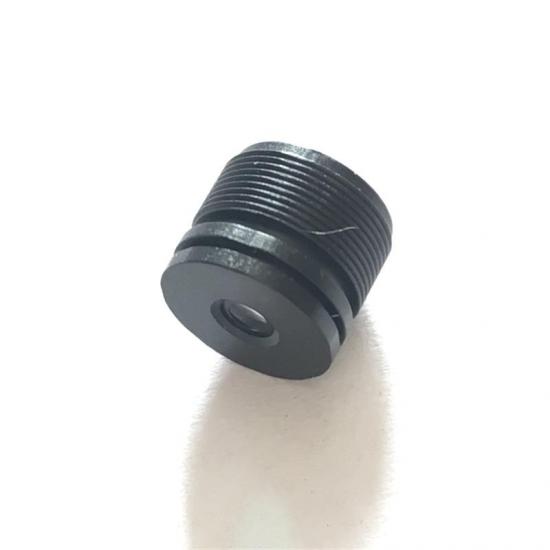

Low distortion Lens M8


Product Specification

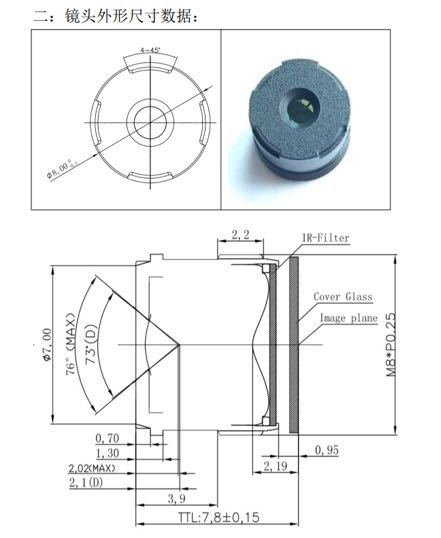

Technical Feature of M8 No distortion lenses

1, Effective Focal Length: 4.3mm±5%

2, Aperture F/No:F2.0±5%

3,Match CMOS: 1/2.7

4, FOV(D/H/V): 73°/65°/40°

5, TTL: 7.8mm±10%

6, MBFL: 0.95mm

7, MTF Resolution: 0.9>0.6@120LP/mm 1.3MP

8, Relative Illumination: 45%

9, CRA: 18 degree

10, Working Temperature: -20 degree to +80

11, Lens Constructure: 4P+IR

12, Optical Distortion: <0.5%

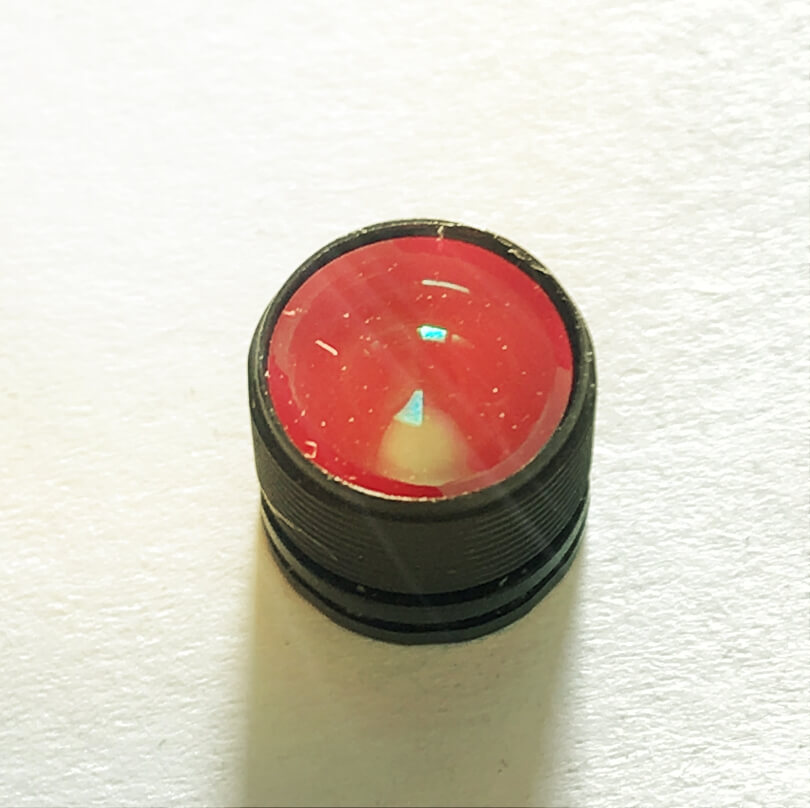

M8 Lens IR Filter

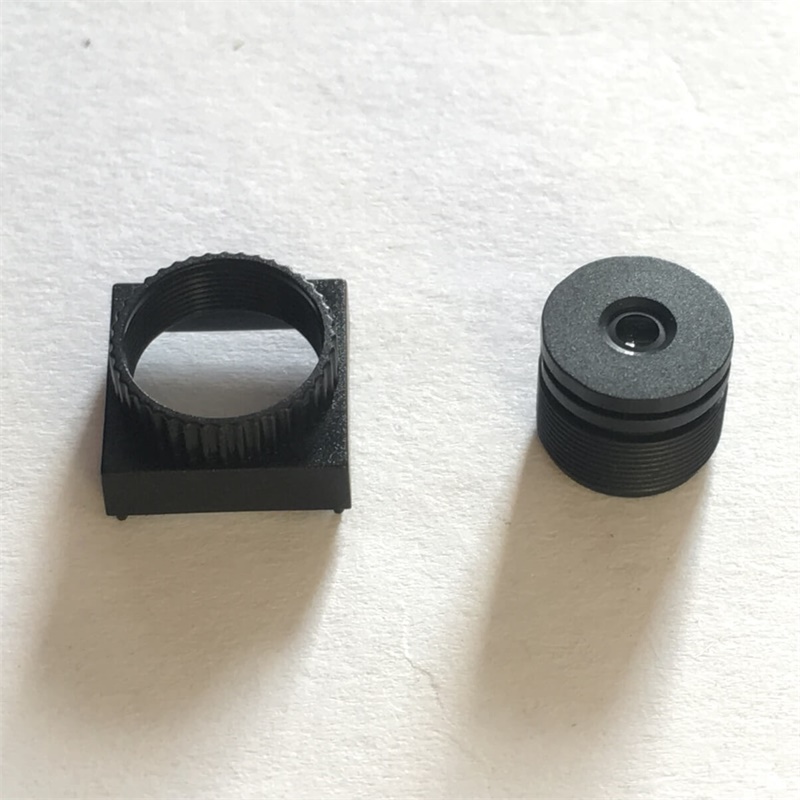

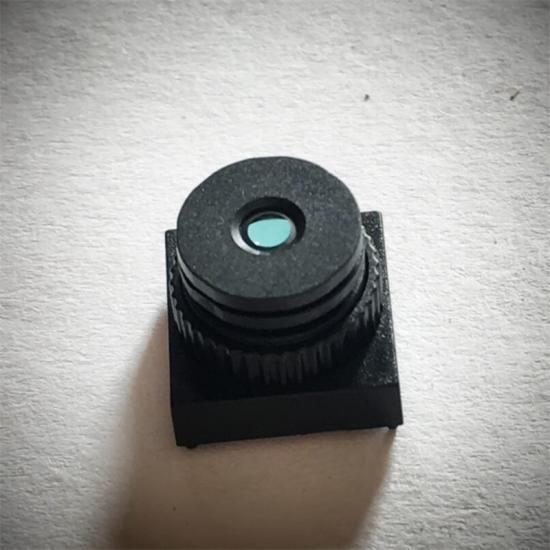

8mm Lens Holder

Product Application of 4.3mm M8 lens

1,Lens for Face recognition Camera

2, Lens for Document Scanner

3, Lens for portable handheld Scanner

4, Lens for Face reader

5, Lens for Car ADAS Camera, DMS Camera

6, Lens for Cabin Camera in Car


Application of goobuy lens

Lens for Video conferencing camera

Lens for high-speed photographic apparatus

Lens for face reader

Lens for document scanner, 2D/3D barcode scanner

Lens for VR panoramic camera

Lens for drone/robot/machine vision camera

Lens for cctv camera, IP camera,home security system, smart home camera, varifocal camera

Lens for video doorbell,intercoms,gate control

Lens for body worn camera, Police DVR

Lens for Action camera,sport DV, gopro, xiaoyi, DJI OSMO pocket, underwater camera

Lens for Car DVR, car black box, car dash camera

Lens for Car rearview camera, front view, surround view, ADAS, side view, in-car monitoring

Lens for mini hidden camera

Lens for medical endoscope camera, military, environment monitoring, aerospace
