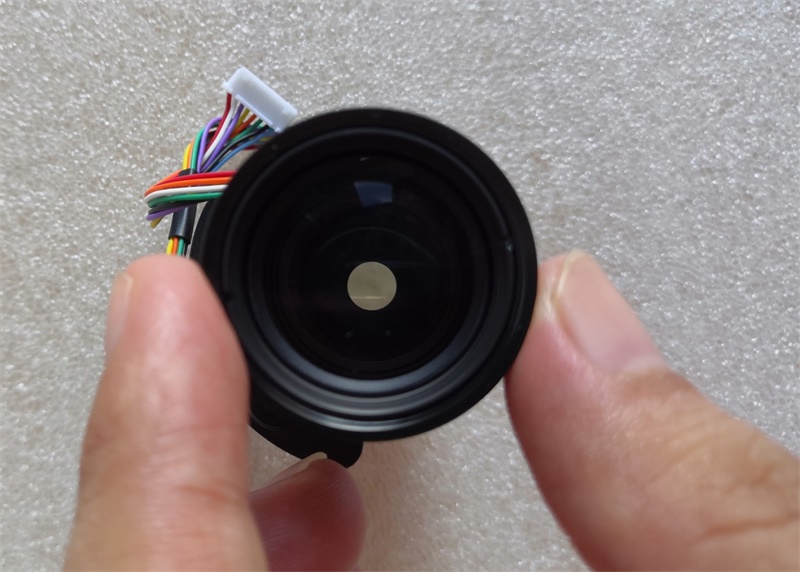

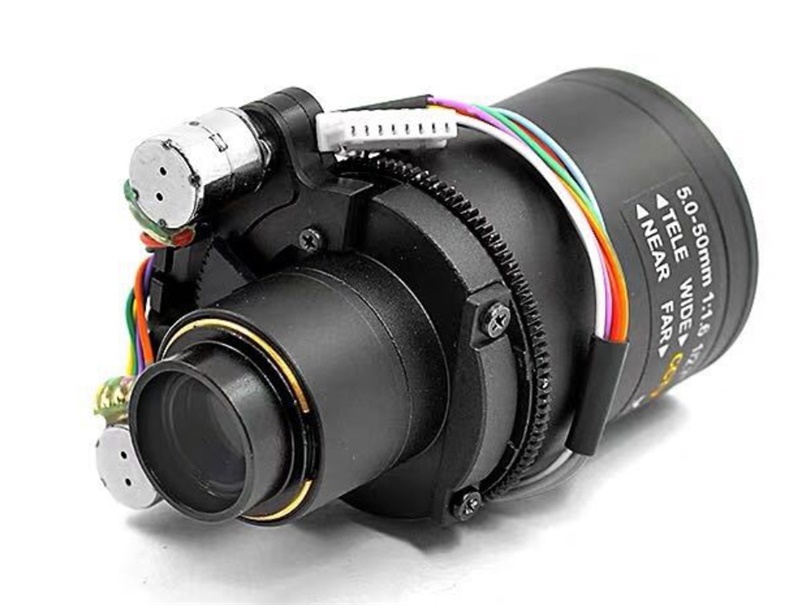

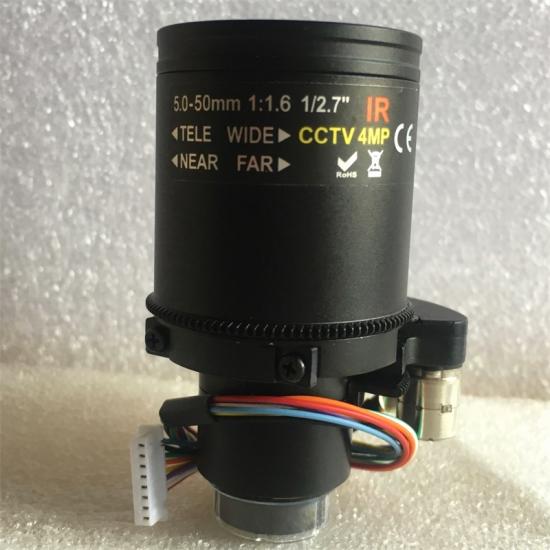

Product name: 5-50mm Variable Focal Length Lens auto focus D14 Mount stepping motor 4MP/2MP for cctv camera
Product Advantage:
1, 5-50mm 10X Optical Motorized Zoom Focus Lenses
2, support 1/2.7’’ 4MP/1080P Varifocal CCTV Camera
3, Remove and correct unexpected spherical aberration by using asperical Lenses
4, Low distortion, perfect sharp image, Full Glasses Lenses
Product Specification

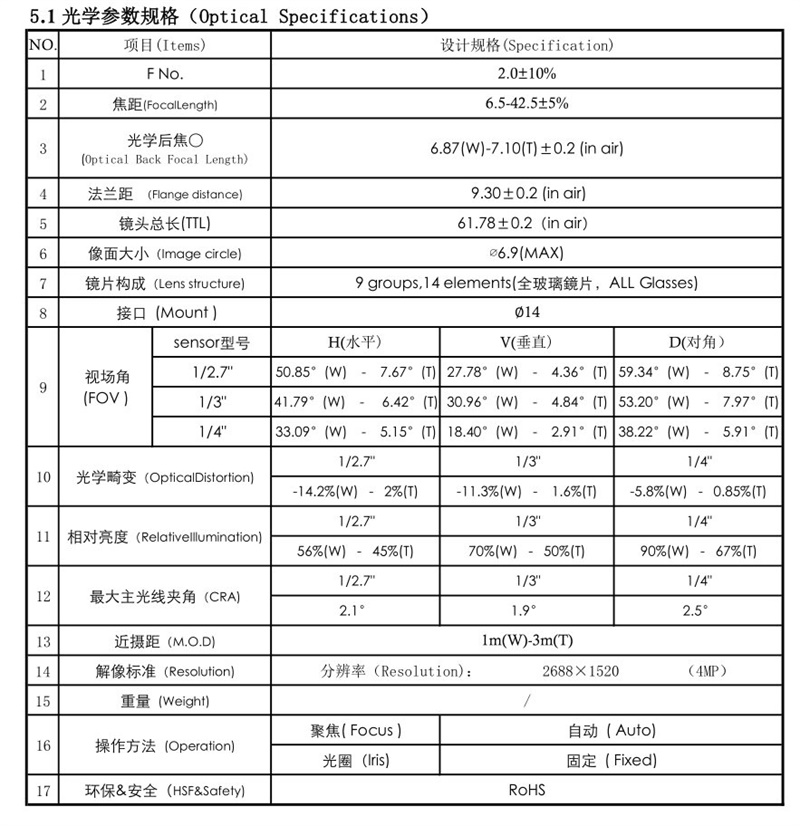

technical specification of 5-50mm motorised zoom lens 4MP D14 mount
1, Focal length: 6.5-42.5±5%
2, Aperture F/No: 2.0±10%
3, Optical back focal length (OBFL): 6.87(W)-7.10(T)±0.2 (in air)
4. Flange back focal length (MBFL): 9.30±0.2 (in air)
5. TTL: 61.78±0.2（in air）
6, Max image circle: ∅6.9(MAX)
7, Lens structure: 9 groups,14 elements(ALL Glasses)
8, Mount type: D14/M14
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V)1/2.7"
HFOV 50.85°(W) - 7.67°(T)
VFOV 27.78°(W) - 4.36°(T)
DFOV 59.34°(W) - 8.75°(T)
11, Optical Distortion 1/2.7"-14.2%(W) - 2%(T),
1/4"-5.8%(W) - 0.85%(T)
12, Relative illumination 1/2.7"56%(W) - 45%(T),
1/4"90%(W) - 67%(T)
13, CRA: 1/2.7"2.1°, 1/4"2.5°
14, M.O,D.: 1m(W)-3m(T)
15, MTF resolution 2688×1520 （4MP）
16, Zoom operation: step motor,
Focus operation: step motor,
Iris operation: Fixed
17, HSF&safety: RoHS
Technical datasheet of 5-50mm CCTV Motorized Varifocal Lens
Product Application
1, Varifocal CCTV Camera Lens
2, Mini High Speed Camera Lens
3, Outdoor PTZ Camera Lens
4, Varifocal IP Network Camera Lens
5, CCTV Dome Zoom Camera Lens
6，Vari-Focal Surveillance camera Lens
7, Night Vision Camera Lens, CCTV Night Cameras Lens
8, Motorized AHD Camera Lens
Custom Made Lenses
if you do not find anything meet your requirement on our online website,
welcome to inquiry or call us right now to discuss details regarding Custom camera Lens. Please show and tell us your exact requirement or demand needed of your Camera or related product device, we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you!
