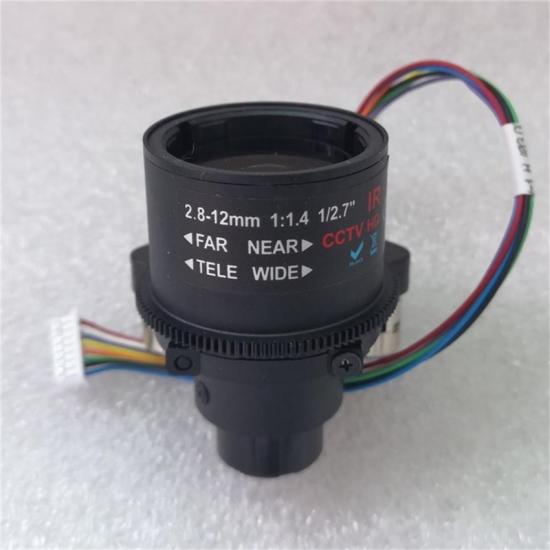

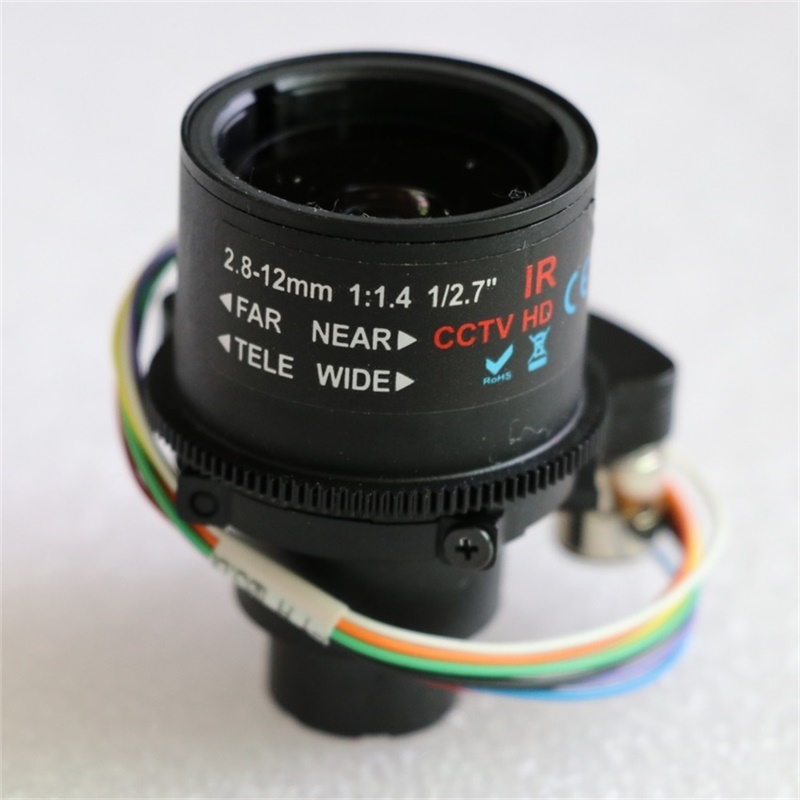

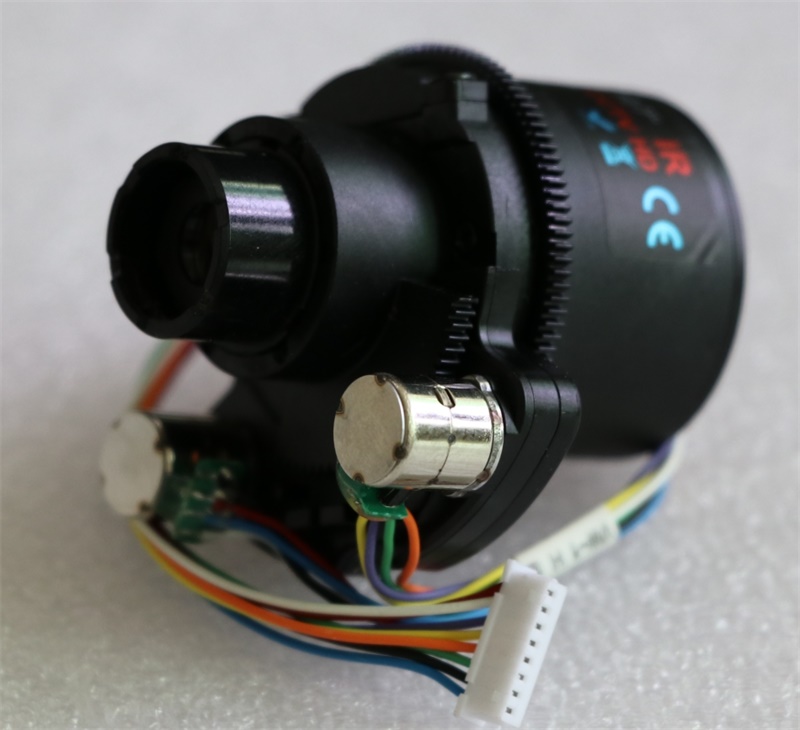

Product name：4X zoom 2MP 1/2.7'' D14 mount 2.8-12mm motorized varifocal cctv Camera Zoom Lens F1.4
Product Advantage:
1, Low cost motorized zoom Lenses in China，2.8 12mm Motorized Varifocal Lens
2, 2MP 1080P high resolution good for Varifocal IP Network Camera
3, Classical 2.8-12mm Lens 4X Optical Zoom by Stepper Motor drive
4, 2.8-12mm varifocal Lens work fine for mostly varifocal cctv camera
5, Produced by Fully Automated Lens Assembly Machines in dust-free working room
Product Specification

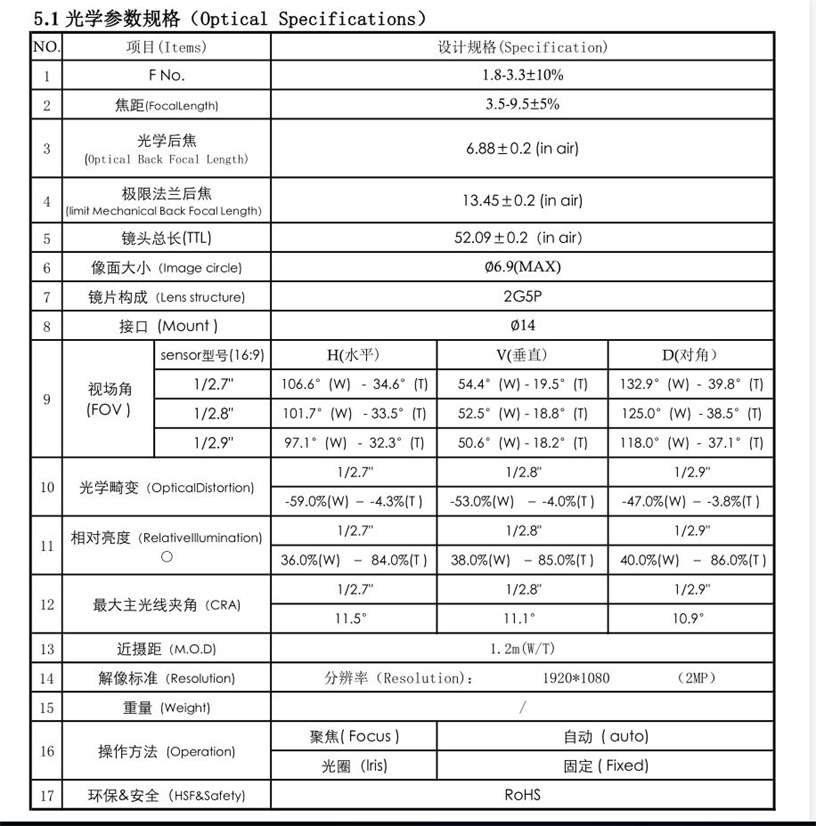

optical specification of auto focus control 2.8 12mm Motorized Varifocal Lens
1, Focal length：3.5-9.5±5%
2, Aperture F/No: 1.8-3.3±10%
3, Optical back focal length (OBFL): 6.88±0.2 (in air)
4. limit Mechanical Back Focal Length (MBFL):
13.45±0.2 (in air)
5. TTL: 52.09±0.2（in air）
6, Max image circle: ∅6.9(MAX)
7, Lens structure: 2G5P
8, Mount type: ∅14
9, Clamp Force: 0.7-0.8kgf-cm
Torsion of Front Structure 0.5-0.6kgf.cm
Torsion of Back Structure 0.5-0.6kgf.cm
10, FOV (D/H/V) 1/2.7"
HFOV 106.6°(W) - 34.6°(T)
VFOV 54.4°(W) - 19.5°(T)
DFOV 132.9°(W) - 39.8°(T)
11, Optical Distortion 1/2.7"-59.0%(W) ﹣ -4.3%(T ) ,
12, Relative illumination 1/2.7"36.0%(W) ﹣ 84.0%(T ) ,
13, CRA: 1/2.7"11.5°
14, M.O,D.: 1.2m(W/T)
15, MTF resolution: 1920*1080 （2MP）
16, Zoom operation: Auto,
Focus operation: Pre modulation,
Post focus, AF auto focusing
Iris operation: Fixed
17, HSF&safety: RoHS

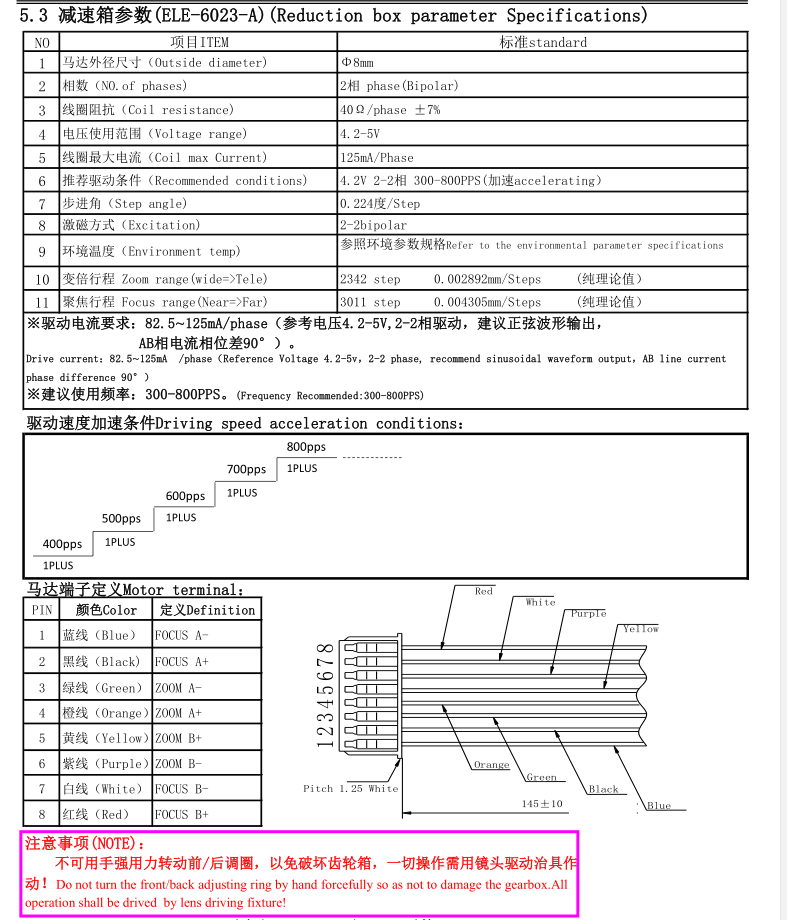

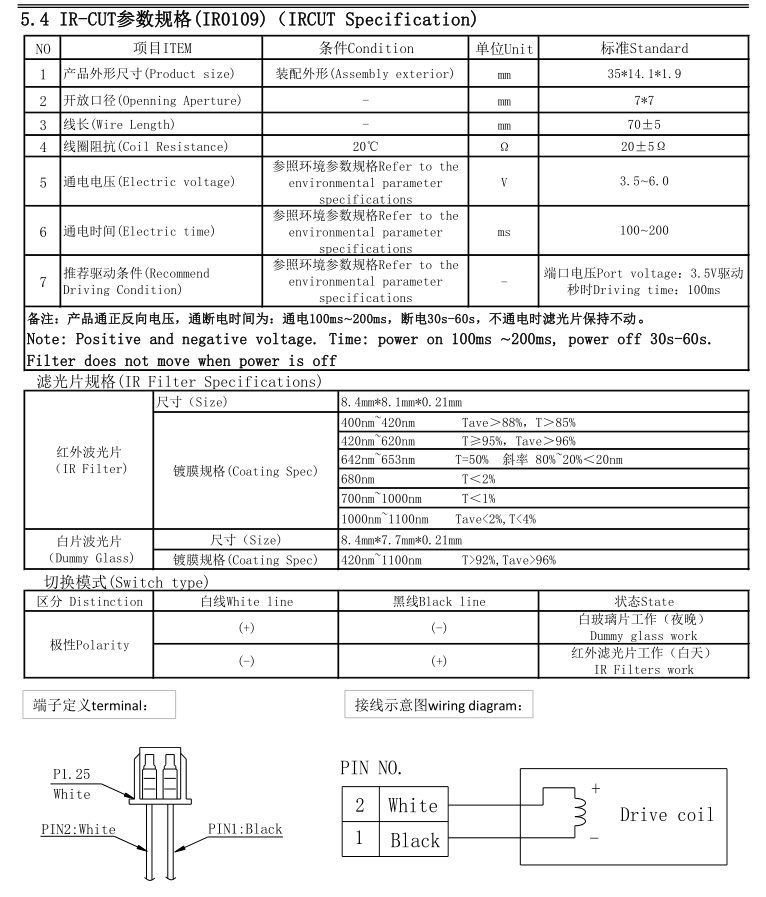

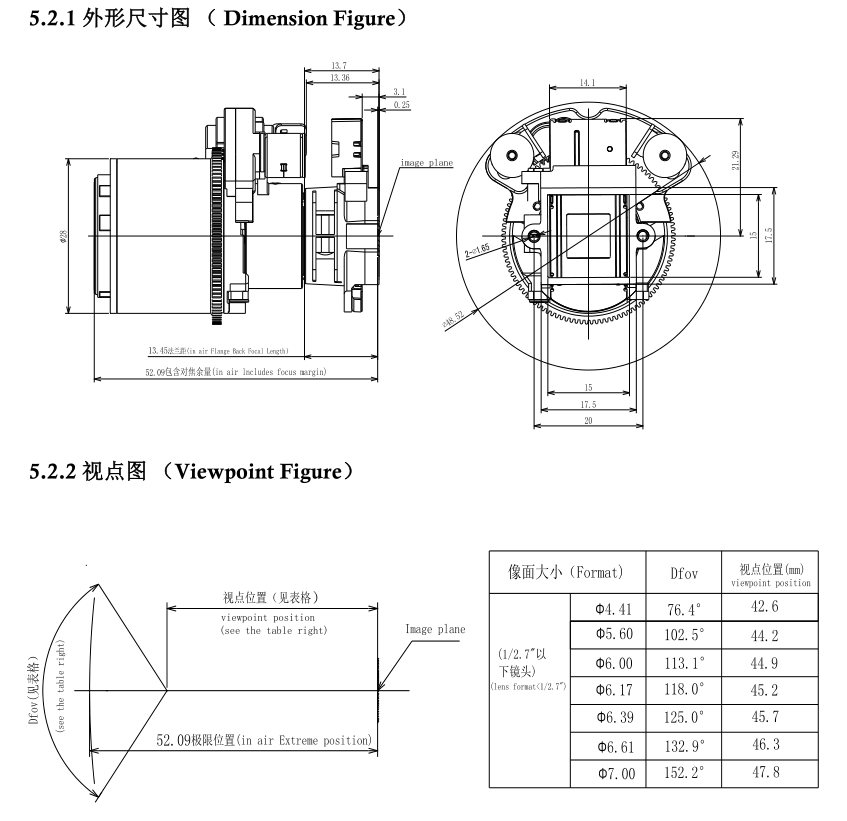

Technical datasheet of 2.8-12mm cctv Camera Zoom Lens
Product Application
1, 2.8-12mm Varifocal CCTV Camera Lens
2, Mini High Speed Camera Lens
3, Outdoor PTZ Camera Lens
4, 2.8-12mm Varifocal IP Network Camera Lens
5, CCTV Dome Zoom Camera Lens
6，Vari-Focal Surveillance camera Lens
7, Night Vision Camera Lens, CCTV Night Cameras Lens
8, Motorized AHD Camera Lens
Please Note: we have also manual focus 2.8-12mm Varifocal Lens CS Mount
please source " 1/2.5" CCTV 2.8-12mm 3MP" online our goobuylens website
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China. Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens
Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too
welcome to share your lens requirement or product idea with us to discuss and proceed. thank you very much
