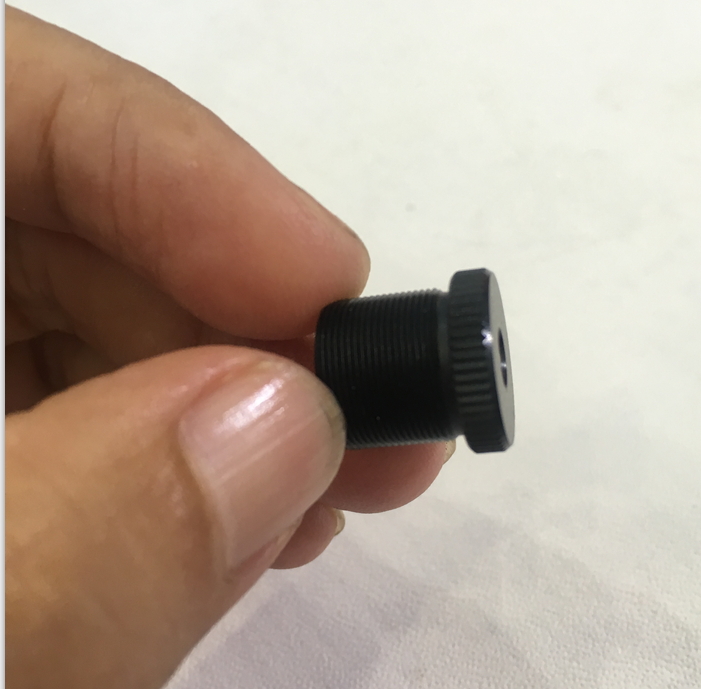

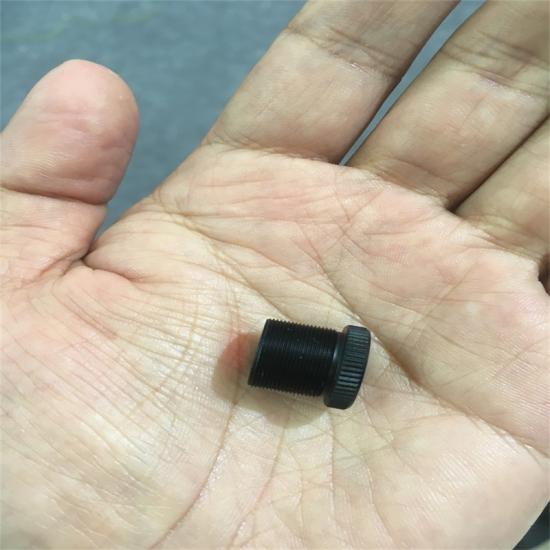

Product name: 16mm M12 telephoto Small Aperture Lens cctv
1/2.5'' 16mm M12 S mount ITS lens for Iris recognition, vehicle license plate recognition
Product Advantage
1,16mm Lens for vehicle license plate recognition;
2,16mm No Distortion Lens for Iris recognition
3,Widely used in ITS Lens,Face recognition Camera
Product Specification
keying technical feature of 16mm Lens
1，TTL: 16mm
2, EFFECT Focal length: 16mm fixed Focus, Fixed Focal Length Lens
3, Aperture F/No: 4.8 good Depth of Field (DOF)
4, Optical Back Focal Length: 5.84mm
5, Mechnical Back Focal Length: 2.89mm
6, Max image circle: 7.1 (max 1/2.5 cmos)
7, FOV (D/H/V): 25/21.8/12.5 （1/2.7 sensor）
8, Optical Distortion: -1.06%
9, Relative illumination: >93.1%
10, CRA: <13.27 degree
11, mount type: M12*P0.5
12, Lens construction: 4G
13, IR Coating: NO
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, ultraviolet-proof standard: 500w@72H
17, diameter of lens cap: C14

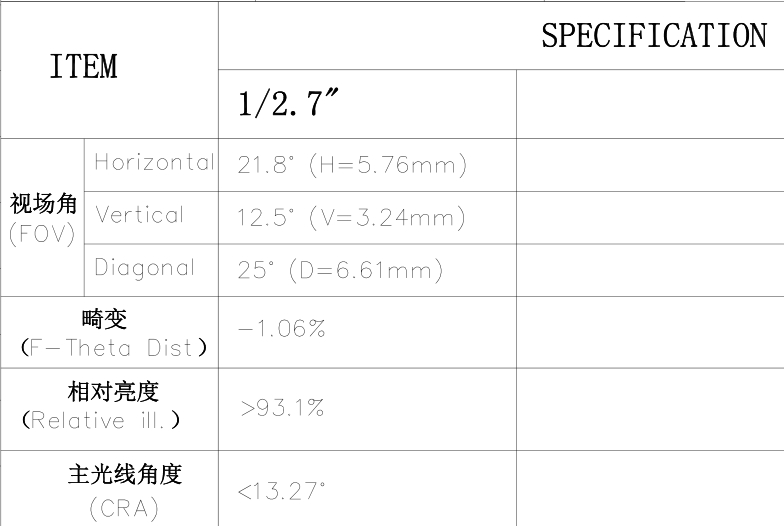

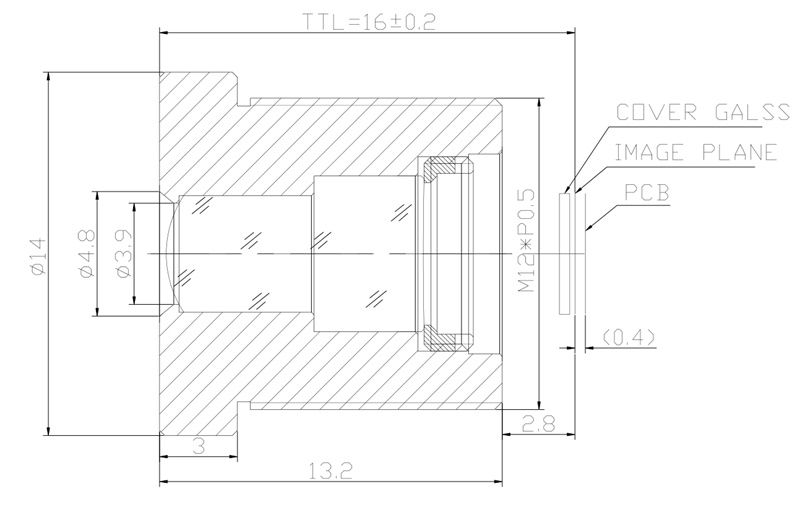

technical datasheet of 16mm CCTV Lens
Product Application
1，Lens for Face recognition Camera
2, Lens for Document Scanner
3, Lens for Iris recognition Camera
4, Lens for Face reader
5, Lens for Car ADAS Camera, DMS Camera
6, Lens for ITS Lens
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
