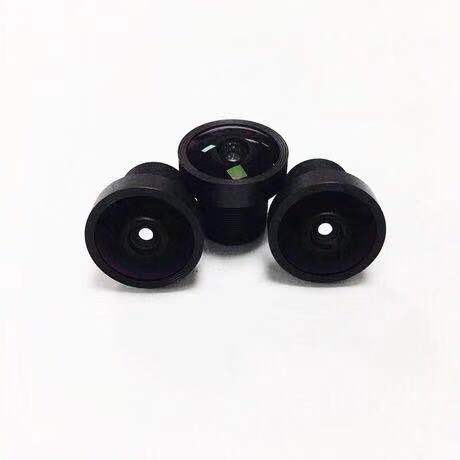

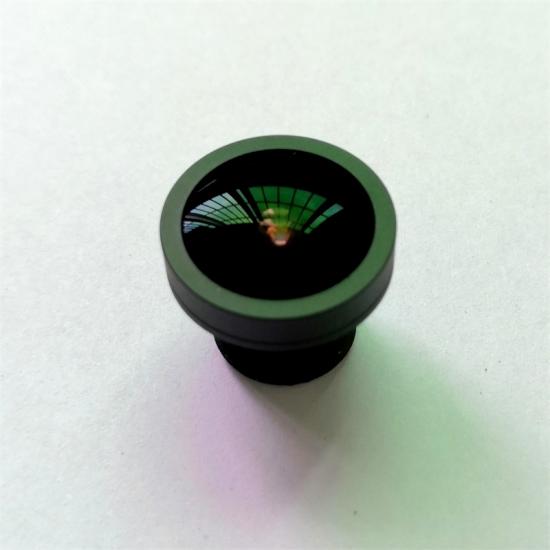

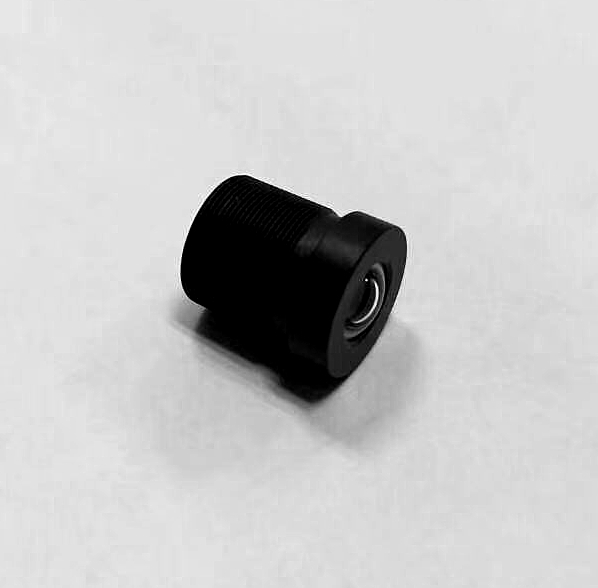

product name: 16MP 4mm F2.8 m12 wide angle lens 4K
Product Advantage
1, Ultra Wide Angle Lens 4K
2, Support 1/2.3'' Cmos creat 118 degree Angle
3, 16 Megapixel good for Drone Camera, FPV, UAV
4, CE and RoHS Approval, ODM or Custom made Lenses available
product specification
keying technical feature of 4mm 16mp 4K Lens
1，TTL: 23mm
2, EFFECT Focal length: 4.0mm
3, Aperture F/No: 2.8
4, Optical Back Focal Length: 7.47mm
5, Mechnical Back Focal Length: 5.93mm
6, Max image circle: 10.3 (1/1.8)
7, FOV (D/H/V): 118/92.6/69
(1/2.3 IMX117) Wide Angle 4K
8, TV Distortion: H:-13.4%, V:-24.5%
9, Relative illumination: >75%
10, CRA: <13.4 degree
11, mount type: M12*P0.5
12, Lens construction: 7Glass &IR E
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree
16, ultraviolet-proof standard: 500w@72H
17, diameter of lens cap: C14
18，High Resolution MTF: 16 Megapixels

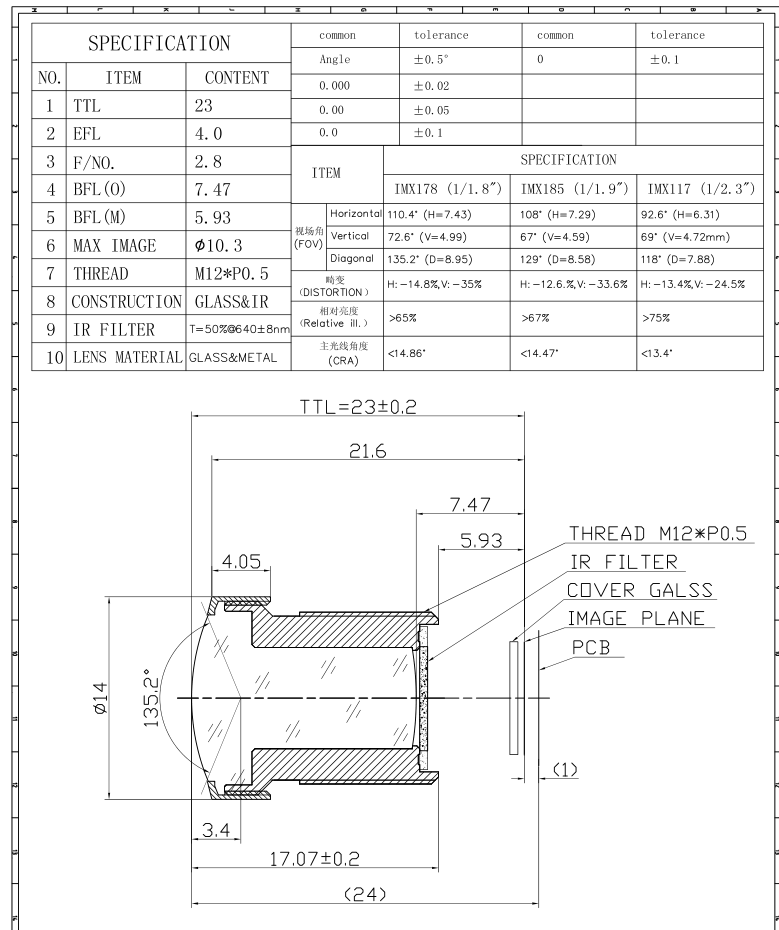

keying technical datasheet of Ultra 4K Lens
4mm 4K Lens Application
Lens for Car black box camera
Lens for 4K FPV DJI drone camera
Lens for 4K sport action camera gopro
Lens for Smart Home camera
Lens for Video Conference Camera
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China.Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens,Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5,CS Mount, C mount, F mount Industrial Camera Lenses too.welcome to share your lens requirement or product idea with us to discuss and proceed. thank you very much
Glass Lens Manufacturing Process
The technological process of making glass optical lenses is
1,cutting- 2,Rough Grinding- 3, Centering - 4, Fine Grinding- 5 Cleaning-6 Inspection- 7 Film - 8 Coating
Application of our goobuy lens
1. Automotive side view lens, SVS lens, DMS, Reversing lens, surround view lens, ADAS camera, front view lens,
E-mirror lens，backup camera lens etc
2. Lens for automobile camera, Car recorder lens, Car DVR lens, Car Black Box lens, car dash camera lens
3. CCTV camera lens, security camera lens, IP camera lens, PTZ camera
4. Aerial Photograph drone lens, Police DVR camera,body worn camera, VR panoramic camera
5. Smart home Doorbell, lens for robot camera, gopro lens, action camera lens, DJI osmo pocket wide angle lens
6. 2D/3D barcode Scanner, dental camera lens, document scanner, medical endoscope lens,industrial endoscope Camera
7, lens for face recognition, iris acquisition, biometrics recognition, image acquisition and AI Camera Intelligent recognition
8, video conferencing camera lens, Industrial Camera, FA Lens, Machine Vision Camera
