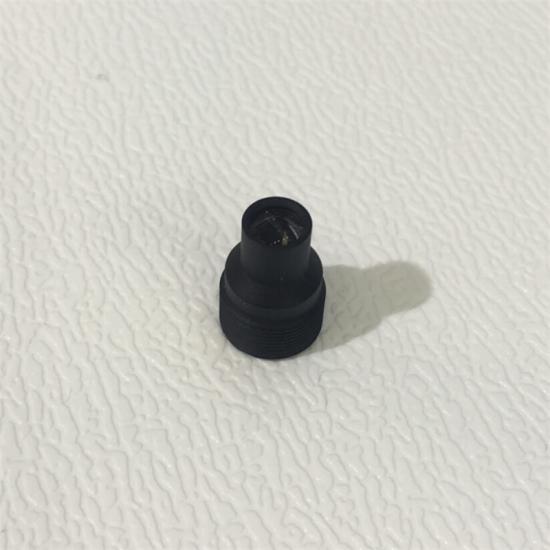

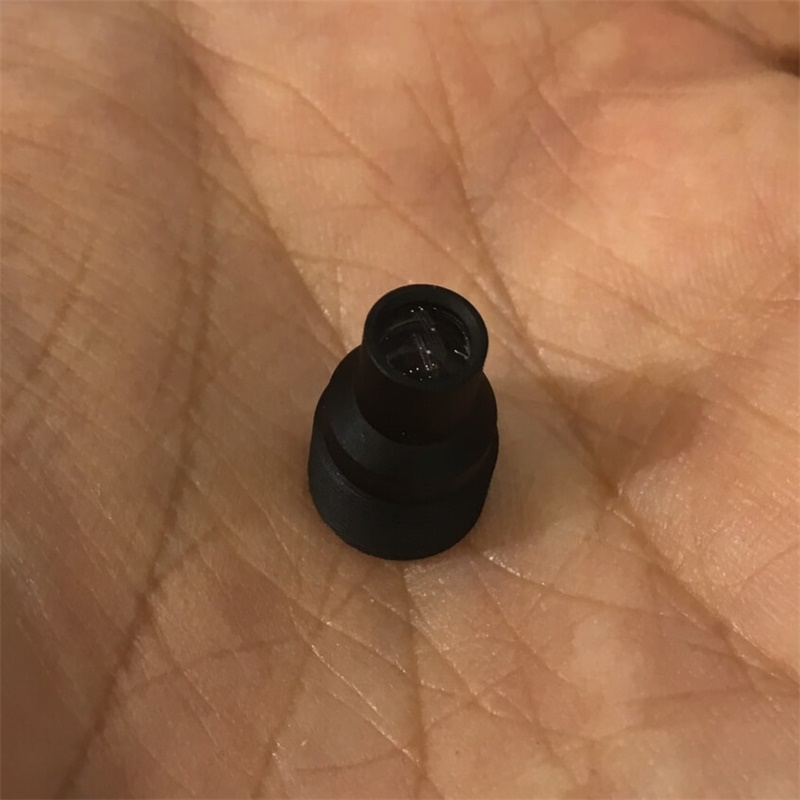

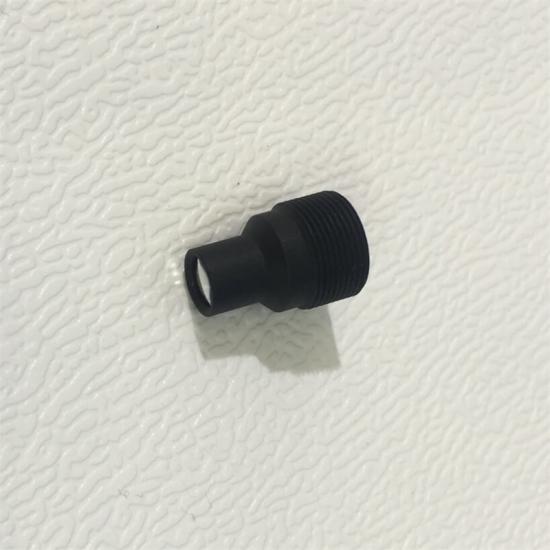

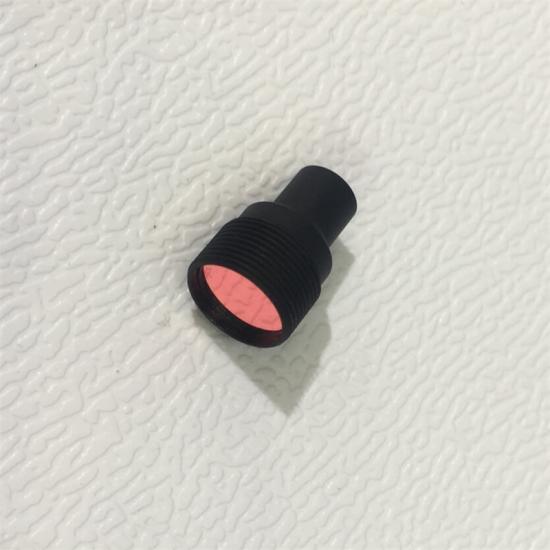

Product name: 4G Full glass fixed focal length 16mm zero distortion, DFOV 25 degree
Product Advantage
1, Zero Distorting Lens M9
2, 16mm Telephoto Lens
3, Remove and correct unexpected spherical aberration by using asperical Lenses
4, CE and RoHS Approval, ODM or Custom made Lenses available
Product specification
keying technical feature of 16mm m9 telephoto lens zero distortion
1，TTL: 16mm
2, EFFECT Focal length: 15.1mm
3, Aperture F/No: 4.7
4, Optical Back Focal Length: 5.84mm
5, Mechnical Back Focal Length: 2.89mm
6, Max image circle: 8.3
7, FOV (D/H/V): 25/21.8/12.5 (1/2.7)
8, F-theta Distortion: -1.06%
( zero distortion lens)
9, Relative illumination: >93.1%
10, CRA: <13.27 degree
11, mount type: M9*P0.5
12, Lens construction: glass&IR
13, IR Coating: NO
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree

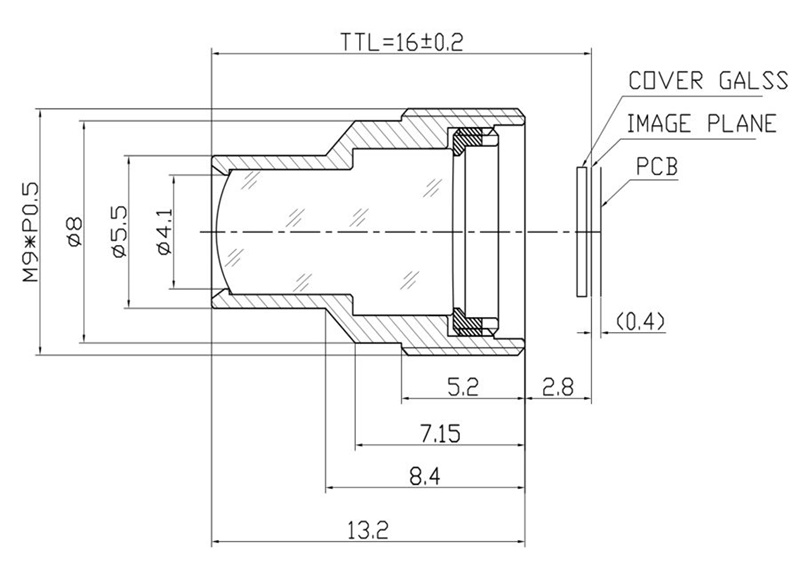

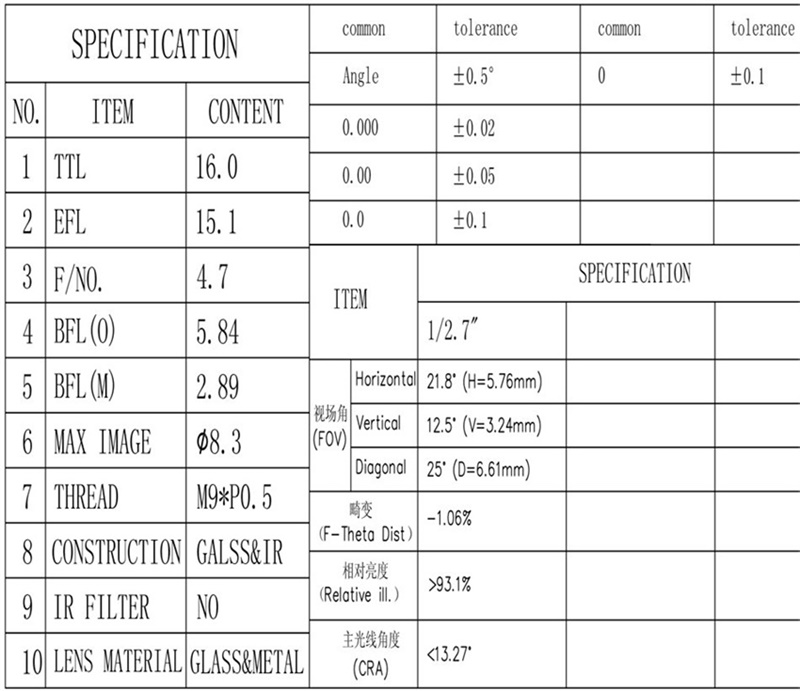

Technical datasheet of 16mm Camera Lens
Product Application
1, Lens for Telephoto Camera
2, Lens for Security Camera
3, Lens for ITS Lens
4, Lens for IP Camera Lens
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
