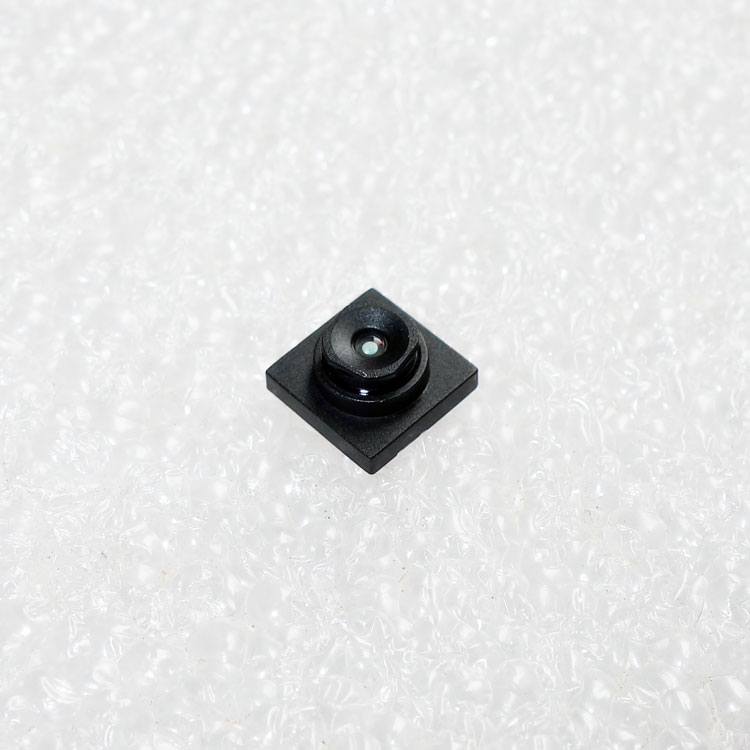

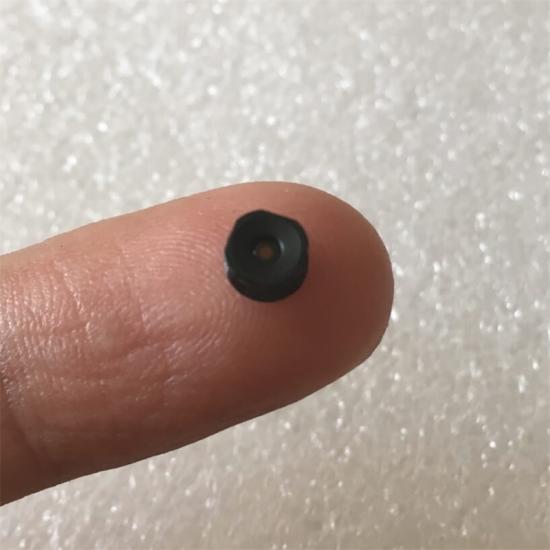

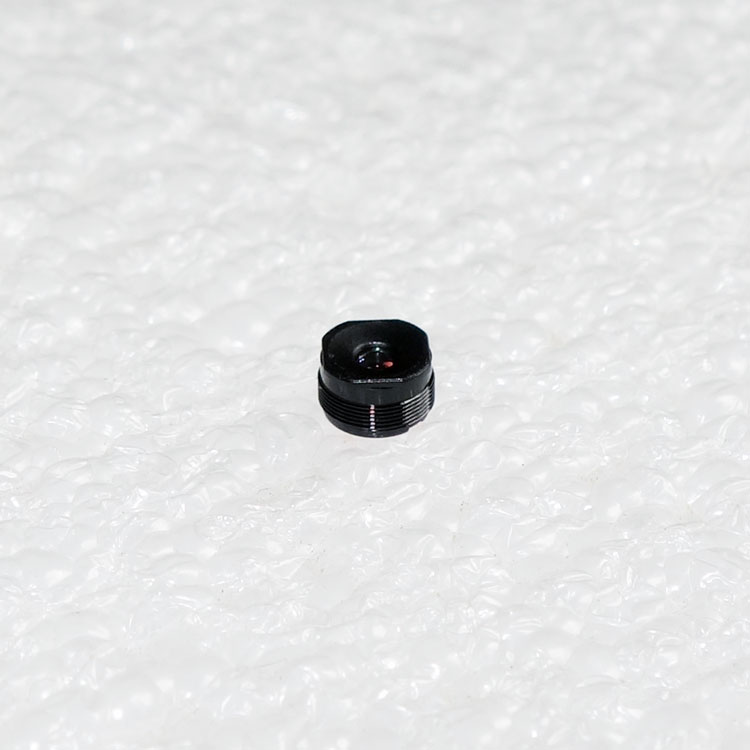

Product Name: 1/6 inch OV2720 cmos 1.58mm m5*p0.35 5mp mini lens 88 degree
for dental intraoral camera module, M5 Plastic Lens
Product advantage
1, All Plastics lenses 6P, keep competitive pricing for customer
2, 88 degree wide angle m5 Lens for Intraoral Camera
3, 1/6 inch OV2720 Cmos Lens
4, 100% Made in China, China Pinhole Lenses
Product Specification
technical specification of 1.58mm M5 Pinhole Lens
1,LENS CONSTRUCTION ： 6 ELEMENTS， 5 PLASTIC + 1 FILTER
2,SENSOR：1/6°CMCS(2.688X 1.512， DIAGONAL=3.084)
3,EFL M=1.58mm
4,FB=3.42±0.1(AIR， INF IN TY)
=3.55±0.1(AIR INFINITY， WITH 0.4mm COVER GLASS)
5,FNO-2±5%(TN FINITE)
6,FIELD OF VIEW
VERTICAL：51°(Y”=0.758)
HORIZONTAL：80.6°(Y°=1.344)
DIAGONAL：88°(Y”=1.542)
7,ENTRANCE PUPIL
P-0.55RICHT TO FRONT SURFACE
D=00.78
8,EXIT PUPIL
P-2.06 LEFT FROM THE IMAGE PLANE
D=00.99
9,TY-DISTORTION(Traditional*2) <1.5%
10,RELATIVE ILLUMINANCE=30%(CY"=1.542)
11,CHIEF RAY ANGLE<30°
12,MAXIMUM I MACE CIRCLE ：93.4
13.IR-CUTFILTER：T50%=650±10mm
14.LENS AR COATING：ALL SURFACE
15,BARREL MATERIAL：PC(BLACK)

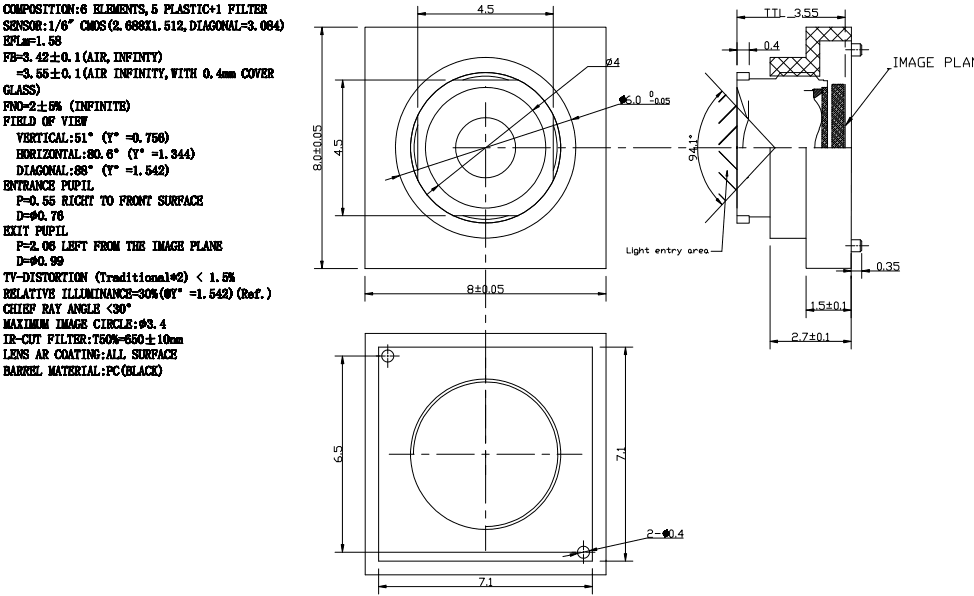

Technical datasheet of M5 Mini Lens
Product Application
1, Lens for Barcode Scanner
2, Lens for dental Camera
3, Lens for 2D/3D Scanner Reader
4, Lens for endoscope Camera
5, Lens for Pinhole Camera
6, Lens for Biometrics equipment
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China
Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,
Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens
Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera
their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5,
CS Mount, C mount, F mount Industrial Camera Lenses too
welcome to share your lens requirement or product idea with us to discuss and proceed
