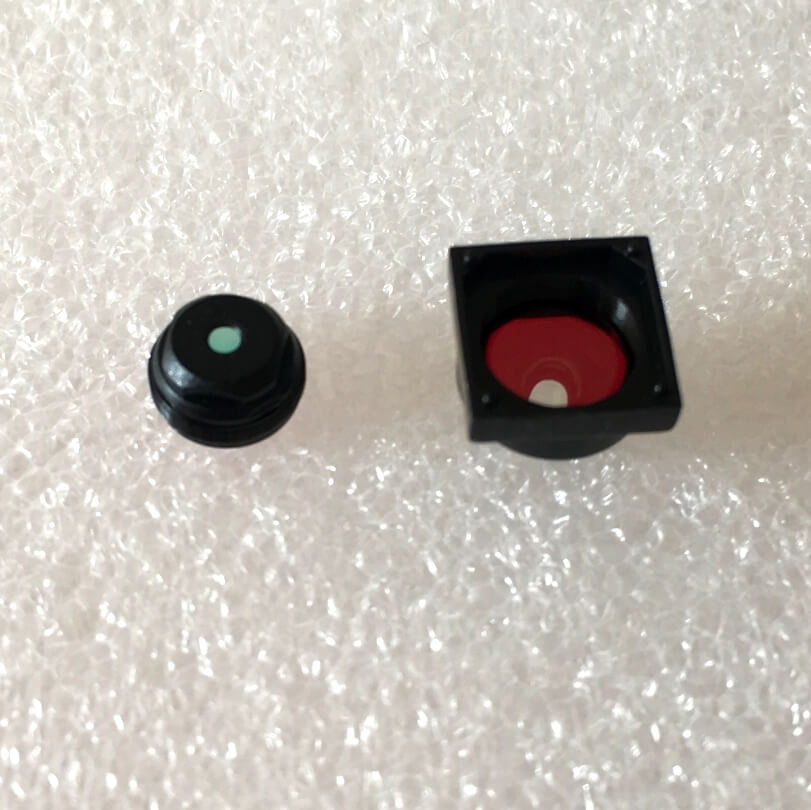

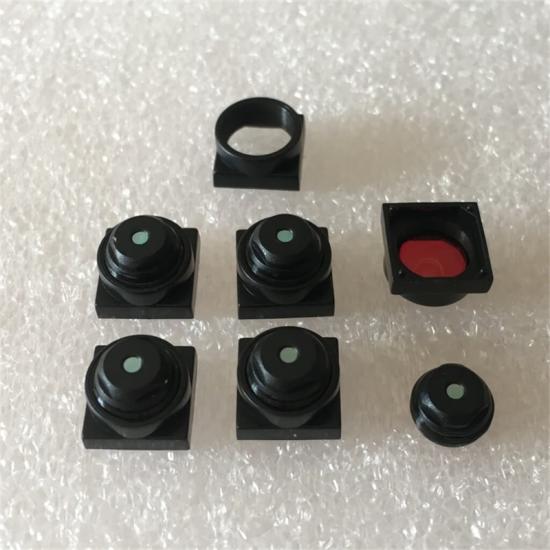

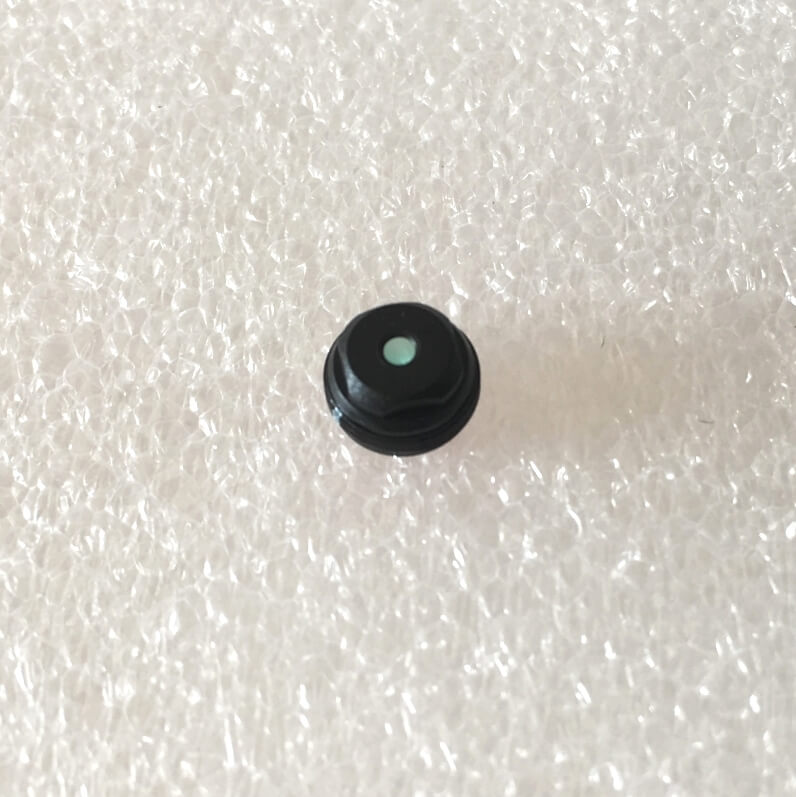

Product Name: M6.5*P0.35 Hortizontal 62 degree barcode scanner module Mini Lens for 2d wireless barcode reader
product advantage
1, 2.8mm wide angle mobile phone Lens M6.5
2, 8MP high resolution good as Barcode Reader Lens,
3, 8MP resolution and 90 degree Angle good for Barcode Scanner Module
4, 8MP Oral dental Camera Lenses
5, M6.5 Compact structure, excellent optical performance
Product Specification

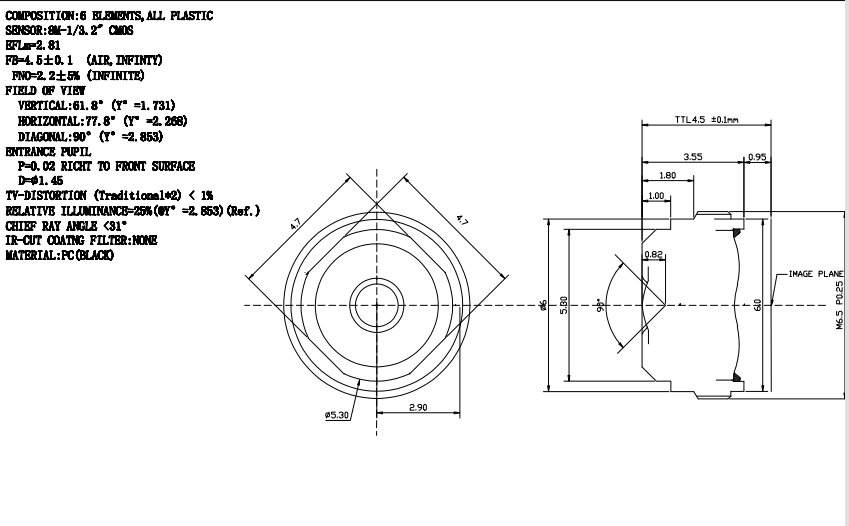

Technical Feature of 2.8mm Wide Angle Lens
1,EFFECTIVE FOCAL LENGTH: 2.81MM
2,Matching Sensor：8M-1/3.2 CMOS Sensor
3,FB=4.5±0.1 (AIR， INF IN TY)
4,F/NO=2.2±5%(INFINITE)
5,FIELD OF VIEW (FOV)
VERTICAL：61.8°(Y"=1.731)
HORIZONTAL：77.8"(Y=2.268)
DIAGONAL：90°(Y°=2.853)
6,ENTRANCE PUPIL
P-0.02RICHT TO FRONT SURFACE
D=01.45
7,TY-DISTORTION(Traditional*2) <1%
8,RELATIVE ILLUMINANCE-25%(CT*=2.853) (Ref.)
9,CHIEF RAY ANGLE<31°
10,IR-CUTCOATNGFILTER：NONE
11,MATERIAL：PC(BLACH)
12,Lens Constructure ： 6 ELEMENTS， ALL PLASTIC
13,TTL: 4.5MM
Product Application
1, Lens for mobile Smartphone
2, Lens for Mini DV Camera
3, Lens for Pinhole Camera
4, Lens for Endoscope Camera
5, Lens for Oral dental Camera
6, Lens for Barcode Scanner Module, Barcode Reader
Plastic Lens Manufacturing Process
1, Plastic Resin - 2, Injection Molding- 3, Cutting - 4, AR Coating
- 5, Lens Assembly- 6, Projection ( Resolution power test)- 7. QC- 8. Packing
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China
Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera
their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too. welcome to share your lens requirement or product idea with us to discuss and proceed
