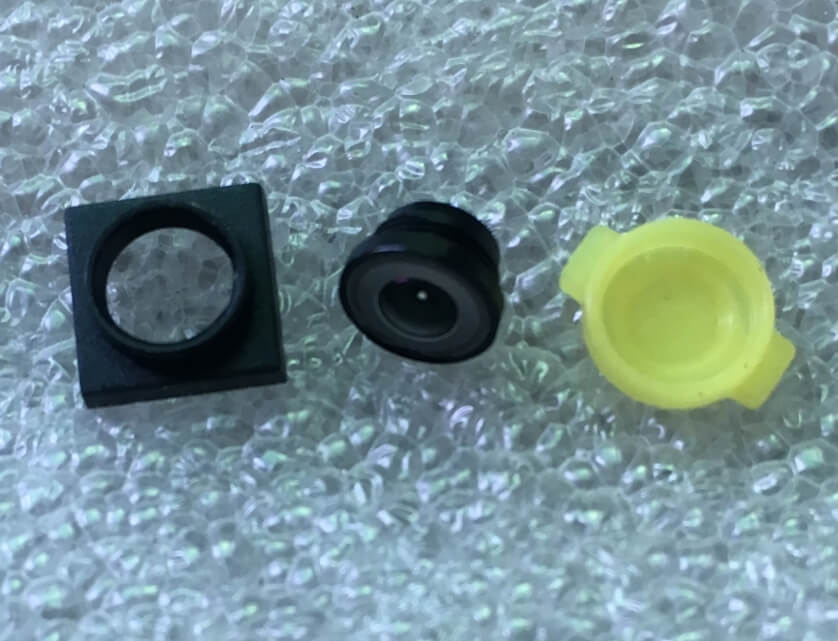

Product Name: 0.95mm short focal length horizontal 133 degree 3P m5.5*p0.35 lens
DFOV 166 degree work 1/7.5 inch OV7750 OV7251 cmos sensor
product advantage

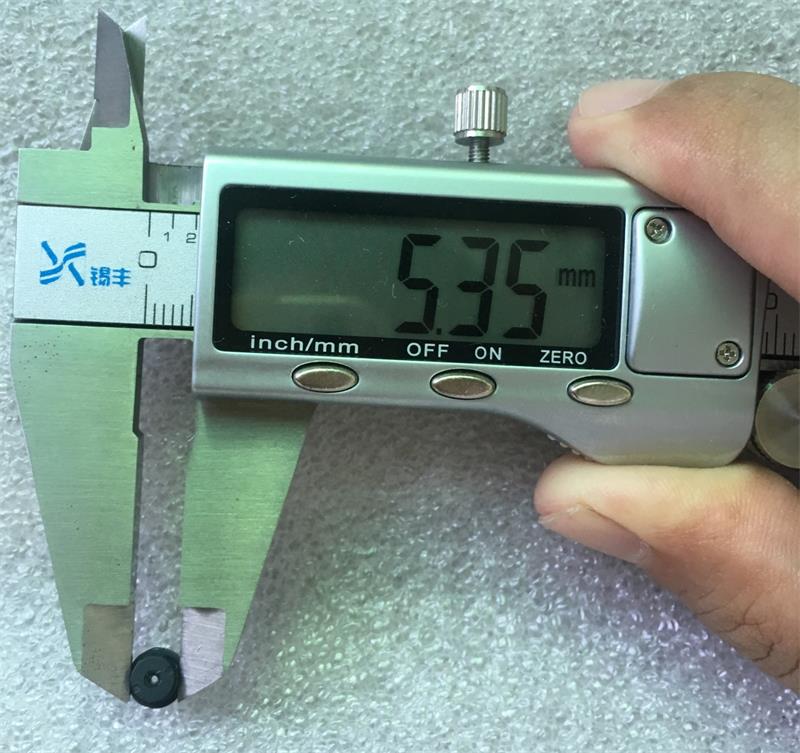

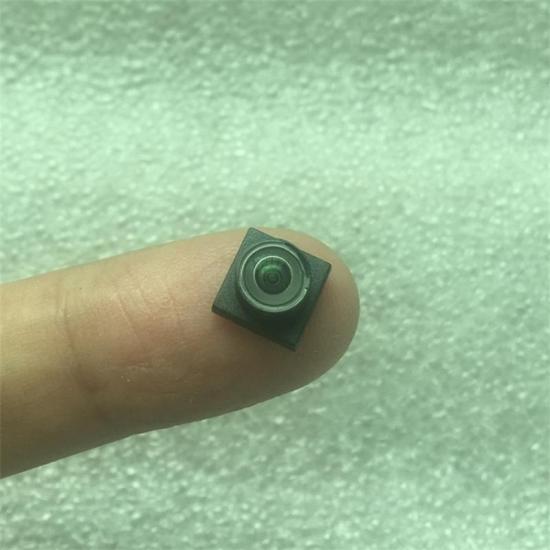

1, m5.5 Miniature pinhole Camera Lens creat 166 degree Ultra Fisheye
2, Apply and work well with OV7750, OV7251 1/7.5'' miniature Coms Sensor
3, Widely used as Medical endoscope Camera, Industrial endoscopy camera lens
4, TTL less than 5mm, Compact structure, Megapixel optical performance
Product Specification
Technical Feature of 0.95mm Miniature Fisheye Lens
1, FOCAL LENGTH(EFL): f=0.95mm

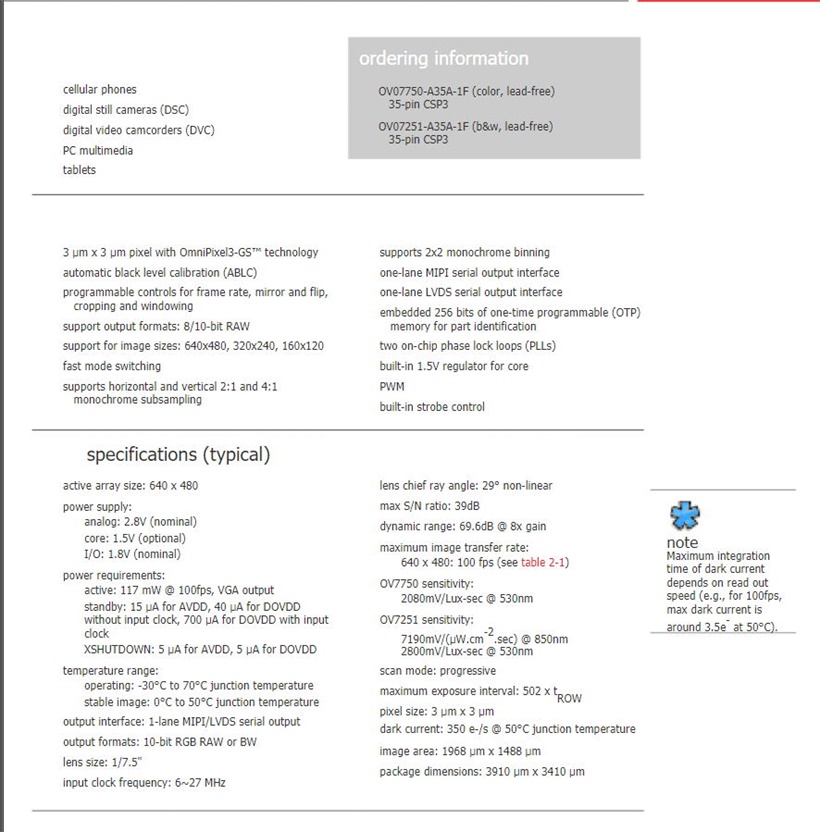

2, CMOS SENSOR: 0V7750/7251
3, TTL:4.93
4, F/NO(INFINITE): F/NO=2.0±5%
5, BACK FOCAL LENGTH: BFL=0.94
6, FLANGE BACK LENGTH:FB=1.34
7, DIAGONAL DEGREE (DFOV): 166°( Ultra Fisheye )
8, Horizontal angle degree:133°
9, OPTICAL DISTORTION(DIAGONAL) <10%
10, MOUNT TYPE: M5.5*P0.35
11, LENS CONSTRUCTURE: 5P Plastic Lense

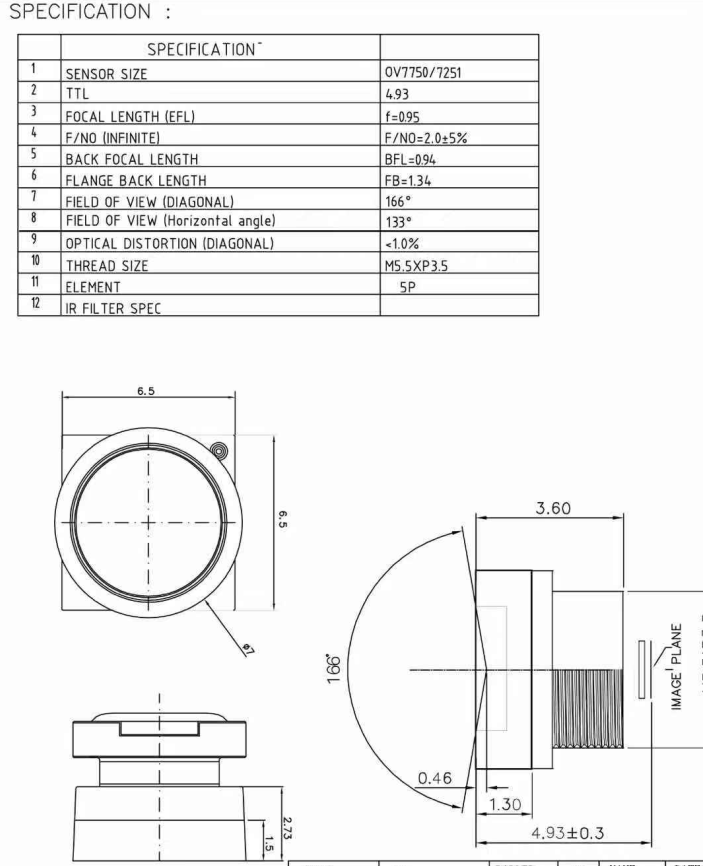

Technical Datasheet of 0.95mm Miniature Camera Lens 1/7.5
Product Application
1, Lens for industrial Endoscope Camera
2, Lens for dental Camera
3, Lens for 2D/3D Scanner Reader
4, Lens for Medical endoscope Camera
5, Lens for Pinhole Camera
6, Lens for Biometrics equipment
Custom Pinhole Lens
welcome to inquiry or call us right now for your ODM camera project to discuss details!Please show and tell us your exact requirement or demand needed of your medical endoscope camera , we are open to discuss all customzied technical data include FOV, Focal lenght, low distrotion, F/No, Sensor Type etc
