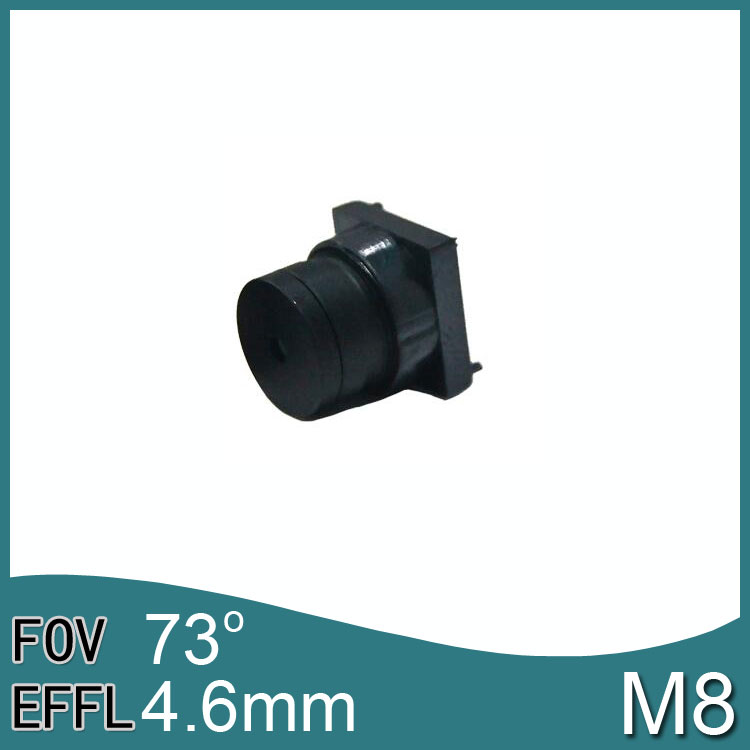

1/2.7" AR0230 4.6mm less 2% Low Distortion M8 Camera Cabin Lens

less 2% distortion and compact mini design can permit it to used for cabin camera lens, in car camera lens in automotive industry and smart home camera.


  • Item No.:

    m8-4.6mm-111-004
  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

    China
  • Min order:

    200
  • Product weight:

    2
  • Shipping port:

    Shenzhen
  • Lead Time:

    4 days
  • H.S.Code:

    90029090
  • MTF Resolution:

    2megapixels FULL HD

  • Product Detail

Product Name: 2020 new launched 1/2.7'' AR0230 4.6mm m8 3G lens low distortion less than -2% short TTL 8.34

used for Cabin Lens and in car camera lens

Product Advantage:

1, Less 2% Low Distortion Lens for Camera Lens Cabin

2, Widely used in multiple field especially Automotive industry Lenses

3, M8 Compact structure, sharp image

4, CE and RoHS Approval, ODM or Custom made Lenses available

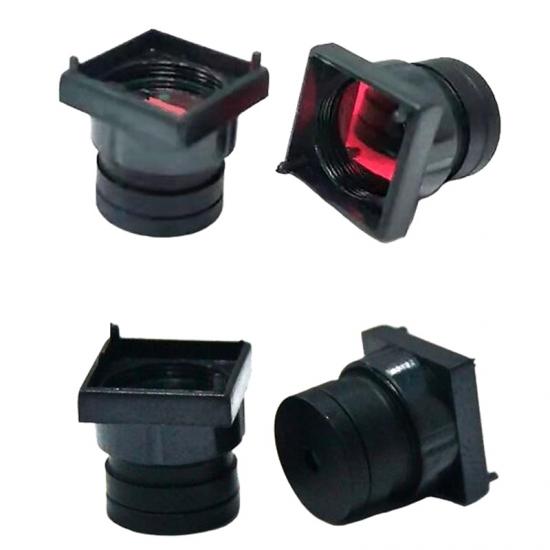

Low Distortion m8 Lens

Product Specification:

keying technical feature of 4.6mm Low Distortion m8 Lens

1,TTL:8.34mm

2, EFFECT Focal length:4.6mm

3, Aperture F/No: 2.95

4, OBFL:2.0mm

5, MBFL:1.48mm

6, Max image circle:6.85

7, FOV (D/H/V):72.8/65.9/39.2 (1/2.7 AR0230)

8, Optical Distortion:<-2%

9, Relative illumination:>42%

10, CRA:<12.3

11, mount type:m8*p0.35

12, Lens construction:3G+1MG

13, IR Coating:T=50%@640+/-8nm

14, working  temperature:-30 to +80

15, storage temperature:-40 to +80

16, ultraviolet-proof standard:500w@72H

Technical Datasheet of 2% Distortion In Car Camera Lens

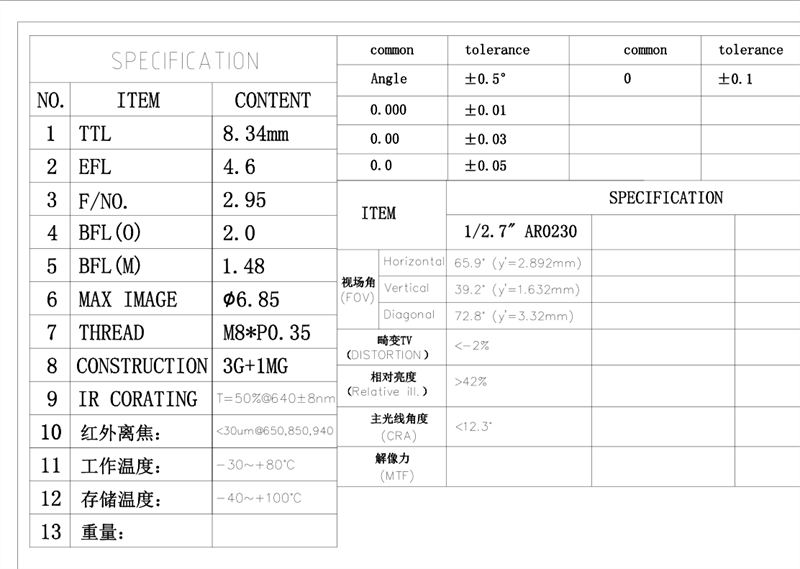

4.6mm M8 Lens datasheet

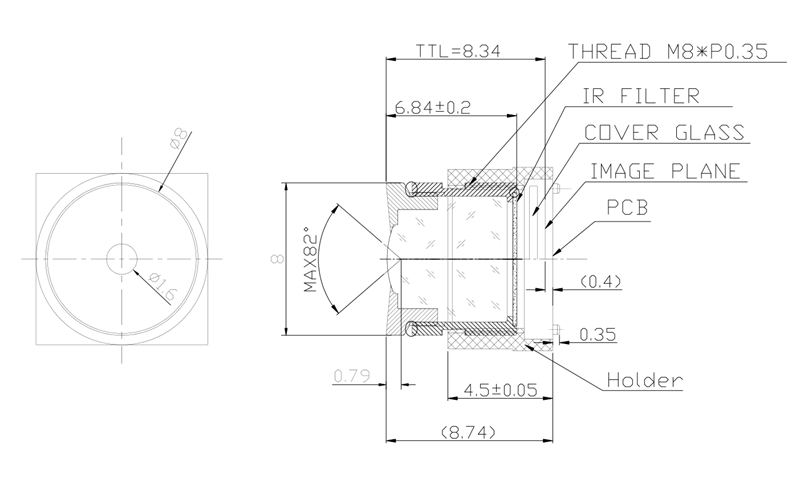

4.6mm M8 Lens Drawing

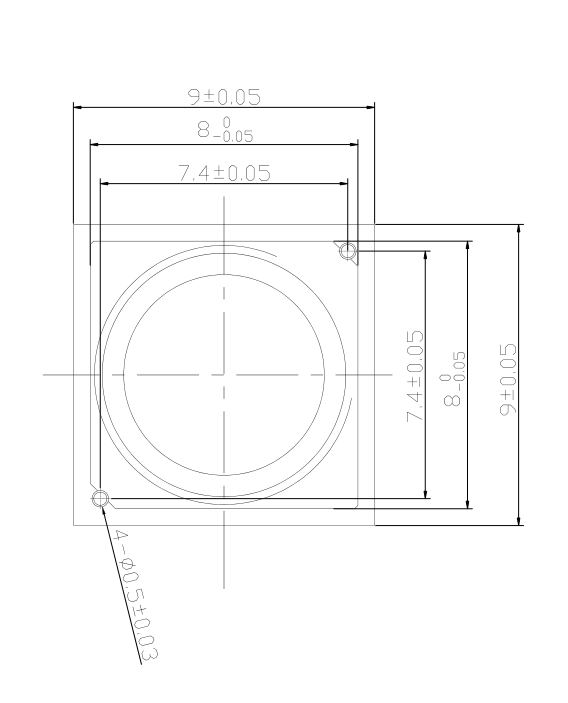

M8 Lens Holder Diagram

Product Application

1,Lens for Face recognition Camera

2, Lens for Document Scanner

3, Lens for portable handheld Scanner

4, Lens for Face reader

5, Lens for Car ADAS Camera, DMS Camera

6, Lens for Cabin Camera in Car
