Product name: 1/2.7'' 3.0mm m12 cctv face recognition reader camera lens no distortion for car automotive DMS
Product Advantage
1, less than 1% distortion, No Distortion Lens for Face Reader camera
2, Waterproof IP67 nice for outdoor CCTV Face Recognition Camera
3, Hortizontal 86 degree nice for in-car Camera DMS Lens
4, ideal No distortion lens for any face recognition device and equipment

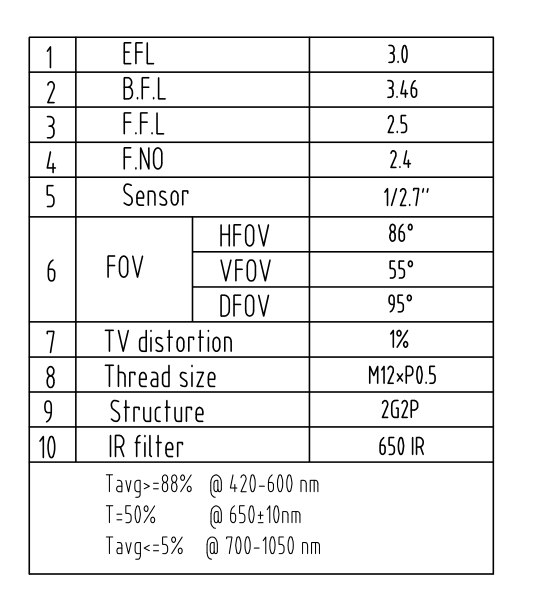

Product Specification
Technical Feature of 3mm Car Adas DMS Module Lens
1,Effect Focal Length: 3.00mm
2,Back Focal Length: 3.46mm
3,Flange.Focal.Length: 2.50mm
4,Aperture F/NO: 2.4
5,Matching Sensor: 1/2.7"
6,HFOV: 86°
V FOV: 55°
D FOV: 95°
7,TV distortion: less than 1% ( Zero distortion Lens)
8,Thread size: M12xP0.5
9,Lens Structure: 2G2P
10,IR filter: 650IR
11,Waterproof grade: IP67
T avg>=88% @420-600nm
T=50% ①650±10mm
T avg<=5% @700-1050nm

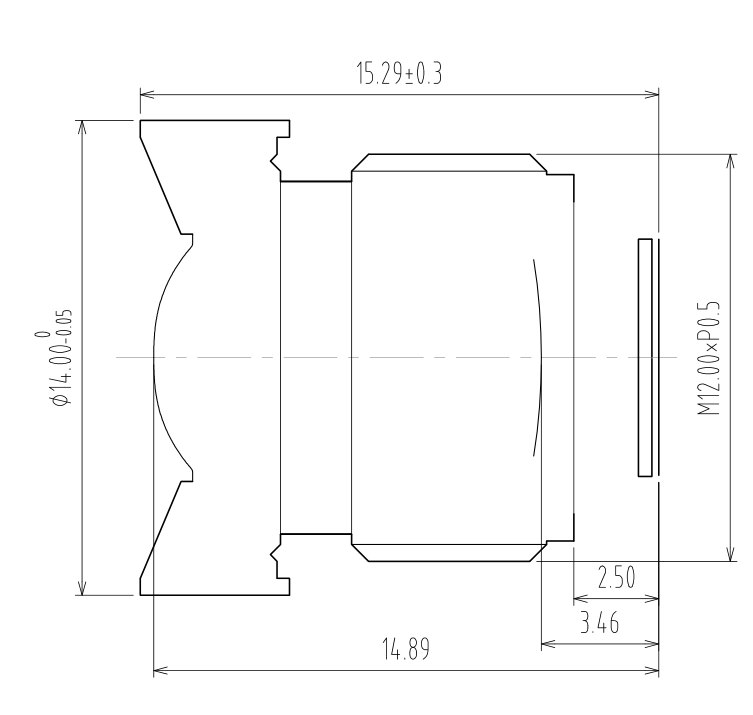

11. Short TTL: 14.89mm
Product Application
lens for automotive DMS camera
lens for video conferencing camera
lens for face recognition camera
lens for face reader
lens for Face Recognition Cctv Camera
lens for Face Recognition Surveillance Cameras
lens for any camera no distorion needed
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China
Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens, Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera
their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5,
CS Mount, C mount, F mount Industrial Camera Lenses too
welcome to share your lens requirement or product idea with us to discuss and proceed
thank you very much
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime
include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly,
can communicate all problems freely and fastly
