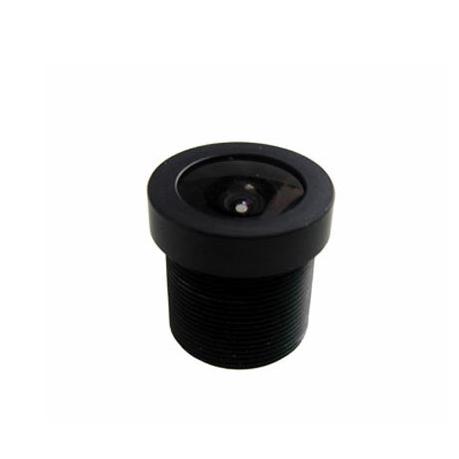

Product Name: 1/3'' OV4689 AR0330 1/2.7 OV2710 2.4mm 4G Low Distortion m12 Lens HFOV 99 with Aperture F2.6
Product Advantage:
1, 3.6% Low Distortion 109 degree Wide Angle Lens S Smount
2, Work well with OV4689 Camera Module for Document Scanner
3, 5MP Low Distortion Lens ideal for CCTV IP Camera

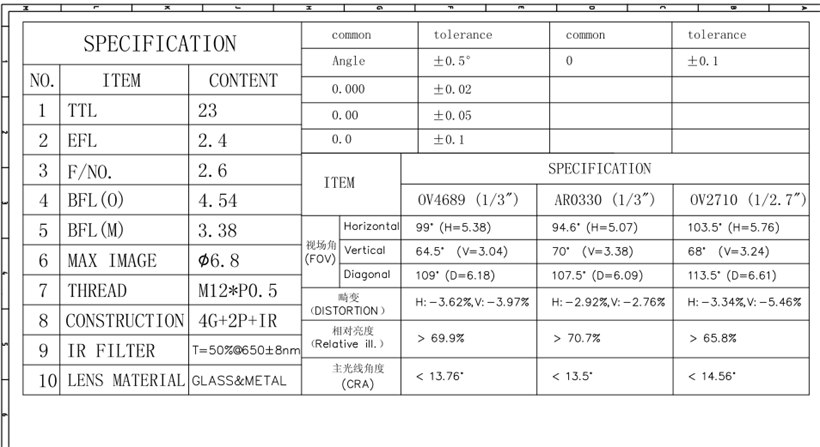

Product Specification
keying technical feature of 2.4mm m12 OV4689 Camera Module Lens
1,TTL: 23mm
2,EFFECT Focal length: 2.4mm
3,Aperture F/No: 2.6
4,OBFL: 4.54mm
5,MBFL: 3.38mm
6,Max image circle: 6.8
7,FOV (D/H/V): 109/99/64.5 degree ( OV4689 1/3 sensor)
8,Optical Distortion: H: -3.62%, V: -3.97%
9,Relative illumination: > 69.9%
10,CRA: <13.76 degree
11,mount type: M12*P0.5
12,Lens construction: 4G+2P+IR
13,IR Coating: T=50%@650+/-8nm
14,working temperature: -40 to 80 degree
15,storage temperature: -40 to 90 degree
16,Lens material: Glass + metal

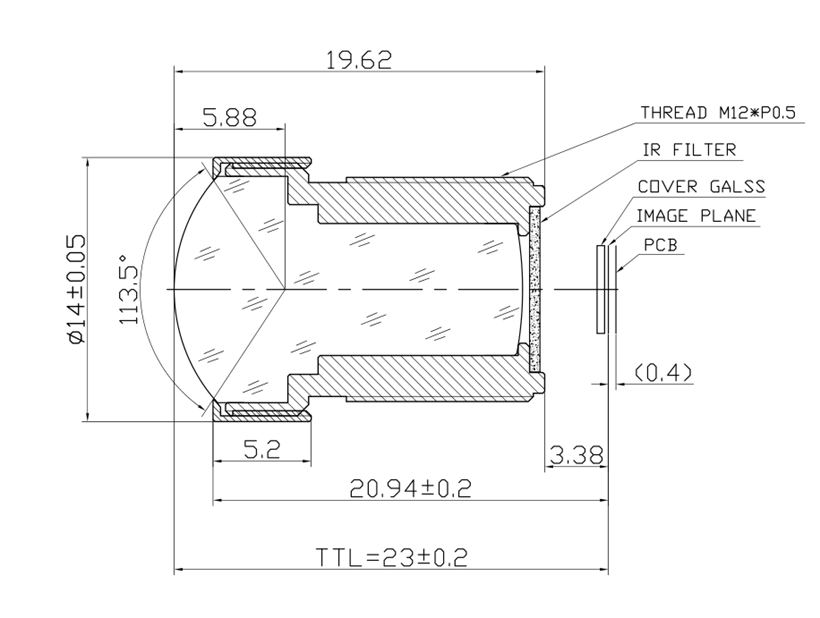

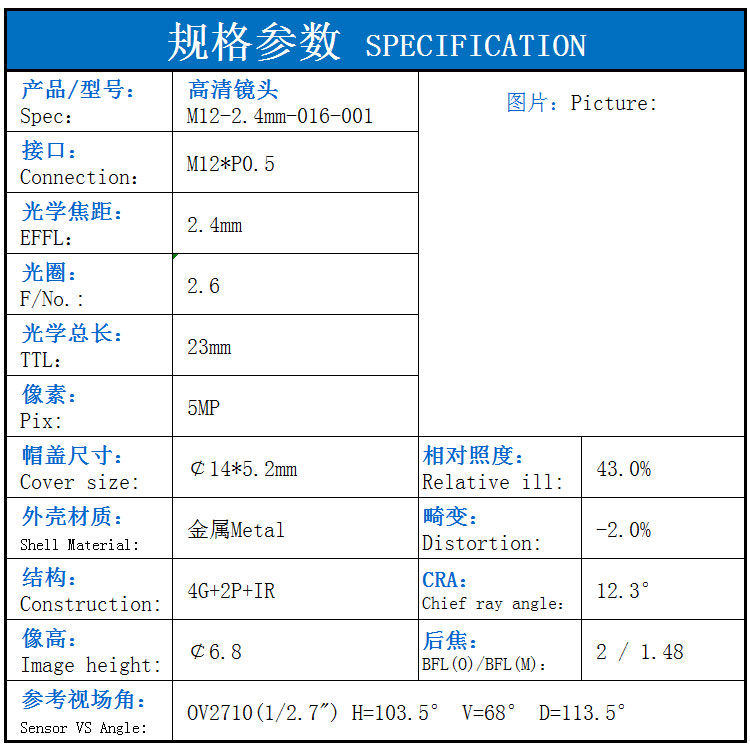

Technical Datasheet of 5MP S Mount Lens
Product Application
1，Lens for Drone Camera
2, Lens for Document Scanner
3, Lens for portable handheld Scanner
4, Lens for Face reader
5, Lens for Car ADAS Camera, DMS Camera
6, Lens for Cabin Camera in Car
Custom CCTV Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China. Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera.their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too.welcome to share your lens requirement or product idea with us to discuss and proceed thank you very much
Application of our goobuy lens
1. Automotive side view lens, SVS lens, DMS, Reversing lens, surround view lens, ADAS camera, front view lens,E-mirror lens，
backup camera lens etc
2. Lens for automobile camera, Car recorder lens, Car DVR lens, Car Black Box lens, car dash camera lens
3. CCTV camera lens, security camera lens, IP camera lens, PTZ camera
4. Aerial Photograph drone lens, Police DVR camera,body worn camera, VR panoramic camera
5. Smart home Doorbell, lens for robot camera, gopro lens, action camera lens, DJI osmo pocket wide angle lens
6. 2D/3D barcode Scanner, dental camera lens, document scanner, medical endoscope lens,industrial endoscope Camera
7, lens for face recognition, iris acquisition, biometrics recognition, image acquisition and AI Camera Intelligent recognition
8, video conferencing camera lens, Industrial Camera, FA Lens, Machine Vision Camera
