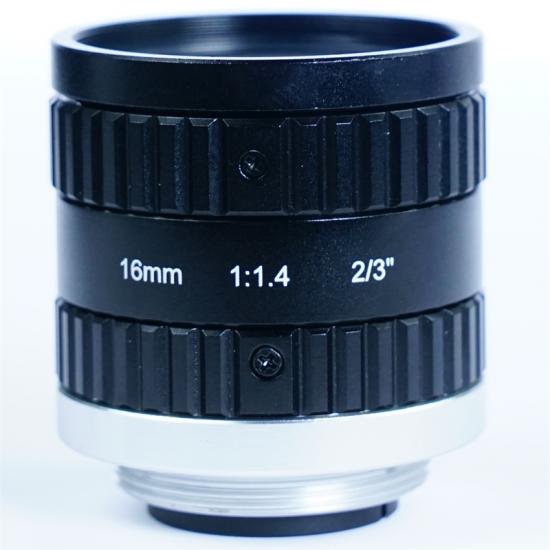

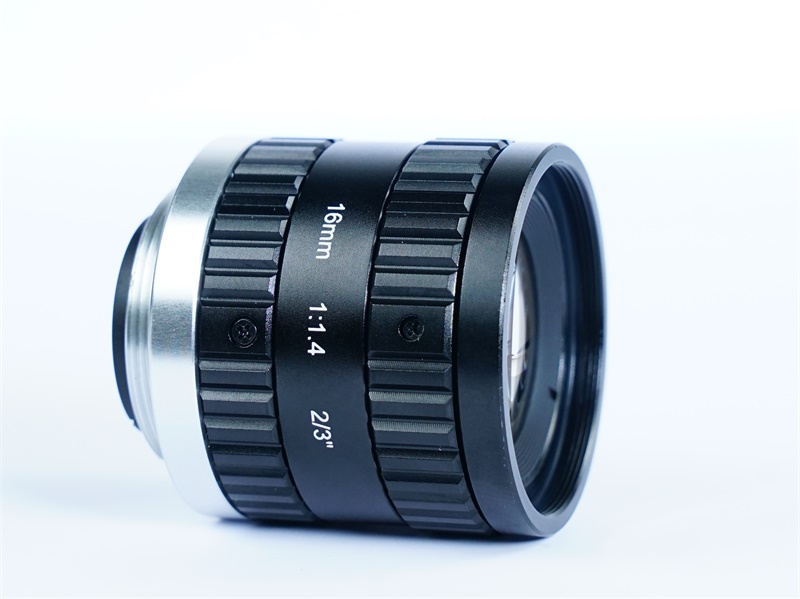

Product Name: FULL HD 16mm 2/3’’ Camera Lenses with C-Mount
Product advantage:
1, Variable Aperture LensFrom Large aperture F2.0 to Smallest F22 (creat good depth of Focus)
2,Multi-layer coating, All glass + metal structure design, good high and low temperature resistance
3, Applied For 2/3" megapixel Industrial Inspection camera
4, Widely used in Industrial Quality control cameras, Machine vision cameras, Industry Video cameras for inspection and imaging processing, scientific Research, Industrial robotics, Ruggedized cameras for security and defense, Industrial Photography Optics, Industrial Surveillance and Security etc
Product technical Specification of 16mm Industrial Video Lenses
|
Product Model |
NWA-23-3MP-16mm |
|
Image Cmos Sensor Format |
2/3’’ |
|
Photo Resolution |
3MP |
|
Focal Length |
16mm |
|
Aperture |
F1.4~C |
|
FOV(D×H×V) 2/3 inch cmos |
D37.61°/ H30.38°/ V22.92° |
|
FOV(D×H×V) 1/2 inch cmos |
D27.71°/ H22.32°/ V16.81° |
|
TV Distortion 2/3 inch cmos |
-1.00% y=5.5mm |
|
TV Distortion 1/2 inch cmos |
-0.65% y=4mm |
|
Focusing Range MOD (Minimum Object Distance) |
0.1m ~ ∞ |
|
Flange Distance |
17.526㎜ |
|
Operation Mode- Focus |
Manual with Lock |
|
Operation Mode –Iris |
Manual Variable |
|
Operation Mode-zoom |
Fixed |
|
TTL |
37.92mm |
|
Mount type |
C mount |
|
Filter Thread |
M30.5×P0.5 |
|

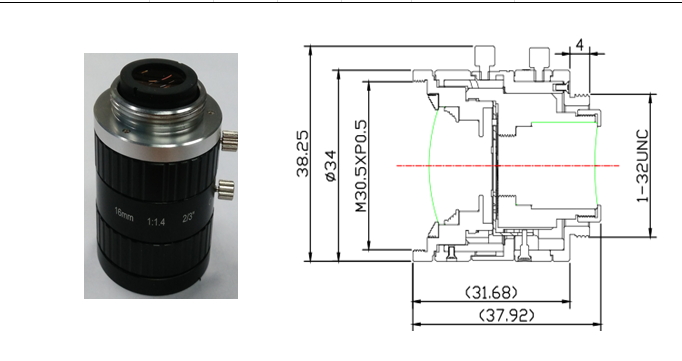

External Dimensions(mm): |
∅34*L38mm |
|
Structure |
Full Glasses Lenses+Metal Barrel |
|
Working temperature |
-10℃～+50℃ |
|
Storage Temperature Range |
-20℃～+60℃ |
16mm 2/3’’ Camera Lenses For Industrial Applications
1, FA Lenses For Industrial Inspection and Image Processing.
2. Teaching and research
3. Industrial image processing, industrial measurement, industrial monitoring, instrumentation, microscopic imaging,
4. Electronic component measurement, glass and pharmaceutical container measurement
5. Security monitoring at night/day
6. Solar panels, aerospace, national defense, criminal investigation, military industry
7, Intelligent Transportation System ITS
8. Wafer inspection, scratch inspection on semiconductor, metal, glass, film, wafer and other surfaces
9.Detection of engraved characters on metal surfaces, bearings, and beverage cans
10. Factory automated production, PCB board inspection
11. Medical beauty, medical surgery
12. Biometric technology, face recognition
13. Drug production monitoring
14. Food sorting
15. Automotive, FPC, mining
