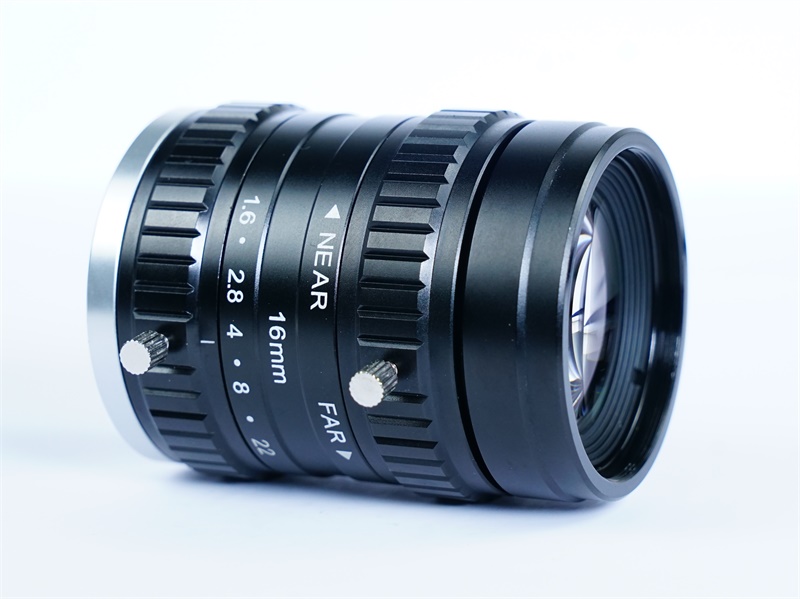

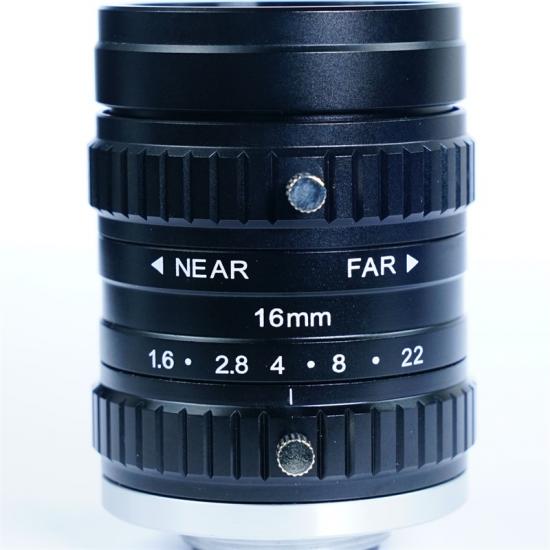

Product Name: 16mm 1 inch Lens For C Mount Camera in Factory Automation field
Product advantage:
1, High performance FULL HD 5 Mega-Pixel Machine Vision Lens
2,Manual Focusing variable aperture FA Lens For C Mount Camera
3, 16mm Fixed focus C-mount Lens For Machine Vision Cameras with 1 inch imaging Cmos
4,Multi-layer coating, with higher transmittance and effective suppression of stray light
Use high refractive index and low dispersion precious glass, high resolution imaging optics
5, Applied to 1" high pixel Industrial camera
Product technical Specification of 16mm Lens For C Mount Camera
|
Product Model |
NWA-1-16mm-5MP |
|
Image Cmos Sensor Format |
1 inch |
|
Photo Resolution |
5 Mega-Pixels |
|
Focal Length |
16mm |
|
Aperture |
F1.6~22 |
|
FOV(D×H×V) 1 inch cmos |
D55°/ H45°/ V34° |
|
FOV(D×H×V) 2/3 inch cmos |
D39°/ H31°/ V23.5° |
|
TV Distortion 1 inch cmos |
-3.90% y=8mm |
|
TV Distortion 2/3 inch cmos |
-1.90% y=5.5mm |
|
Focusing Range MOD (Minimum Object Distance) |
1.0m ~ ∞ |
|
Flange Distance |
17.526㎜ |
|
Operation Mode- Focus |
Manual with Lock |
|
Operation Mode –Iris |
Manual Variable |
|
Operation Mode-zoom |
Fixed |
|
TTL |
62.61mm |
|
Mount type |
C mount |
|
Filter Thread |
M37.5xP0.5 |
|

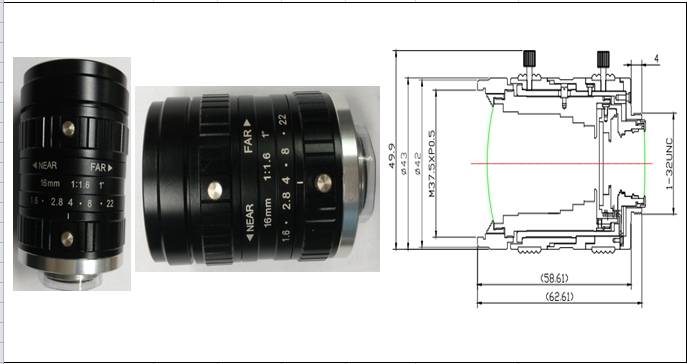

External Dimensions(mm): |
∅42*L62mm |
|
Structure |
Full Glasses Lenses+Metal Barrel |
|
Working temperature |
-10℃～+50℃ |
|
Storage Temperature Range |
-20℃～+60℃ |
Product Application:
Widely multi-purpose use of industrial lenses
Industrial lenses are widely used in object positioning detection with extremely high reflectivity, such as: scratch detection on metal, glass, film, wafer and other surfaces, chip and silicon wafer damage detection, MARK point positioning, glass cutting machine, glue dispenser , SMT inspection, plate placement machine and other industrial precision alignment, positioning, parts confirmation, size measurement, industrial microscopy and other CCD visual alignment, measuring devices and other fields. fixed-focus Industrial lenses are mainly used in the case of small changes in the field of view, similar to industrial assembly lines, fixed object scanning, traffic bayonet, etc. are widely used. Industrial lens can monitor and eliminate NG products on the production line; label digital high-speed contrast detection; detect the shape defects and dimensions of electronic components in the high-speed assembly line, detect the circuit board circuit and socket position, detect the amount of injection liquid, and print the batch number on the drug packaging , Production date and shelf life text inspection; food filling line online inspection, etc.
1. Mechanical parts measurement
2. Measurement of plastic parts
3. Measurement of glass and medicinal containers
4. Electronic component measurement
5. Particle measurement, measurement of high-precision color printing, semiconductor photomask measurement,
filter control, blood analysis and cell number calculation
6. Visual positioning of mechanical equipment, semiconductor inspection, wafer, wafer inspection, dispensing positioning,
liquid crystal display inspection
