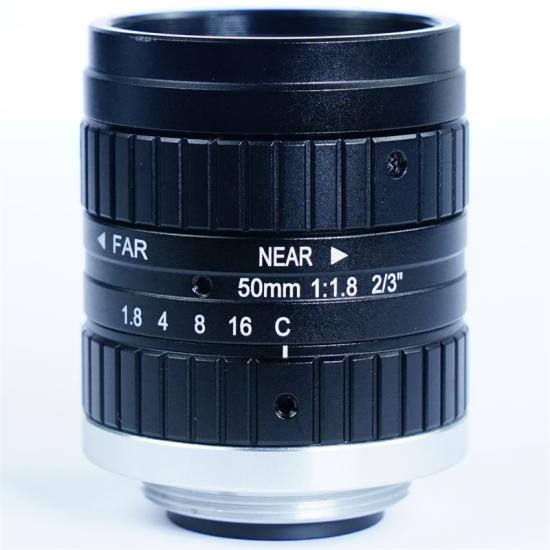

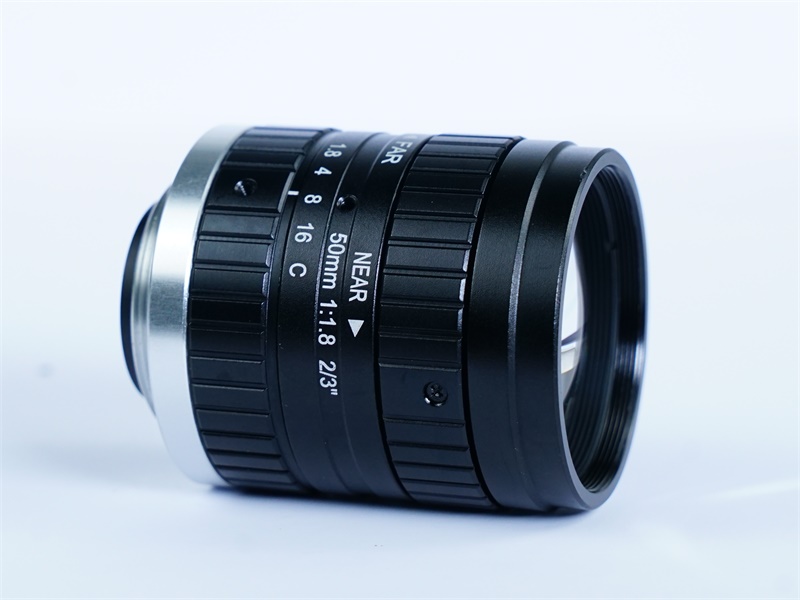

Product Name: 3MP 1080P 2/3’’ 50mm Machine Vision Camera Lens
Product advantage:
1, Variable Aperture Lens From Large aperture F2.0 to Smallest F22 (creat good depth of Focus)
2,Multi-layer coating, with higher transmittance and effective suppression of stray light
3,Use high refractive index and low dispersion precious glass, high resolution imaging optics
4, Applied For 1.3/2/3 megapixel 2/3’’C Mount Camera Lenses
5, 50mm Camera Lens is widely used in Industrial Quality control cameras, Machine vision Applications, Industry video cameras for inspection and imaging processing, Industry Microscope Camera, scientific Research, Industrial robotics, Ruggedized cameras for security and defense, Industrial Photography Optics, Industrial Surveillance and Security etc
Product technical Specification of 50mm C Mount Lens
|
Product Model |
NWA-23-3MP-50mm |
|
Image Cmos Sensor Format |
2/3’’ |
|
Photo Resolution |
3MP |
|
Focal Length |
50mm |
|
Aperture |
F1.8~C |
|
FOV(D×H×V) 2/3 inch cmos |
D12.5°/ H9.1°/ V7.5° |
|
FOV(D×H×V) 1/2 inch cmos |
D10.0°/ H7.3°/ V5.5° |
|
TV Distortion 2/3 inch cmos |
-0.22% y=5.5mm |
|
TV Distortion 1/2 inch cmos |
-0.10% y=4mm |
|
Focusing Range MOD (Minimum Object Distance) |
0.5m ~ ∞ |
|
Flange Distance |
17.526㎜ |
|
Operation Mode- Focus |
Manual with Lock |
|
Operation Mode –Iris |
Manual Variable |
|
Operation Mode-zoom |
Fixed |
|
TTL |
45.51mm |
|
Mount type |
C mount |
|
Filter Thread |
M30.5×P0.5 |
|

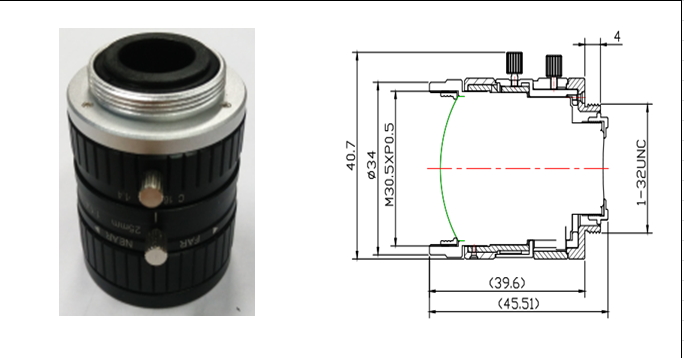

External Dimensions(mm): |
∅34*L46mm |
|
Structure |
Full Glasses Lenses+Metal Barrel |
|
Working temperature |
-10℃～+50℃ |
|
Storage Temperature Range |
-20℃～+60℃ |
50mm 2/3’’ Lenses For Industrial Applications
Application of machine vision lens, Factory Automation FA Lens
Industrial lenses are widely used in industrial testing, automation, electronic communications, semiconductors, biomedicine, scientific research and other fields.
1. Machine vision, chip, wafer surface inspection, QR code recognition
2. Teaching and research
3. Industrial image processing, industrial measurement, industrial monitoring, instrumentation, microscopic imaging,
4. Electronic component measurement, glass and pharmaceutical container measurement
5. Security monitoring at night/day
6. Solar panels, aerospace, national defense, criminal investigation, military industry
7, Intelligent Transportation System ITS
8. Wafer inspection, scratch inspection on semiconductor, metal, glass, film, wafer and other surfaces
9.Detection of engraved characters on metal surfaces, bearings, and beverage cans
10. Factory automated production, PCB board inspection
11. Medical beauty, medical surgery
12. Biometric technology, face recognition
13. Drug production monitoring
14. Food sorting
15. Automotive, FPC, mining
