1080P 1/2.7'' 4.5-148.5mm 33X AF Zoom Camera Module

2/4 MP high speed Auto Focus, No distortion,  33X Optional Zoom, All in one Camera Zoom Module

  • Item No.:

    20005
  • Payment:

    Bank T/T, Alipay, Paypal, Western Union
  • Product origin:

    China
  • Min order:

    30
  • Product weight:

    120
  • Shipping port:

    Shenzhen
  • Lead Time:

    4 days
  • Keying selling point:

    33X Optional Zoom High Speed Auto Focus All in one Zoom Camera Module
  • H.S.Code:

    90029090
  • MTF Resolution:

    2megapixels FULL HD

  • Product Detail

Product Name: 33X Motorized zoom 4.5-148.5mm Zoom Module Support near-infrared Day & night

F1.4-4.2 FHD 4MP CCTV zoom Lens and video Conference Camera Lens

Product Advantage:

1, 33X Optical Zoom for Video Conference Camera Lens Module

2, Large Vari-Focal range from short 4.5mm to 148.5mm Telephoto Zoom Lens

3, 1080P FULL HD Video Resolution, 4MP Available too now

4, High Speed Auto Iris and Auto Focus AF Zoom Camera Module

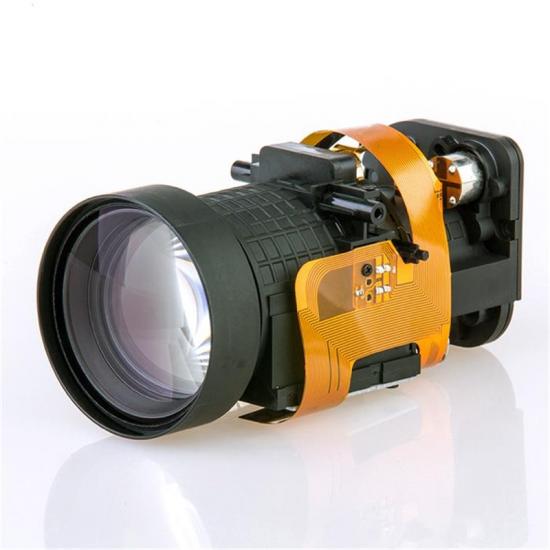

33X Zoom Module

Product Specification

Technical specification of 33X  AF zoom camera module 4.5-148.5mm vari-Focal

4.5-148.5mm zoom module Specification

1A, Zoom Ratio: 33X Optical Zoom

1, Focal length: 4.5-148.5mm±5%  Zoom Lens Range

2, Aperture F/No: 1.4(W)-4.2(T)  Wide Aperture Zoom Lens

3, Optical back focal length (OBFL): 13mm(Wide)-5mm(Tele)

4. Mechanical back focal length (MBFL): 1.7±0.2 (in air)

5. TTL: 89.78±0.1mm(in air)

6, Max image circle:∮6.6(1/2.7")(MAX∮6.9)

7, Lens structure: 13 groups,15elements

8, Mount type: not standard mount type

9, Clamp Force: 60-600gf-cm

10, FOV (D/H/V)1/2.7"

D 68.88°(W)-2.69°(T)

H 61.87°(W)-2.36°(T)

V 37.4°(W)-1.33°(T)

11, Optical Distortion sensor Type 4:3

0.3%(Wide)~1.1%(Tele)(No Distortion)

12, Relative illumination:∮6.9:52%(wide)~61%(tele)

13, CRA: 2.4°(Wide)~8.3°(Tele)

14, M.O,D.short focal:2m/Telephoto:30m-∞

15, MTF resolution    2688×1520 (4MP)

The inverse projection:(center:250 lp/mm 0.7Y:160 lp/mm )

16, Zoom operation: stepper motor (Zoom Lens Motor) driving

Focus operation: step motor,

Iris operation: Auto

17, HSF&safety: RoHS

18,  Weight: 120 gram

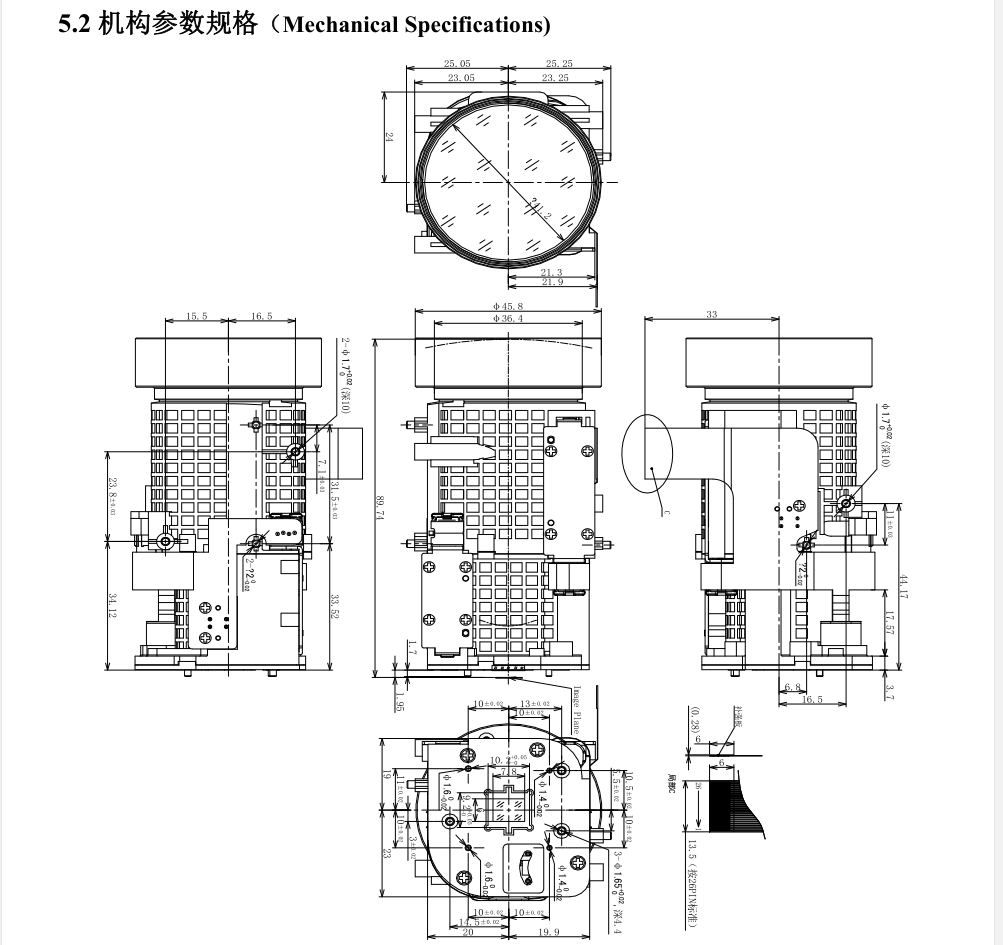

Technical datasheet of 33X Zoom Lens

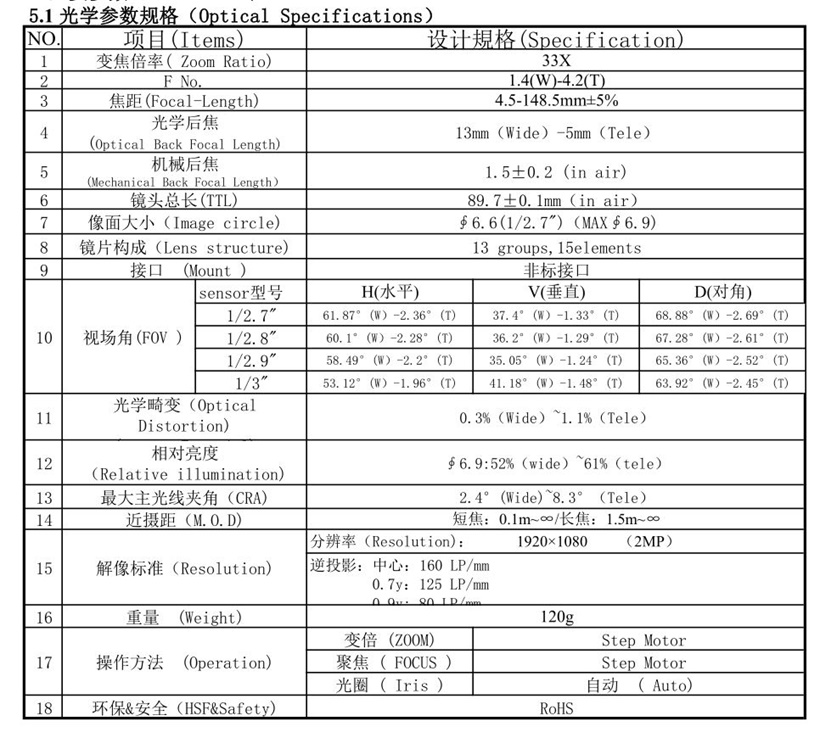

33X zoom camera module Datasheet

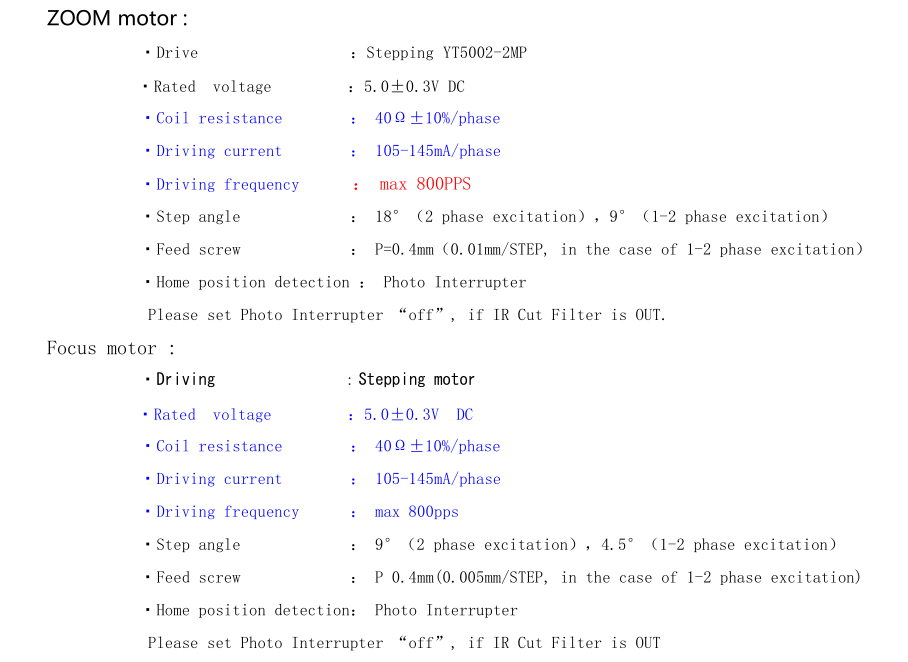

zoom lens module motor

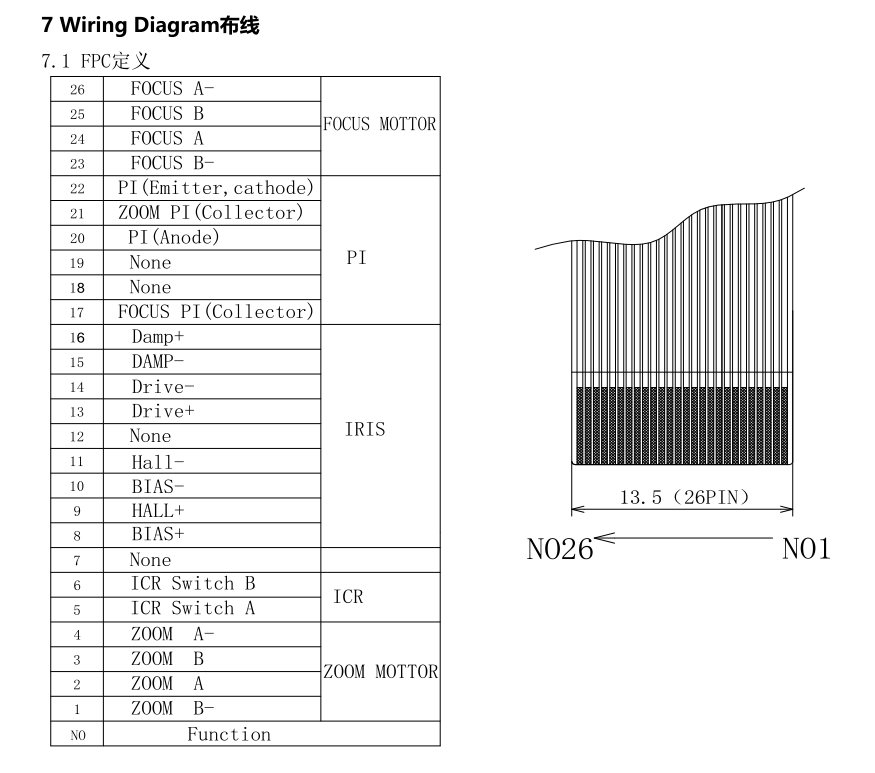

Zoom Camera Module FPC

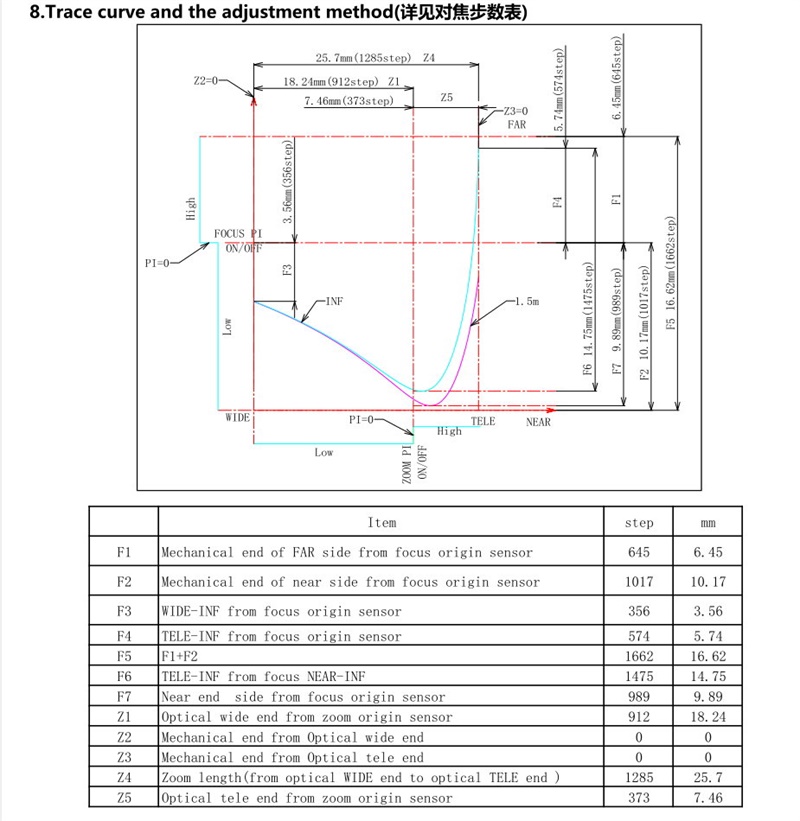

Telephoto Zoom Lens Trace Curve

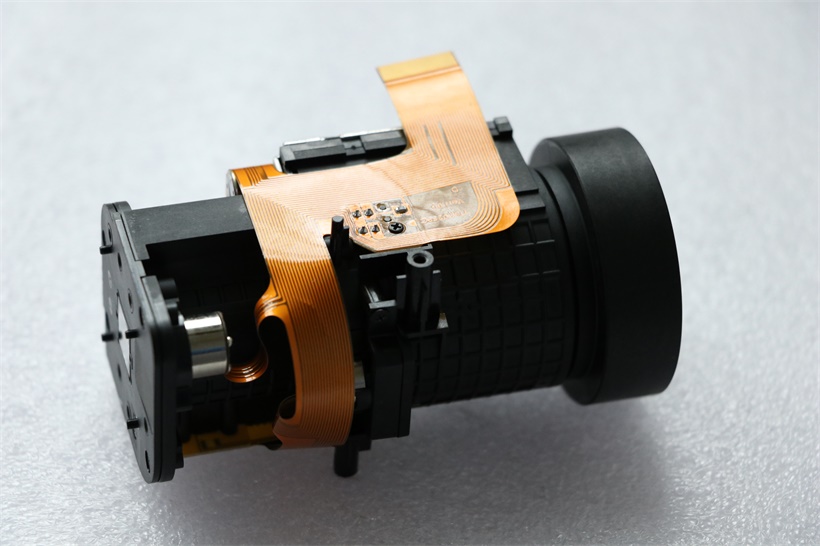

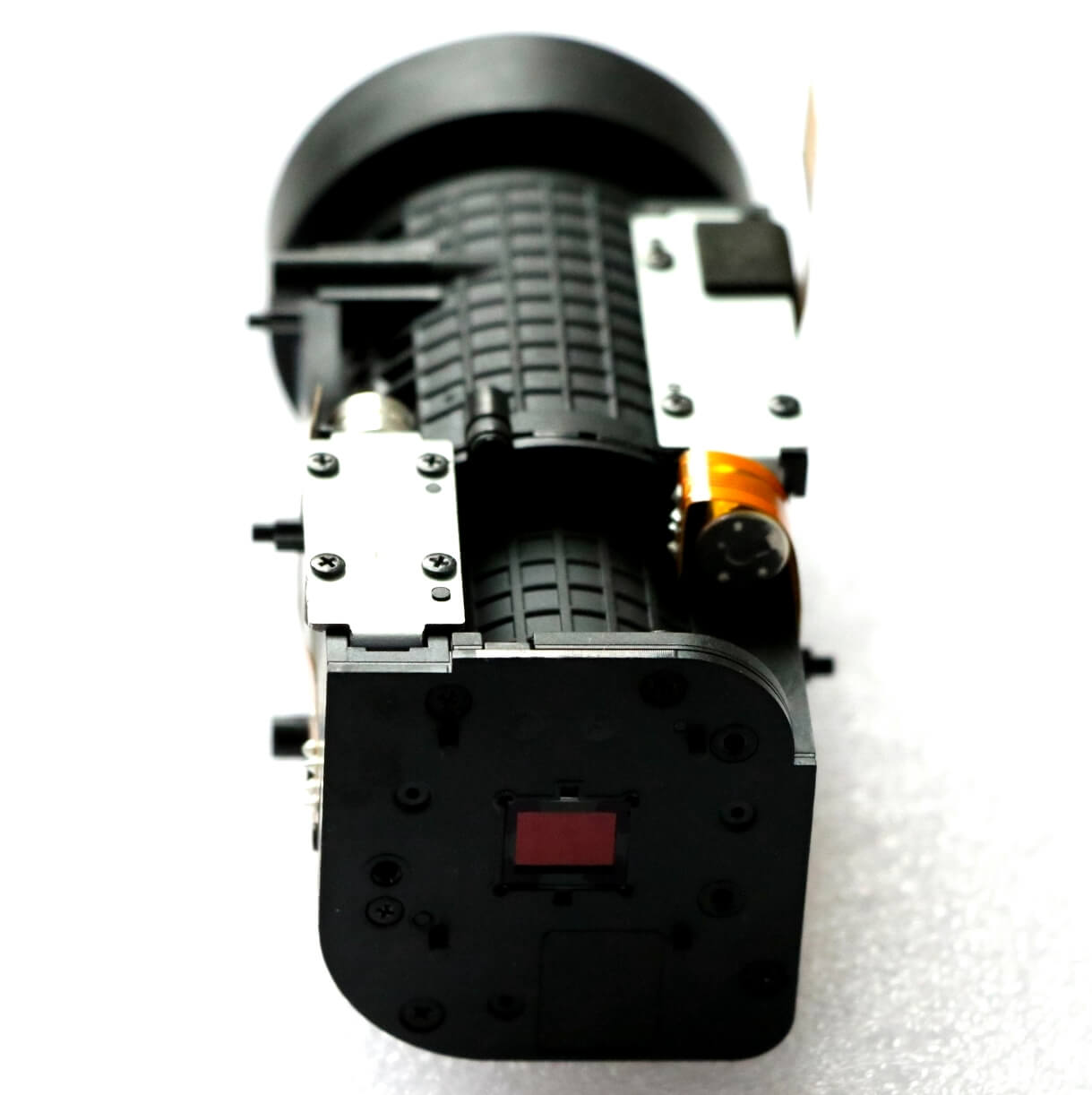

33X ZOOM Camera Lens

Product Application

1,PTZ Camera

2, High Speed IP Security Camera

3, Video Conferencing Camera

4, CCTV Zoom Camera

5, Face recognition Camera

6, Video Surveillance camera

7, Forest Camera


About US

we are China professional Varifocal Lens, fixed Focus Lens and Zoom Camera Module Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval. currently we have total 7 kinds of All in one Zoom Camera Module ( zoom Module Lens) as following  2.8-13.5mm, 8-32mm, 3.6-11mm, 2.7-13.5mm, 3.6-11mm, 4.5-148.5mm, 5.4-110mm, these advanced Zoom Camera Module can be used on advanced PTZ, CCTV Zoom Camera, Forest Camera, Video Conference Camera, Industrial Security Camera,National Defense Camera System, Coast Telephoto Camera etc, please source " zoom Module" online  to check all models, surely one model can meet your requirements. in addition, we have various motorized varifocal lens


why you can consider work with us?

1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate

2, Mostly Lens have 2 year quality warranty

3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime

include pre-sale, order, samples of course Custom-made Lenses

4, Every Quarter launch a few new Lens

5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop

6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,

Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,

M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc

7, Our sale team have more than 4 years lens sale experience and know them professionaly,

can communicate all problems freely and fastly
