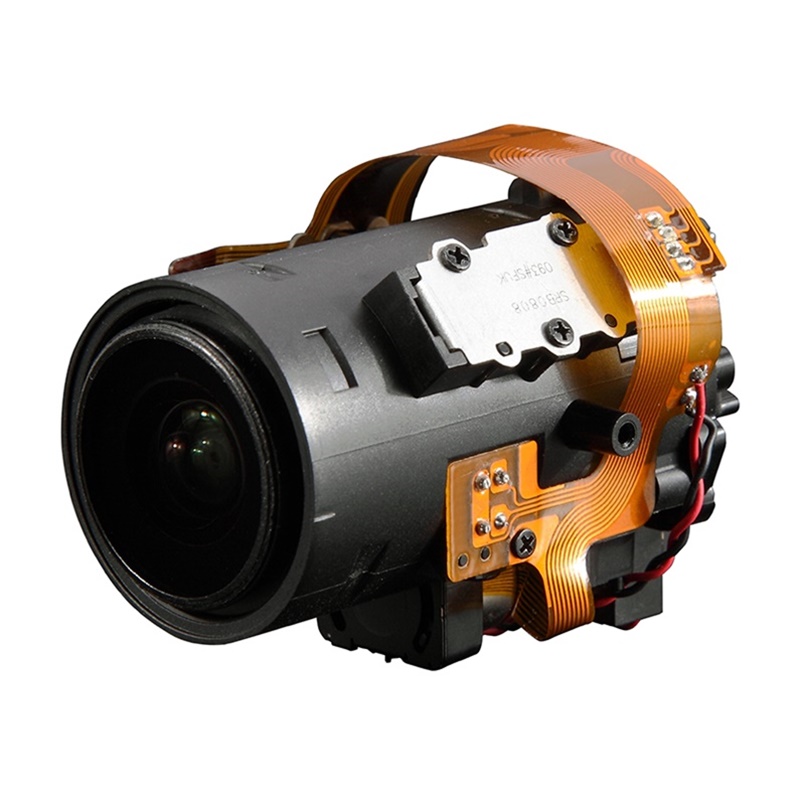

Product name: 6mp 2.7-13.5mm 5X auto focus All in one Zoom Module
Product Advantage:
1, support 1/2.7" 6MP Fast Auto Focus and Motorized Focus Zoom Camera Module
2, 5X High speed Optical Zoom
3, work well for CCTV PTZ Camera
4, CCTV Zoom Wide Angle Lens, Auto Iris Zoom Lens
Product Specification

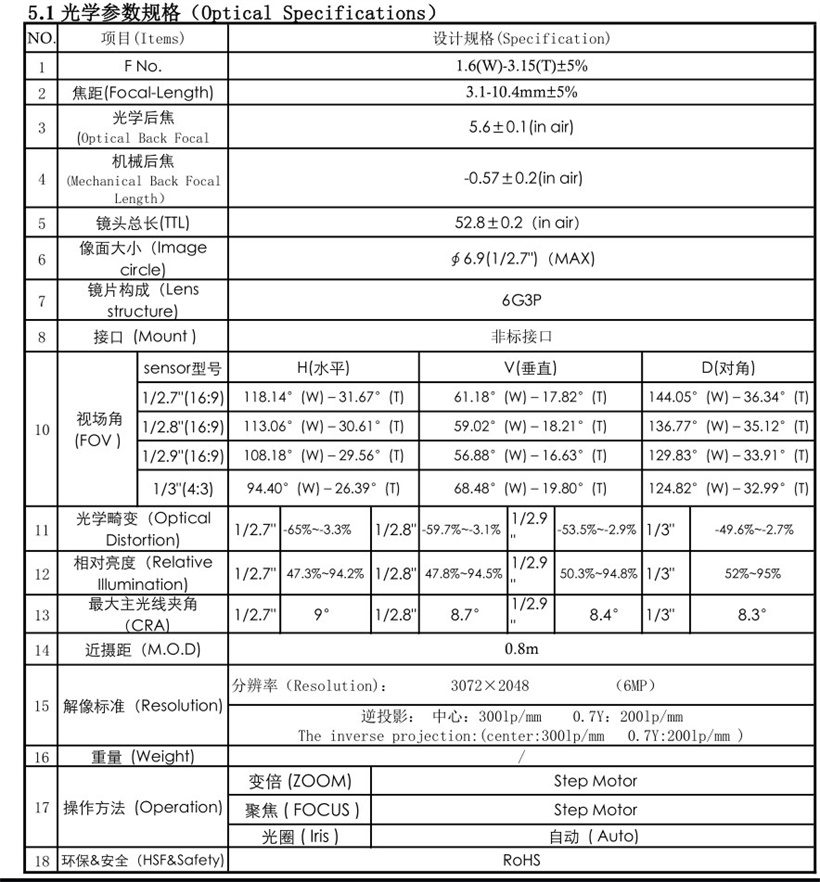

optical technical specification of 2.7-13.5mm zoom module lens
1, Effect Focal length：3.1-10.4mm±5%
2, Aperture F/No: 1.6(W)-3.15(T)±5% ±5%
3, Optical back focal length (OBFL): 5.6±0.1(in air)

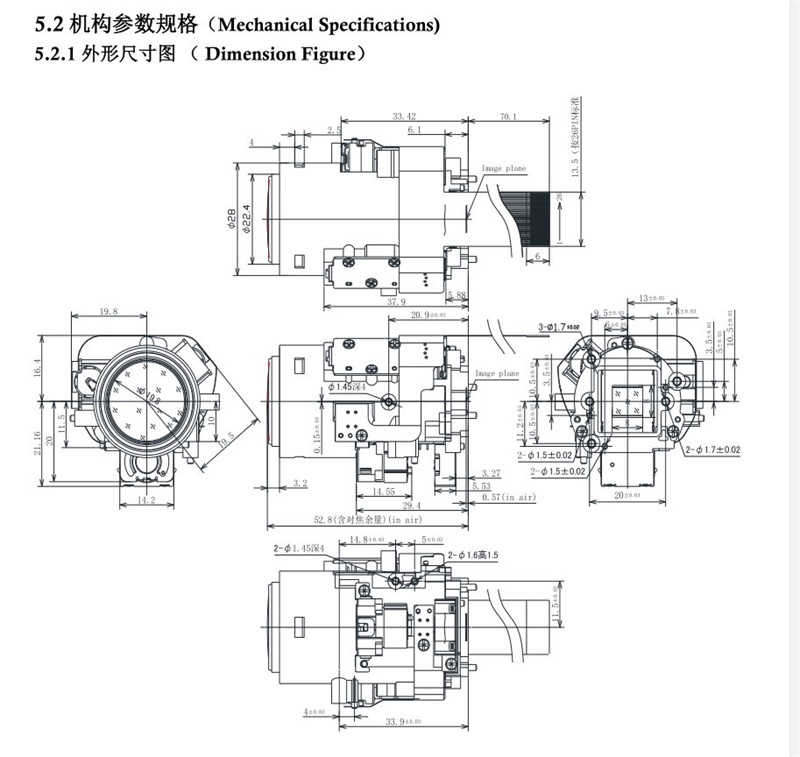

4. Mechanical back focal length (MBFL) : -0.57+/1 0.2 in Air
5. TTL: 52.8±0.2（in air）
6, Max image circle: ∮6.9(1/2.7")（MAX)
7, Lens structure: 6G3P
8, Mount type: not standard mount type
9, Clamp Force: 60-600gf-cm

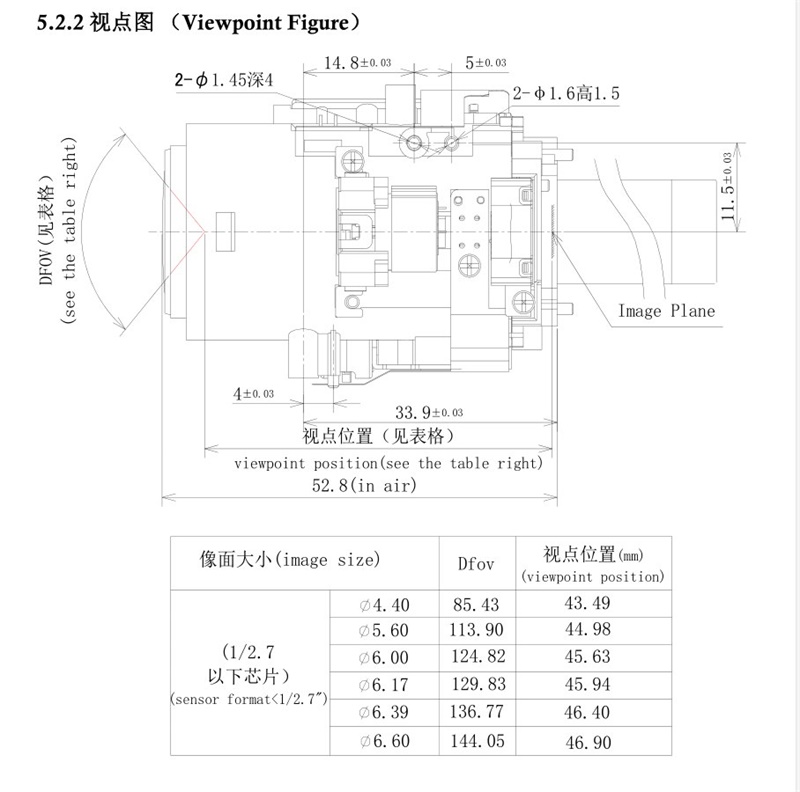

10, FOV (D/H/V)1/2.7"(16:9 ) HFOV 118.14°(W)﹣31.67°(T),
VFOV 61.18°(W)﹣17.82°(T)
DFOV 144.05°(W)﹣36.34°(T)
11, Optical Distortion: 1/2.7" sensor: -65%~-3.3%, 1/3" sensor -49.6%~-2.7%
12, Relative illumination: 1/2.7" sensor 47.3%~94.2%, 1/3"sensor 52%~95%
13, CRA: 1/2.7" sensor 9°, 1/3"sensor 8.3°
14, M.O,D.: 0.8m
15, MTF resolution: 3072×2048 （6MP）
The inverse projection:(center:300lp/mm 0.7Y:200lp/mm )

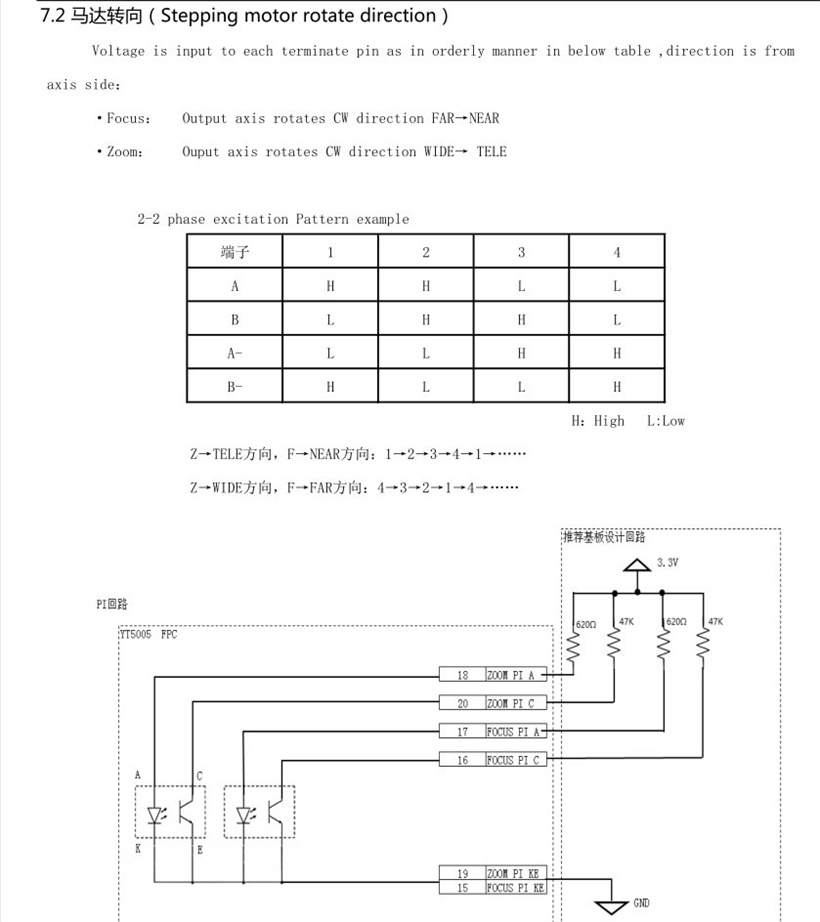

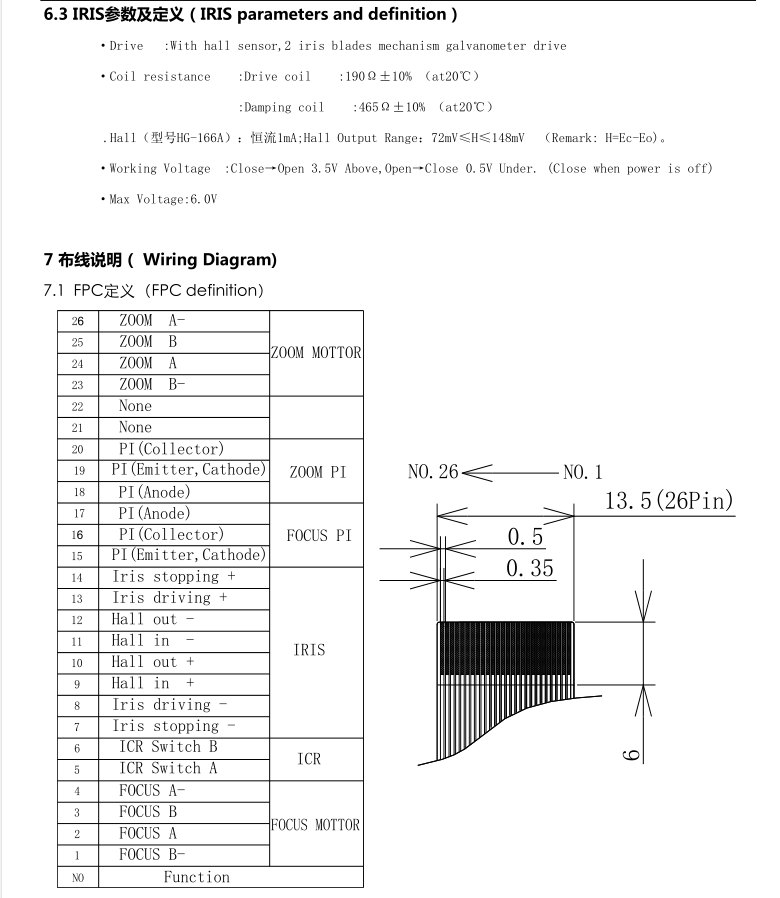

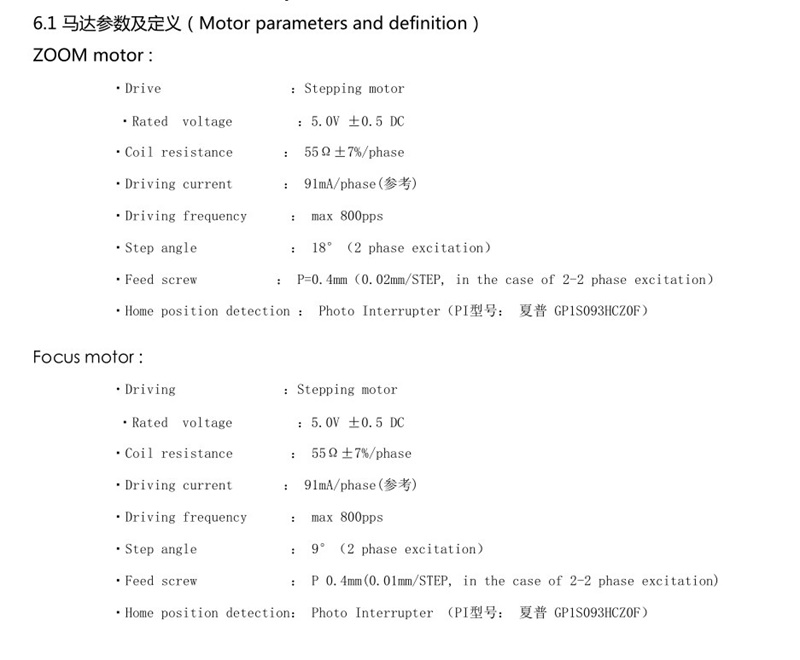

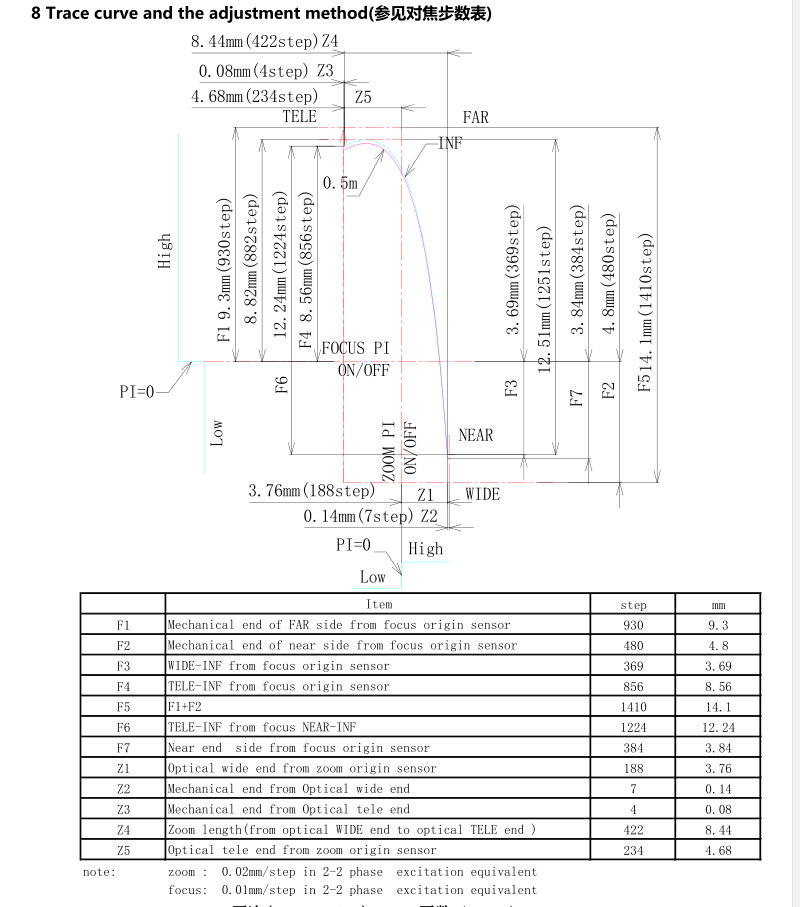

16, Zoom operation: step motor, Focus operation: step motor, iris operation: Auto
17, HSF & safety: RoHS
Product Application of All in one 2.7-13.5mm Zoom Camera Module
1，PTZ Camera
2, High Speed IP Security Camera
3, Video Conferencing Camera
4, CCTV Zoom Camera
5, Face recognition Camera
