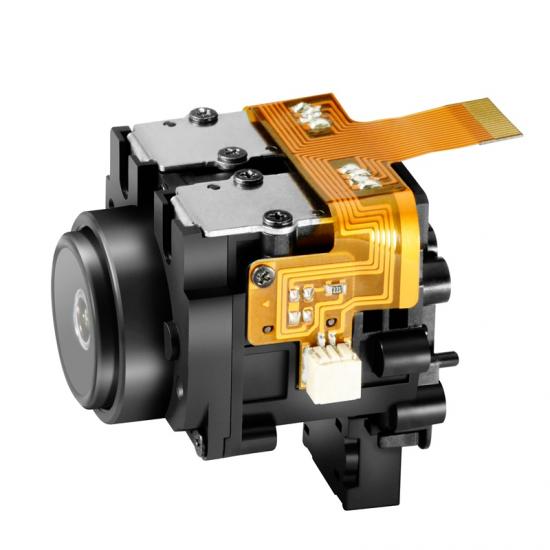

Product Name: 2.8-8mm 2.8X optical AF Camera Zoom Lens Fixed Iris
Product Advantage:
1, 2.8-8mm 2.8X Motorized Fast Zoom Lens for Mini PTZ Camera
2, Compact structure, excellent optical performance, Auto Focus Wide Angle Zoom Lens
3, 4K High Resolution CCTV Zoom Lens with 138 degree Wide Angle

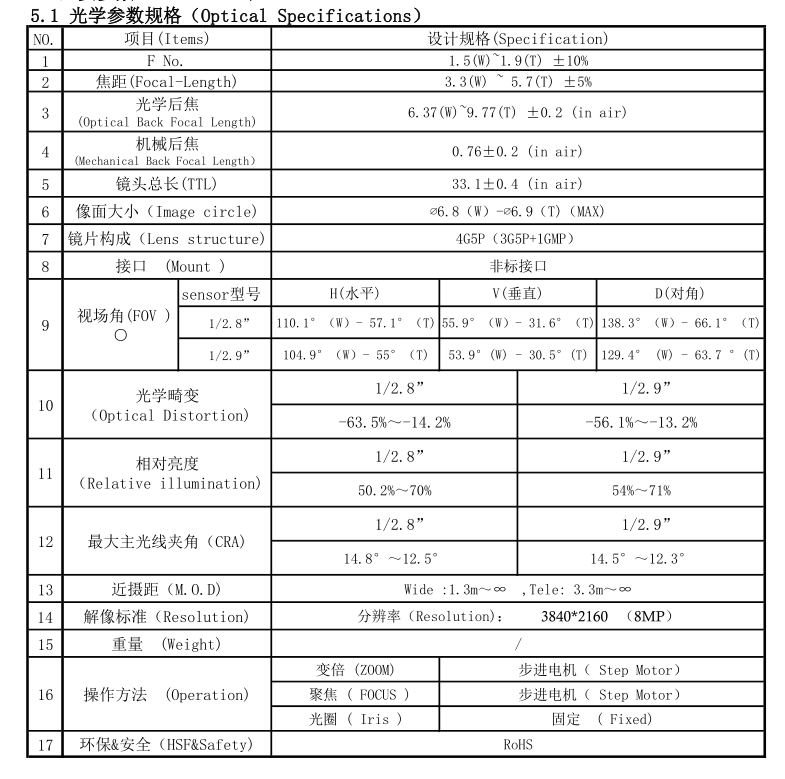

Product Specification
optical specification of 2.8-8mm motorized Zoom Lens for Camera
1, EFFECTIVE Focal length: 3.3(W) ~ 5.7(T) ±5%
2, Aperture F/No: 1.5(W)~1.9(T) ±10%
3, Optical back focal length (OBFL): 6.37(W)~9.77(T) ±0.2 (in air)
4. Mechanical back focal length (MBFL): 0.76±0.2 (in air)
5. TTL: 33.1±0.4 (in air)
6, Max image circle: ∅6.8（W）-∅6.9（T)（MAX)
7, Lens structure: 4G5P（3G5P+1GMP）
8, Mount type: not standard mount type
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V)1/2.8”
DFOV 138.3°（W）- 66.1°（T)
HFOV .1°（W）- 57.1°（T)
VFOV 55.9°（W）- 31.6°（T)
11, Optical Distortion 1/2.8”-63.5%～-14.2%,
1/2.9”-56.1%～-13.2%
12, Relative illumination 1/2.8”50.2%～70% ,
1/2.9”54%～71%
13, CRA: 1/2.8”14.8°～12.5°
1/2.9”14.5°～12.3°
14, M.O,D.: Wide :1.3m～∞ ,Tele: 3.3m～∞
15, MTF resolution: 3840*2160 （8MP）
16, Zoom operation: step motor,
Focus operation: step motor,
Iris operation: Fixed
17, HSF&safety: RoHS
Product Application
1, PTZ Camera
2, Mini IP Security Camera
3, Video Conferencing Camera
4, CCTV Zoom Camera
5, Face recognition Camera
6, Video Surveillance camera
