Product Name: 1080P Low Distortion Usb Camera with 0.01lux good Night Vision
Product Advantage:
1, Less than -1% Low Distortion USB Camera Module apply for portable Usb Camera Scanner
and used for Face Recognition Camera Module
2, 95 degree No Distortion USB Camera is used widely in Bank ATM Machines well
3, This Multi-functional High Resolution 5MP USB Camera with High Speed USB2.0 port and Free Driver, Plug and Play,
You can DIY change other M12 lens to extend more applications
4, DIY Interchangeable Lens design and different connectors change available
Product Specifications Of 1% Low Distortion USB Camera
|
Product Name |
5MP No Distortion USB Camera |
|
Cmos Sensor |
GalaxyCore ½.9 inch cmos low lux |
|
Video Resolution |
1920X1080, 1080P@30fps |
|
Lens FOV |
DFOV 95degree, HFOV 83 degree |
|
Photo Pixel |
5Megapixels |
|
Photo Format |
MJPG |
|
video output |
MJPG/YUY2 |
|
Lens Focal Length EFL |
3mm, TV distortion less than -1%, No distortion |
|
Lens Construction |
2MP 2G5P |
|
F/No Aperture |
F2.2 |
|
AGC |
OSD |
|
Minimum illumination |
0.001LUX |
|
S/N Ratio |
≥52dB |
|
Gammar |
0.45 |
|
Backlight Compensation |
OSD |
|
Shutter |
30f/s |
|
White balance |
Auto |
|
Working temperature |
-10~+50℃ |
|
Power |
5V |
|
Audio Microphone |
Built in Microphone, Support |
|
System Sync |
inner Sync |
|
Power consumption |
150mA |
|
Product Size |
25*25*10mm |
|
Signal Type & Interface |
usb 2.0 interface, digital Signal |
|
Length of Cable |
1Meter |
|
System |
WIN10/WIN7/WIN8/Linux/Android/Apple Mac |

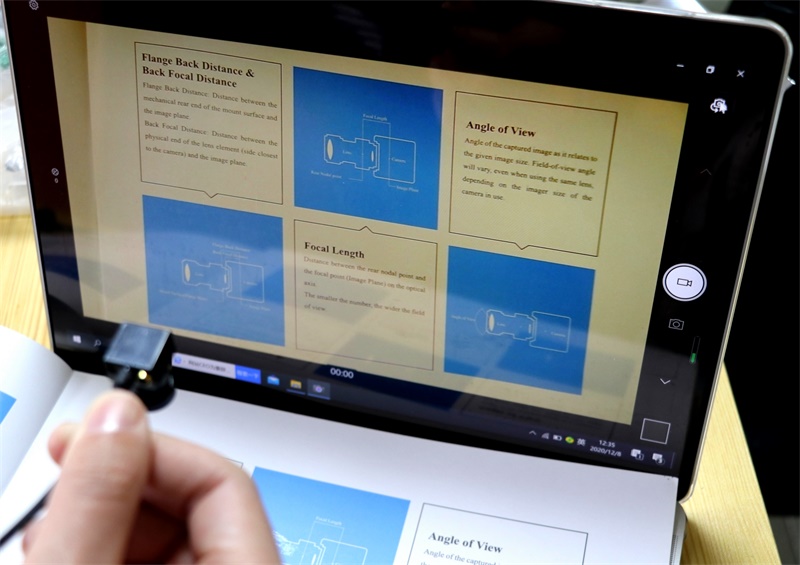

Actual Image for texts when it work as No Distortion USB Camera
Note and remarks
1, You can change our other focal length M12 board lens include but not only 2MP Lens,
200 degree Fisheye Lens, MTV Lens, Pinhole Lens, Button Lens, Black light Night Vision F1.0 Lens,
2.8mm/4mm/6mm/8mm CCTV lens, Wide Angle Lens etc to meet your special requirement of projects
2, We can change standard USB cable into foldable adjustable Snake Pipe (shorter length)
3, its Interface connector can be changed or custom by USB Micro, BNC/AHD, OTG Type C etc
4, You are kindly advised to equip extra 3-4pcs various focal length Lens to meet various application together in your order, then you can interchange various lens freely locally, no need buy more cameras more at higher cost again
Product Application of 3mm No Distortion USB Camera
1, USB Document Scanner, Portable Face Recognition Webcam, Iris Recognition Camera
2, Customs Board Control, Port and Boarder Control, ATM Machine, self service terminals equipment that need Face Recognition,
Video conference
3, Medical beauty equipment ,Voting system , medical treatment, attendance machine and
Precise Laboratory Instruments that need Low or No Distortion
Application of Goobuy USB Cameras
(1) All-in-one machine, POS equipment, ATM Machine, POS equipment, STB,
automatic vending machine, Advertising LCD Displayer,
(2)Mobile phone (OTG), AR/VR, smart box TV BOX, 3D scanner,MID Ipad, laptop, Any Andriod Device.
(3)Embedded Systems, Iris/Face recognition technology，Smarthome, automobile Industry, Vehicle video applications
(4)attendance machine, industrial endoscopes, medical instrument，Industrial Machine and equipments，Voting system
(5) Home/Commercial/Industry security equipment,Robot and machine vision,Monitoring 3D printer,safety box, Baby Monitoring
(6) AI intelligent machine/Systems, Video conference / video teaching
(7) Laboratory Instruments, remote control monitoring, environmental monitoring
Car and boat control, oil field equipment, Assisting medical treatment
You can view our real video recording from this Super Low Distortion USB Camera as follow, of course on youtube too
