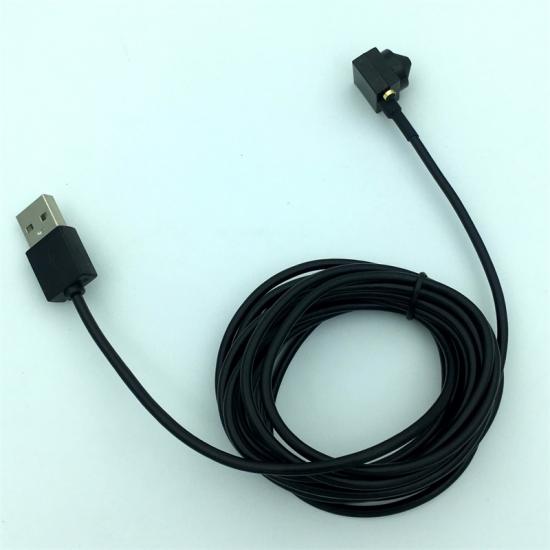

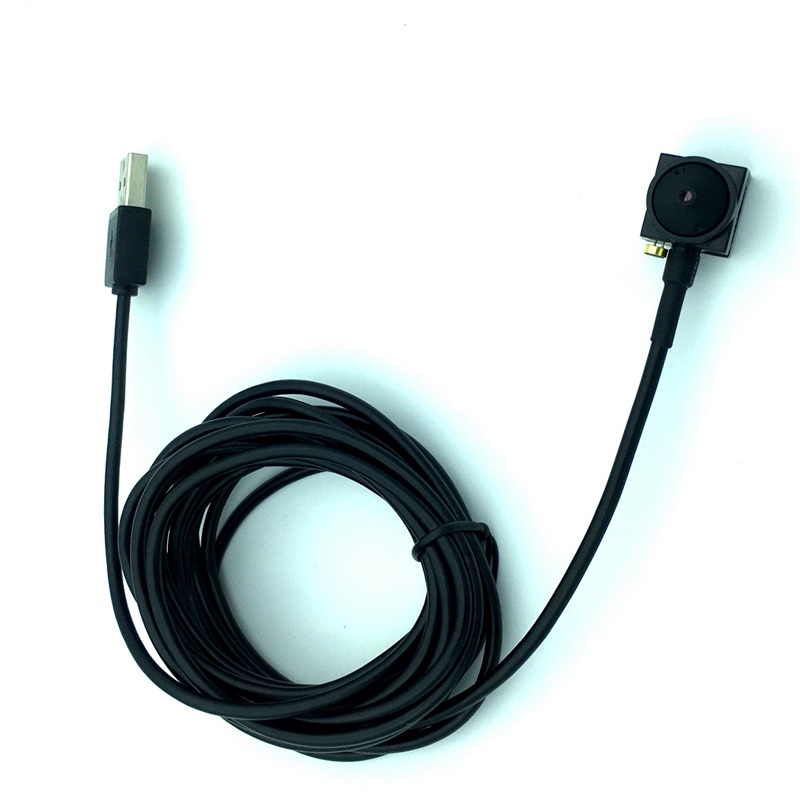

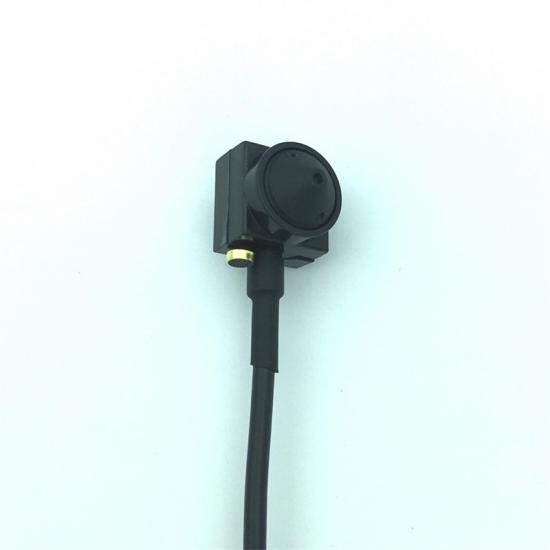

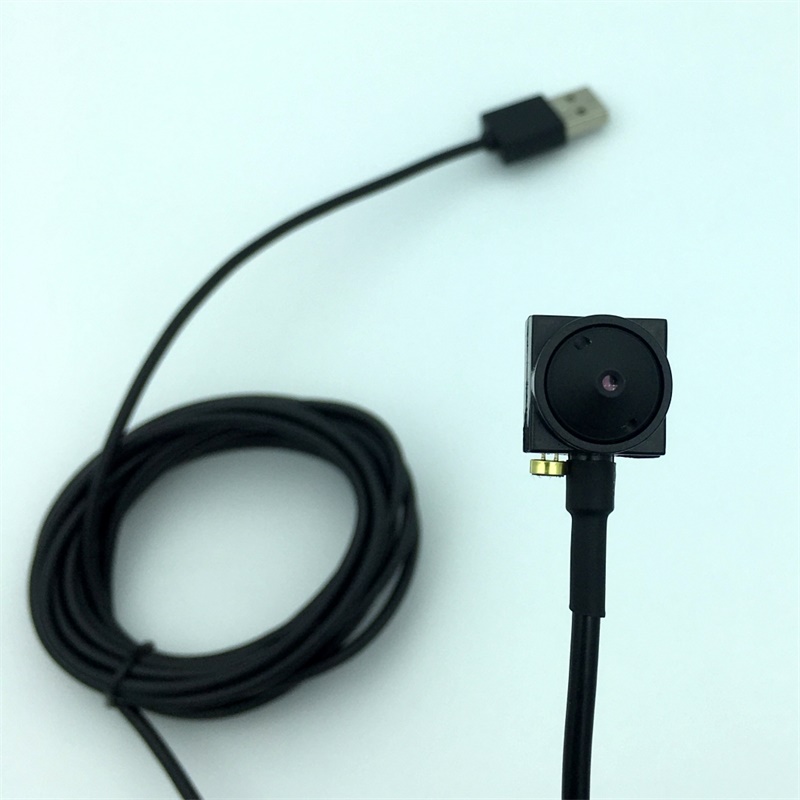

Product Name: 145 degree Pinhole Embedded Usb Camera For Industrial use Surveillance Security
Product Advantage
1, 1080P FHD Embedded Usb Camera with Free Drive and Plug and Play, local video storage
2, Interchangeable Lens design, you can change our other board MTV/CCTV/Wide Angle Lens
3, Mini compact design apply for Embedded Camera Module in Machine
4, Widely used in portable Surveillance Camera, Industrial Cameras and CCTV Security with 100% DIY, Easy Operation
Product Specifications Of 2MPIndustrial Camera USB
|
Product Name |
2.1mm Pinhole Embedded Vision Camera |
|
Cmos Sensor |
GalaxyCore ½.9 inch cmos 0.01 low lux |
|
Video Resolution |
1920X1080, 1080P@30fps |
|
Lens FOV |
DFOV 145degree, HFOV 120degree |
|
Photo Pixel |
2Megapixels |
|
Photo Format |
MJPG |
|
video output |
MJPG/YUY2 |
|
Lens Focal Length EFL |
2.1mm cone pinhole lens m12 |
|
Lens Construction |
2MP 1G4P |
|
F/No Aperture |
F2.0 |
|
AGC |
OSD |
|
Minimum illumination |
0.01LUX |
|
S/N Ratio |
≥52dB |
|
Gammar |
0.45 |
|
Backlight Compensation |
OSD |
|
Shutter |
30f/s |
|
White balance |
Auto |
|
Working temperature |
-10~+50℃ |
|
Power |
5V |
|
Audio Microphone |
Support, |
|
System Sync |
inner Sync |
|
Power consumption |
150mA |
|
Product Size |
15*15*10mm |
|
Signal Type & Interface |
usb 2.0 interface, digital Signal |
|
Length of Cable |
3Meter ( 1m/5m/other length available custom made) |
|
System |
WIN10/WIN7/WIN8/Linux/Android/Apple Mac |
Note & Remarks
1, You can change other types M12 lens freely, DIY interchangeable Lens design
2, We can adjust USB cable Length or change it with foldable Pipe (shorter size)
3, its Interface connector can be changed or custom by USB Micro, BNC/AHD, OTG Type C etc
4, You can add and equip extra cone pinhole Lens like 2.1mm, 2.5mm,2.8mm, 6mm, 8mm, 10mm, 12mm, 15mm,
25mm, button Lens etc in your order, which will help you save more money but extend more applications easily
Product Application
1, Bank ATM, all-in-one machine, POS equipment
2, Self service terminals equipment, Automatic Vending Machines Security
3, Any embedded camera modules systems in embedded vision kit

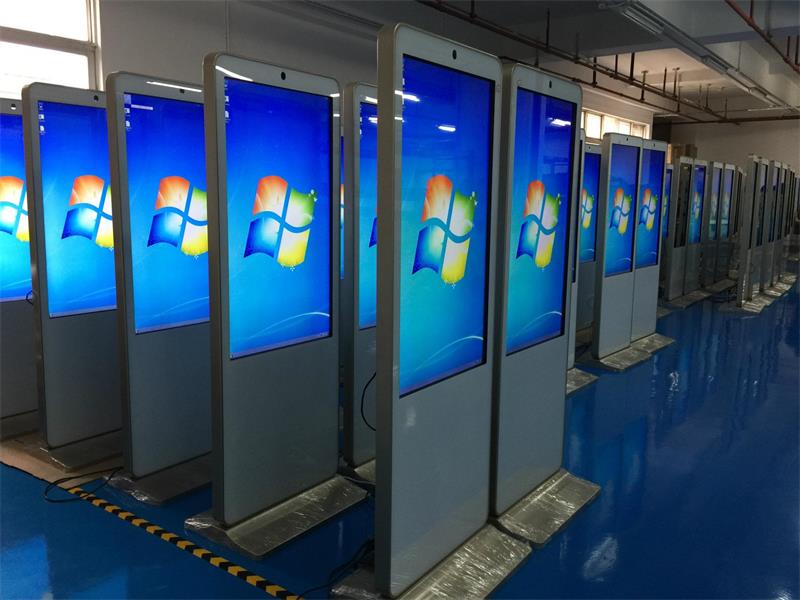

4, ADVERTISING LCD DISPLAYER WITH Embedded USB Camera
5, Big Machines or Equipment Device that need built-in mini pinhole cameras version inside
