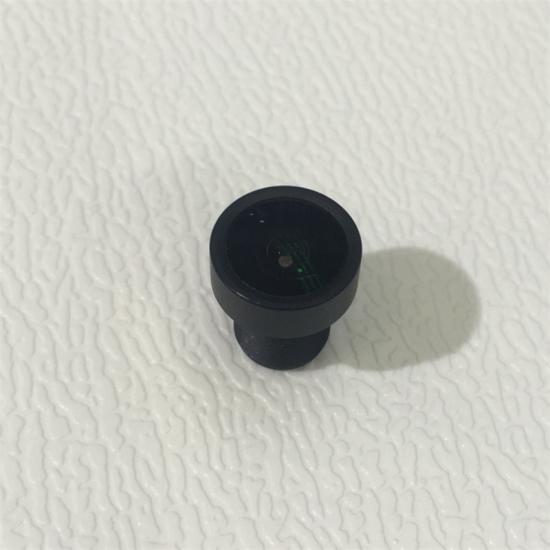

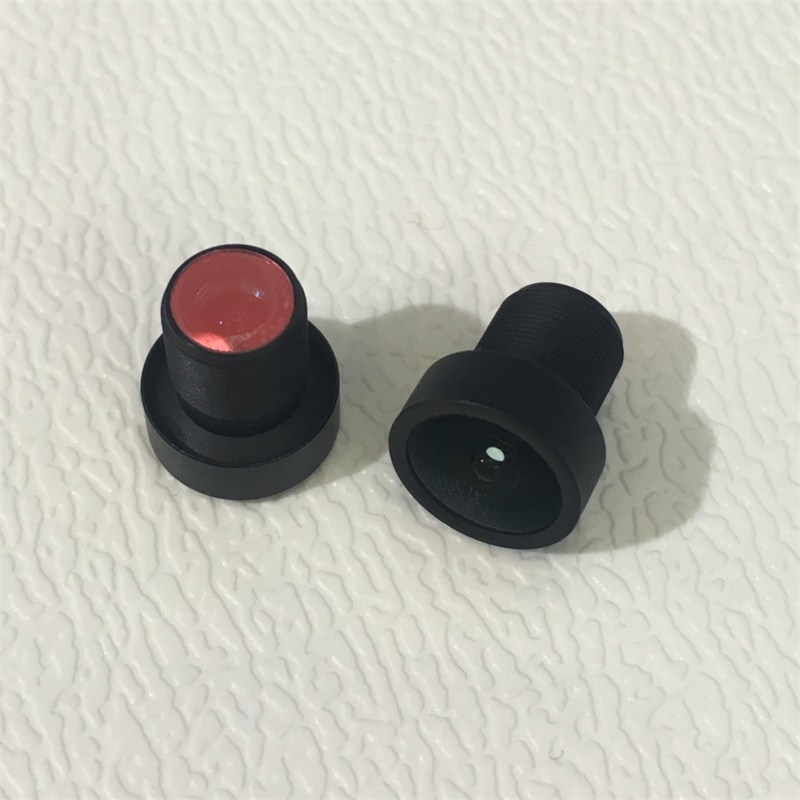

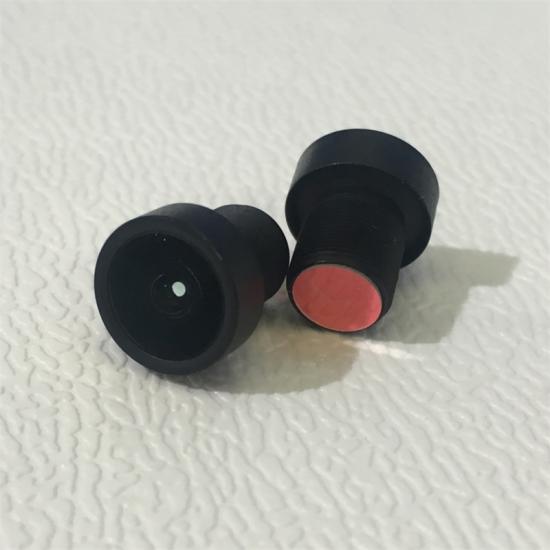

Product Name: 1/4'' OV9712 m7 4G 2.15mm metal board wide angle lens horizontal 116 degree OV9732
Product Advantage
1, 1/4 Wide Angle Lens 140 degree M7
2, 2.15mm Short Focal Length Lens Fixed Focus
3, Work well with OV9732 Camera Module
4, Used in Board Camera, MTV Lens, Cmos Board Module etc
product Specification

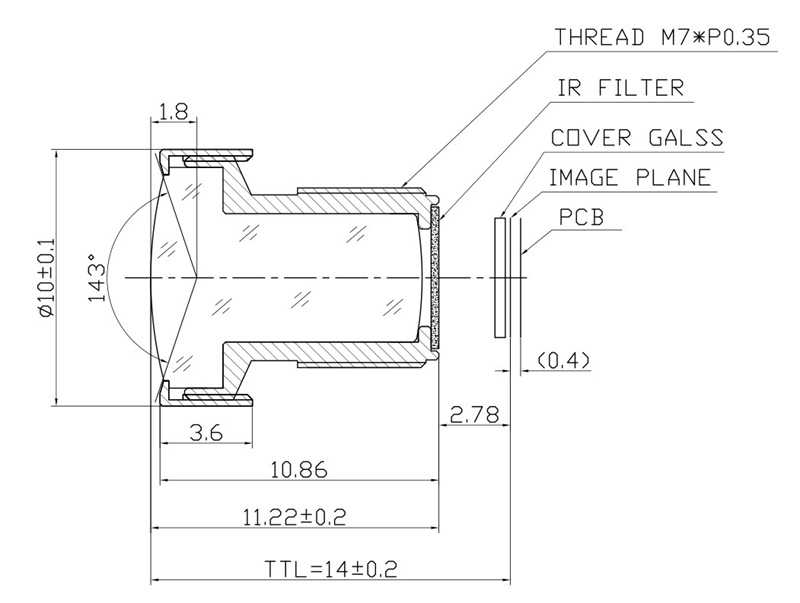

keying technical feature of 2.15mm wide angle lens m7
1，TTL: 14.0mm
2, EFFECT Focal length: 2.15mm
3, Aperture F/No: 2.4
4, Optical Back Focal Length: 3.44mm
5, Mechnical Back Focal Length: 2.28mm
6, Max image circle: ￠4.65
7, FOV (D/H/V) 140/116/60.5 degree
(1/4 OV9732 Cmos Sensor)
8, Optical Distortion; H: -12.1%, V:-43.2%
9, Relative illumination： >67.9%
10, CRA： <12.7 degree
11, mount type： M7*P0.35
12, Lens construction： Glass&IR
13, IR Coating： T=50%@650+/-8nm
14, working temperature： -40 to +80 degree
15, storage temperature： -40 to +90 degree
16, diameter of lens cap： ￠10

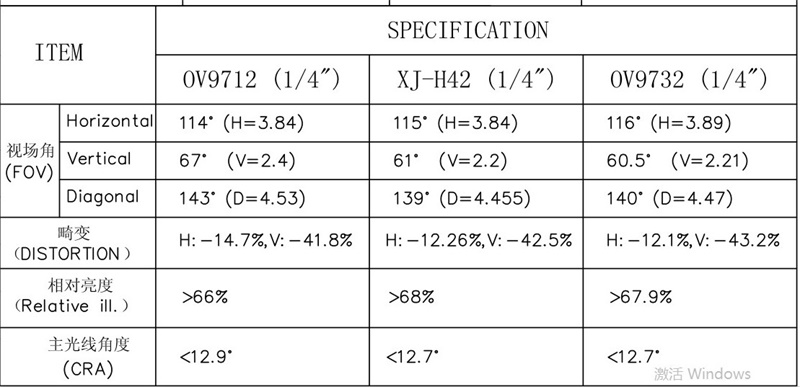

Technical datasheet of 1/4 Car Camera Lenses
Product Application
1, Lens for Car Front View Camera
2, Lens for Car rearview Camera,
3, Lens for Car Black Box, Car DVR Camera
4, Lens for mini sport action Camera
5, Lens for smart home Camera Lens
6, Lens for Drone Camera
7, Lens for Mini CCTV Camera
8, Lens for Mini video recorder
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
About US
we are Chinese professional Plastic Lens, Glass Lens and other optical Lens suppliers where have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment.Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.
Main Lens cover Car camera Lens (Lens Automotive),CCTV Lens, Fisheye Lenses, Zero Distortion Lens, Pinhole Lens, Standard M12 camera Lens, Varifocal Lenses etc.of course we provide Lens Shop Online here, Wholesale or retails or Agent and Custom Made Lense
