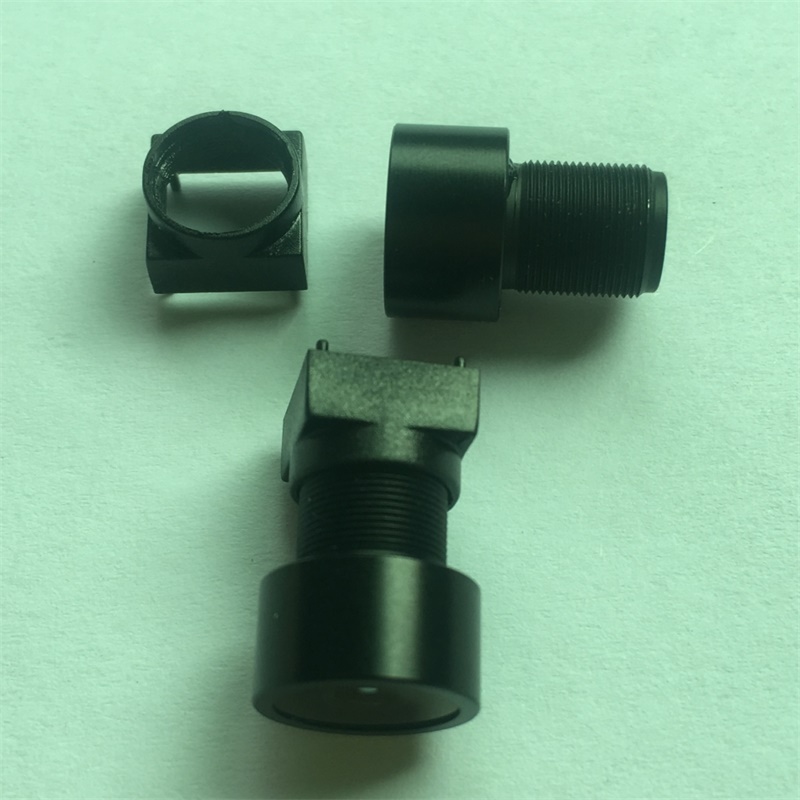

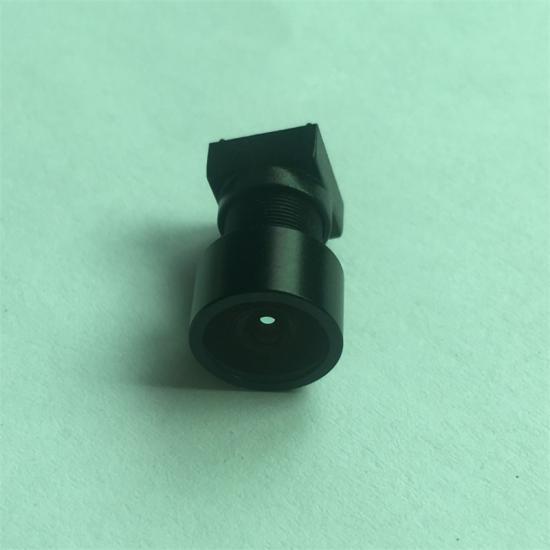

Product Name: 1/3'' AR0330 3mm M7 wide angle 150 degree lens for FPV drone camera
Product Advantage
1, 108 degree Horizontal Wide Angle M7 Lens
2, Compact M7 design suit for Drone Camera, FPV， UAV
3, CE and RoHS Approval, ODM or Custom made Lenses available
4, All Lens will be free from maintenance within Quality warranty period ( 2 years)
Product Specification
keying technical feature of 3mm m7 UAV FPV camera lens

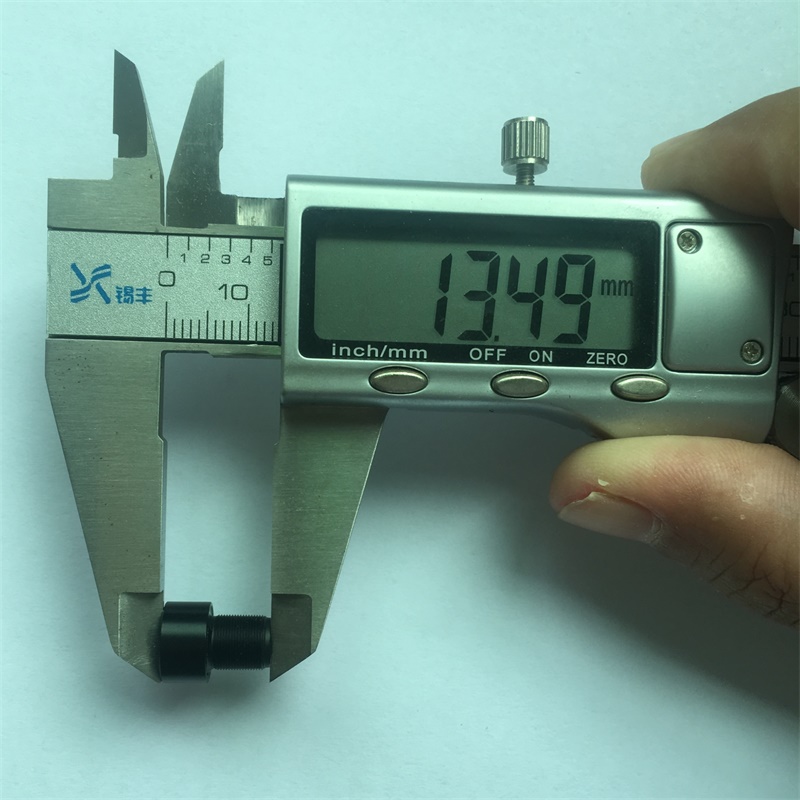

1，TTL: 16.06mm
2, EFFECT Focal length: 3.0mm
3, Aperture F/No: 2.4
4, Optical Back Focal Length: 5.44mm
5, Mechnical Back Focal Length: 2.6mm
6, Max image circle: 6.23
7, FOV (D/H/V): 150.2/108.4/67 degree
(1/3 AR0330 Cmos Sensor)
8, Optical Distortion: H:-15.5%, V: -40%
9, Relative illumination: >81%
10, MTF Resolution: 4MPX
11, mount type: M7*P0.35
12, Lens construction: 5G+1IR
13, IR Coating: T=50%@650+/-8nm
14, working temperature: -40 to +80 degree
15, storage temperature: -40 to +90 degree

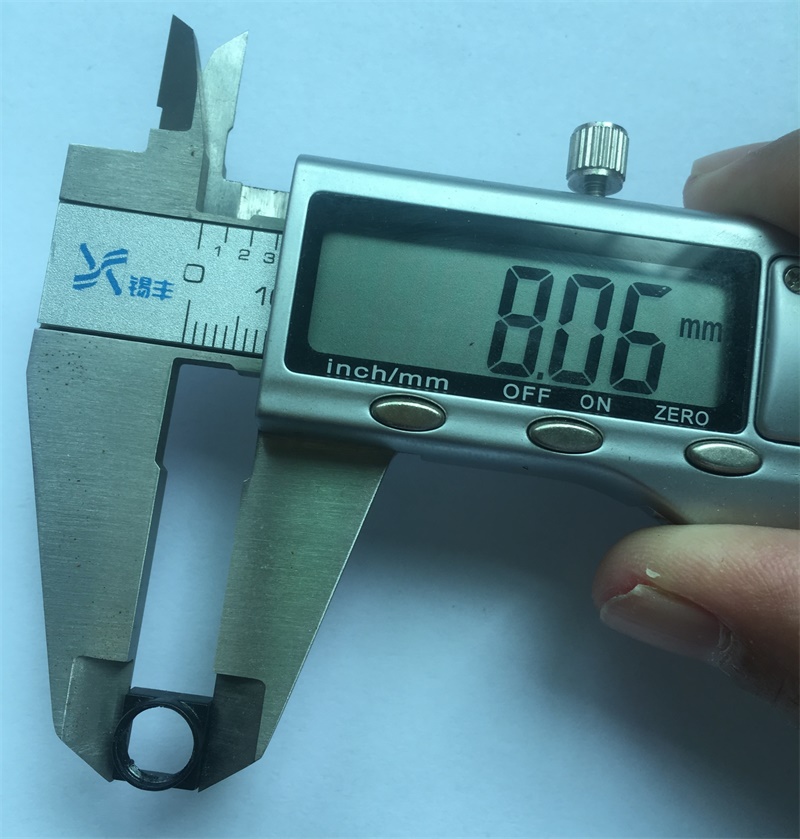

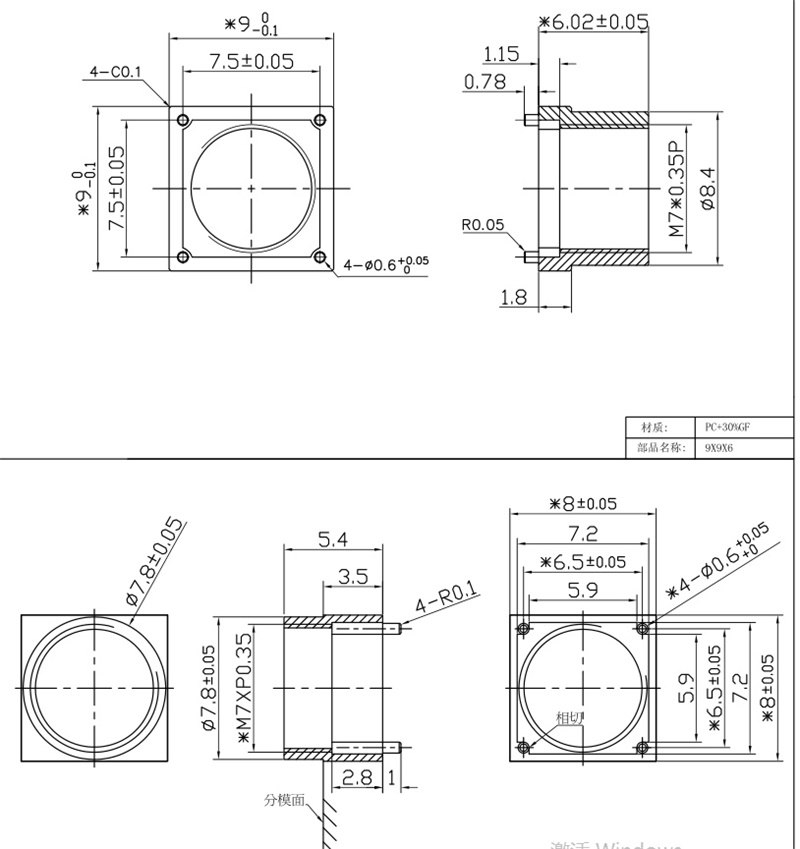

16, size of lens holder: 8*8mm

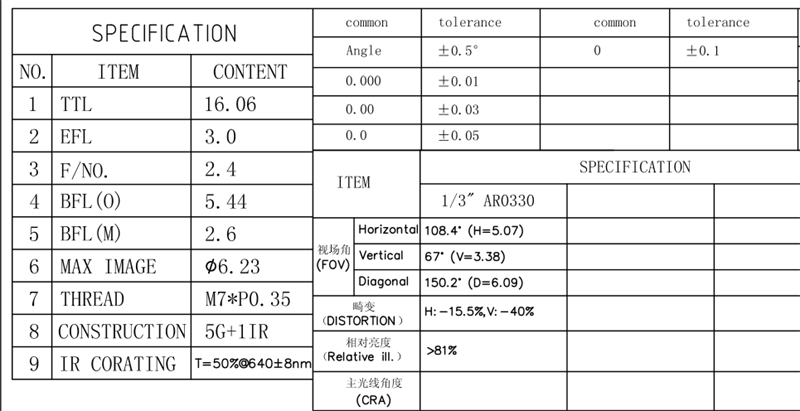

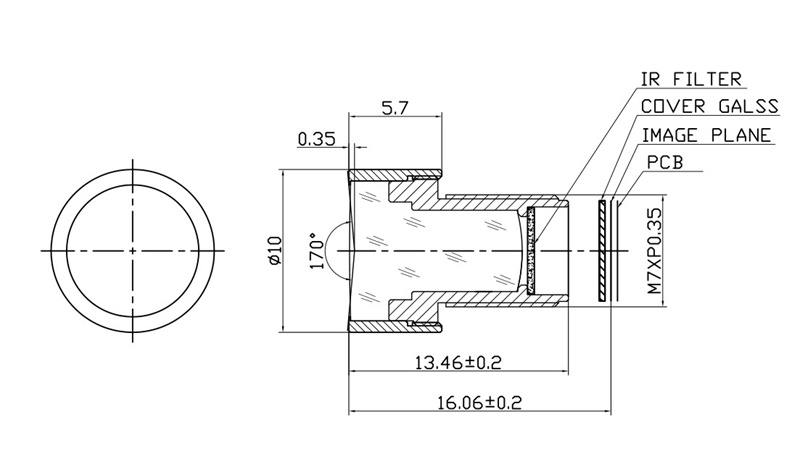

technical datasheet of wide angle lens m7
Product Application
1, Lens for Fish eye Camera
2, Lens for Car rearview Camera, Front View Camera
3, Lens for Car Black Box, Car DVR Camera
4, Lens for mini sport action Camera
5, Lens for smart home Camera Lens
6, Lens for Drone Camera
7, Lens for Mini CCTV Camera
8, Lens for Mini video recorder
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
