Product Name: 6mm M16 lens mount 8 Megapixels CCTV Lens M16 4K F1.6 1/1.8'' lens with ICR
Product Advantage
1, F1.6 Starlight Night Vision Camera Lens M16
2, Support large format to 1/1.8’’ cmos 8MPX
3, Work well for any M16 Lens mount Night Camera
4, Work well for 4G wifi CCTV battery Camera
5, barrel made of aluminum alloy raw material, surface oxidized, All black Design
Product Specification

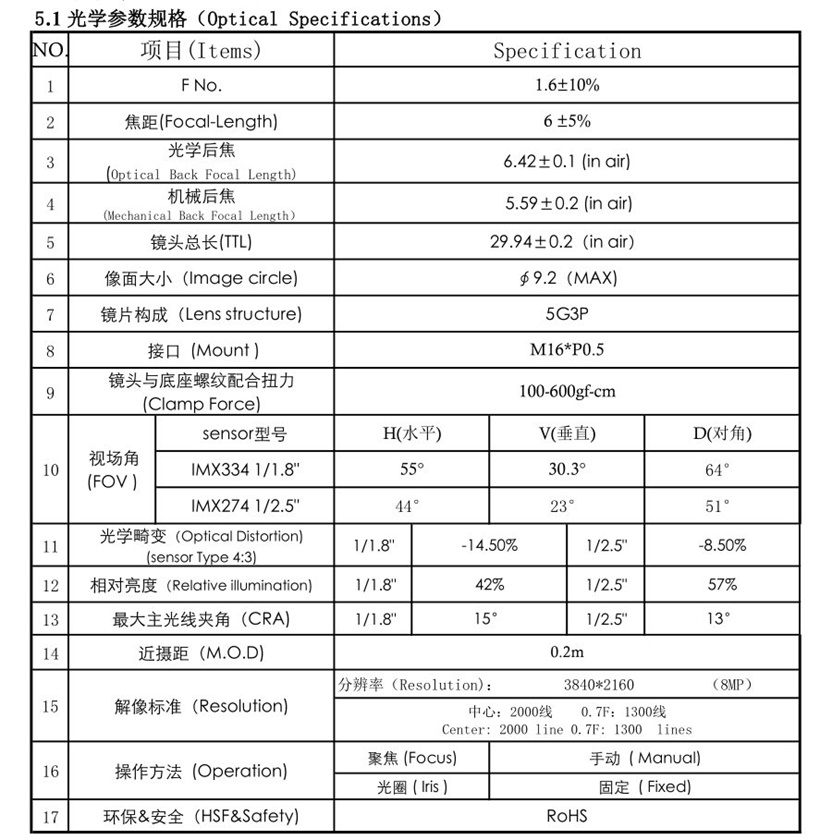

optical specification of 6mm 4K m16 Night Cameras Lens CCTV
1, Focal length: 6 ±5% Fixed Focus length Lens
2, Aperture F/No: 1.6±10% Starlight Night Vision Camera Lens
3, Optical back focal length (OBFL): 6.42±0.1 (in air)
4. Mechanical back focal length (MBFL): 5.59±0.2 (in air)

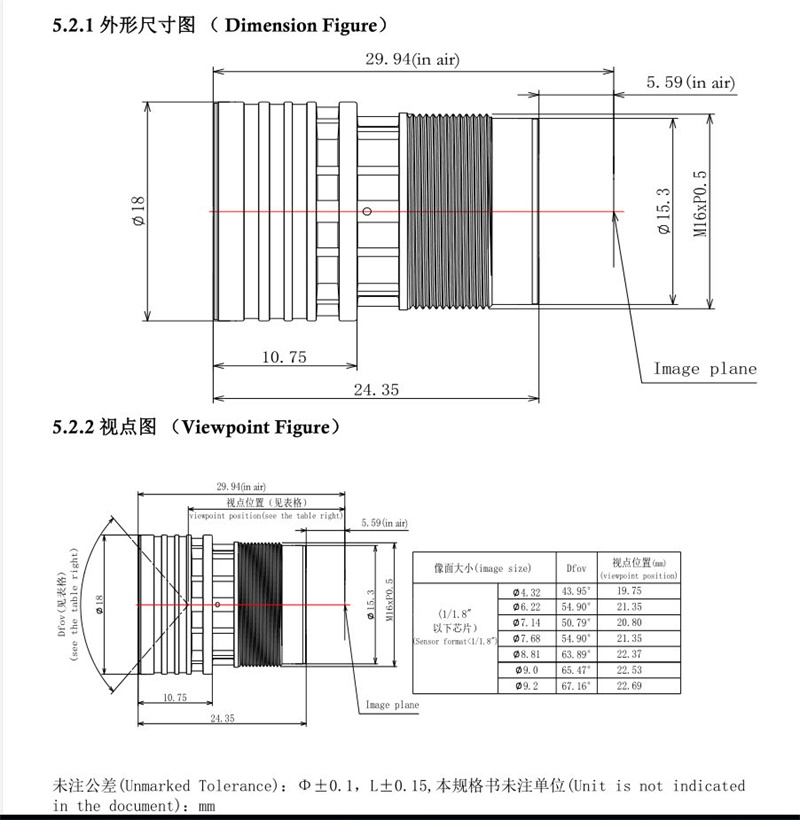

5. TTL: 29.94±0.2（in air）
6, Max image circle: ∮9.2（MAX) 1/1.8’’ large size Cmos
7, Lens structure: 5G3P
8, Mount type: M16*P0.5
9, Clamp Force: 100-600gf-cm
10, FOV (D/H/V) IMX334 1/1.8" D64°/H 55° / V 30.3°
IMX274 1/2.5" D51°/ H44°/ V23°
11, Optical Distortion
sensor Type 4:31/1.8"-14.50% , 1/2.5"-8.50%
12, Relative illumination: 1/1.8"42% , 1/2.5"57%
13, CRA: 1/1.8"15° ,1/2.5"13°
14, M.O,D.0.2 meter
15, MTF resolution: 3840*2160 （8MP）Ultra 4K,
high resolution Lens
16, Focus operation: manual
Iris operation: fixed
17, HSF&safety: RoHS
Keying technical data of starlight night vision 6mm M16 Lens
Lens Application
1, CCTV Camera Lens, Starlight Camera Lens
2, Surveillance camera, Wireless security Camera
3，IP Network Camera, POE Camera, SDI camera
4, Bullet Camera, Dome Camera, AHD Camera
5, Wifi Camera, VR 360 WifiCamera, Bulb Wifi Camera
6, Night Camera, Night Vision Camera
7, Floodlight Camera, Indoor/ourdoor Camera
8, Security Smart Home Camera
9, 4G/ Solar Panel/ Battery Camera
10, Wifi door Phone Camera, doorBell Camera, USB WebCam,
11, Baby Monitor,Video Recorder
12, Lens for Hikivision and Dahua Camera
About us
we are Chinese professional Plastic Lens, Glass Lens and other optical Lens suppliers where have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment.
Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens cover Car camera Lens (Lens Automotive),CCTV Lens, Fisheye Lenses, Zero Distortion Lens, Pinhole Lens, Standard M12 camera Lens, Varifocal Lenses etc. of course we provide Lens Shop Online here, Wholesale or retails or Agent and Custom Made Lense
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China.Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens, Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera.their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5,CS Mount, C mount, F mount Industrial Camera Lenses too。welcome to share your lens requirement or product idea with us to discuss and proceed， thank you very much
