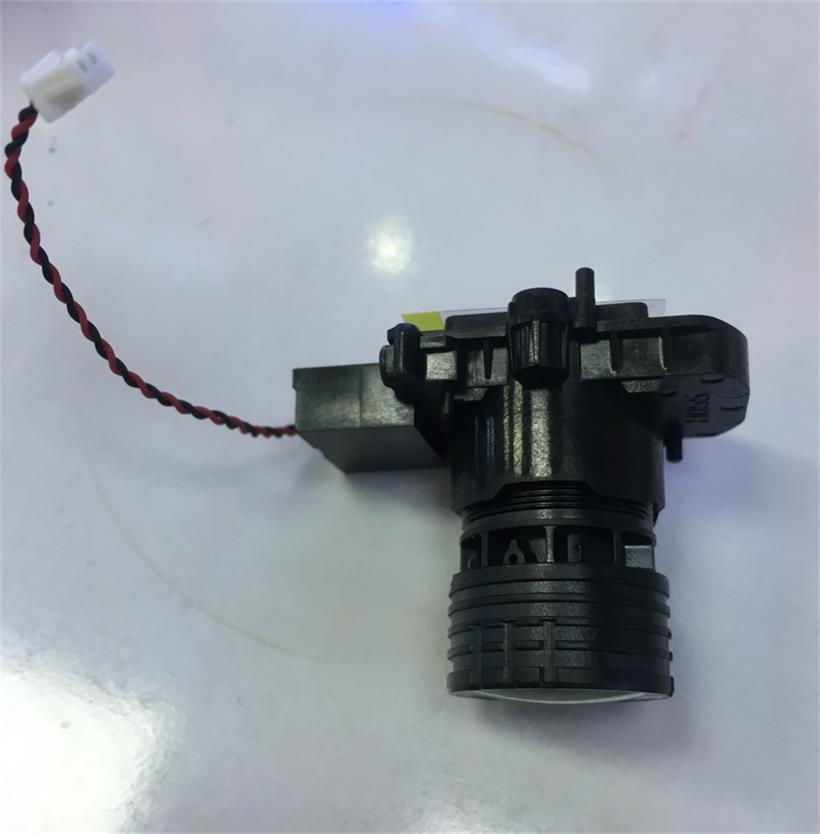

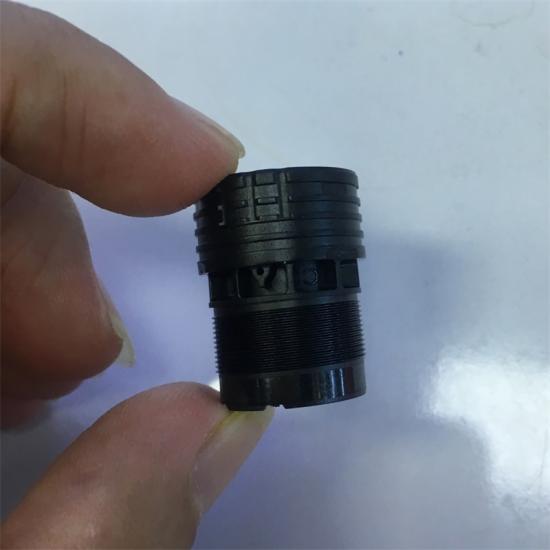

Product Name：4mm 8MP 1/1.8'' large Format Lenses, starlight m16 lens HFOV 87.5 degree
Product Advantage:
1, 1/1.8 inch and F1.6 starlight for CCTV Security Camera
2, Low distortion, Top quality 4K image
3, Remove and correct unexpected spherical aberration by using asperical Lenses
4, 8 megapixel Lens for 4K Surveillance Cameras M16
Product Specification
optical specification of 4K 4mm m16 lens
1, Focal length: 4mm±5%
2, Aperture F/No: 1.6±5% starlight Lens M16 Good night vision
3, Optical back focal length (OBFL): 29.86mm±0.1 (in air)
4. Mechanical back focal length (MBFL): 6.08mm±0.2 (in air)
5. TTL: 29.86mm in air
6, Max image circle: ∮9.2 mm（MAX)
7, Lens structure: 5G3P
8, Mount type: M16*P0.5
9, Clamp Force: 60-600gf-cm
10, FOV (D/H/V)1/1.8" sensor 16:9
D 101.5° / H 87° / V 47.3°
11, TV Distortion 1/1.8" sensor 16:9 -12.2%, 1/2.5"-7.8%
12, Relative illumination 1/1.8"48% , 1/2.5"61%
13, CRA: 1/1.8"14.7° ,1/2.5"11°
14, M.O,D./ Focus range 0.2m~∞
15, MTF resolution 3840×2160 (8Megapixels) 4K
Center 250Lp/mm ; 0.7y：200Lp/mm ; 0.9y：125Lp/mm
16, Focus operation: manual
Iris operation: fixed
17, HSF&safety: RoHS
18, Spectral Transmission>85%@550nm ,>83%@650nm , >70%@850nm
19, Operating temperature -20℃~+60℃
20, Net weight: 7 gram

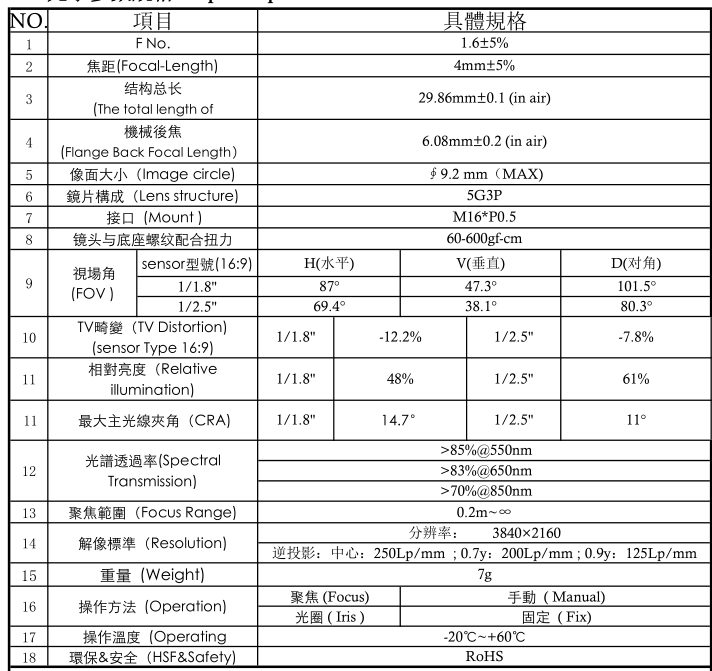

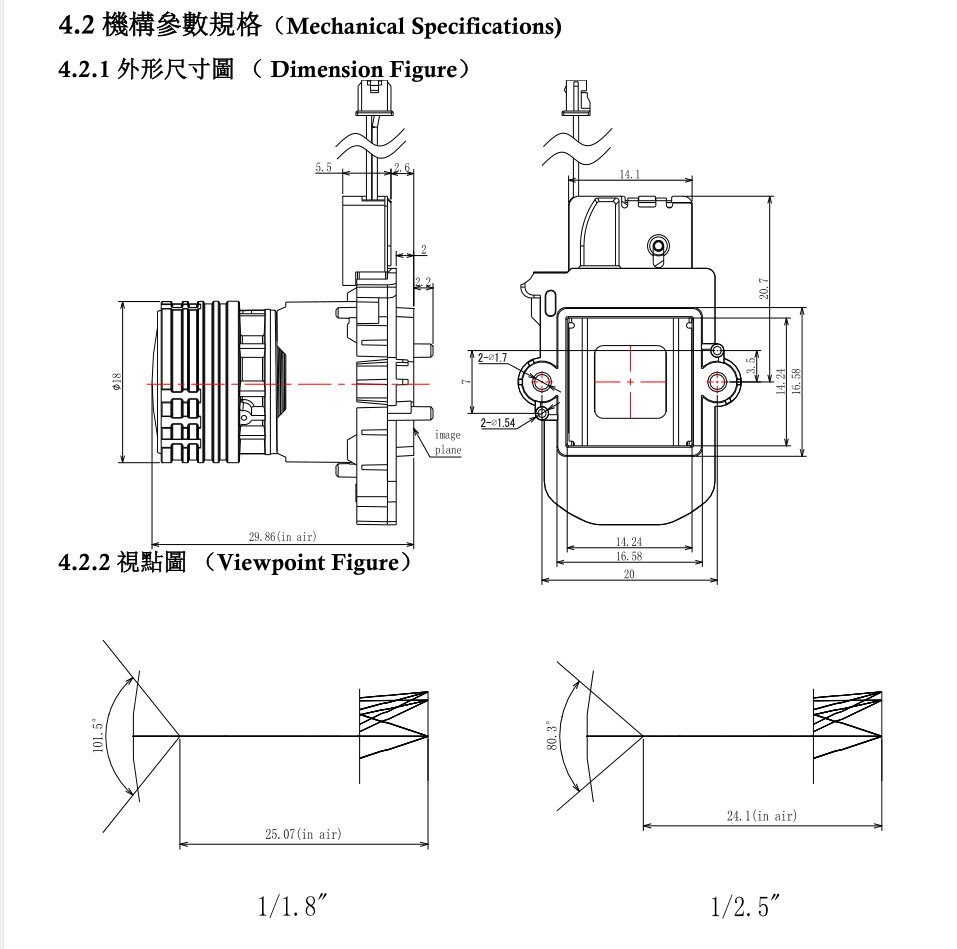

Technical Datasheet of 4mm CCTV Lens M16
Product Application
1, Lens for Night Cameras, Night Vision Cameras
2, Lens for 8MP CCTV Security Camera，
3, Lens for 4K Surveillance Cameras
3, Lens for Professional IP Camera
4, Lens for Truck Camera, Bus Camera, Trailer Camera
5, Lens for Starlight Bullet Camera
6, Lens for Automobile Camera
7, Lens for Wifi Door phone Camera
We are Various kinds of Glasses Lens Manufacturers in China, mostly top quality Glasses material are imported from Japan famous big companies, of course also provide Lens Online Shopping, one-stop Lens shop for all CCTV Lenses and Consume Electronics Lense
Custom Lens
we are Personalized Custom-design and Custom-Made Lenses Manufacturer in China.Currently we can Custom Camera Lens include CCTV Camera Lens, Custom Fish Eye Lens,Custom M12 Lens, Custom Car Camera Lens, Custom Varifocal Lens, Custom M16 Lens Custom M7 Lens, Customized Lens for Action Camera Gopro and Smart home Camera. their specification include M6*P0.35, M7*P0.35,M12*P0.5, D14/M14, M16*P0.5, CS Mount, C mount, F mount Industrial Camera Lenses too。welcome to share your lens requirement or product idea with us to discuss and proceed， thank you very much
Optical Lens Assembly ( After Glass lenses are ready ok)
The production process of lens assembly:
1, Assembly ( Full Automatic or semi-automatic or manual hand-made)- 2,QC Projection-3, Staff Appearance inspection- 4, Gluing --5 waterproof testing -- 6 MTF Testing - 7 Lock lens Cap - 8, QC Again - 9 warehouse
