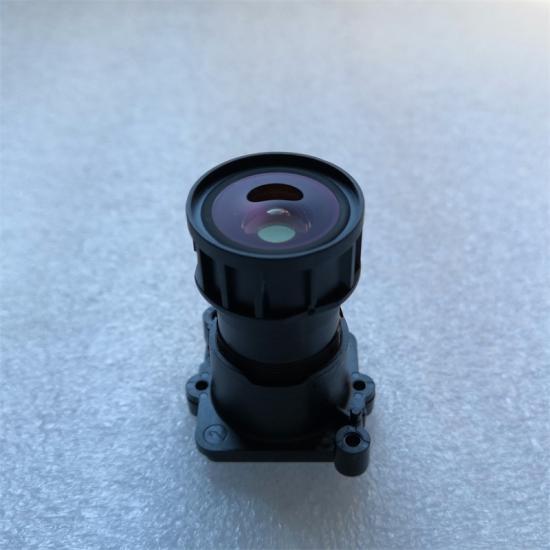

Product Name: 5.1mm F1.0 black light m16 cctv lens mount 1/1.8'' 8MP 4K HFOV 95.2 (equivalent 4mm focal length)
Product Advantage:
1, F1.0 largest Aperture Dark Light Lens for CCTV
2, 8 Megapixels top resolution Lens perfect for Night Vision Camera
3, Remove and correct unexpected spherical aberration by using asperical Lenses
4, Super Low Lux Black Light work well too
Product Specification

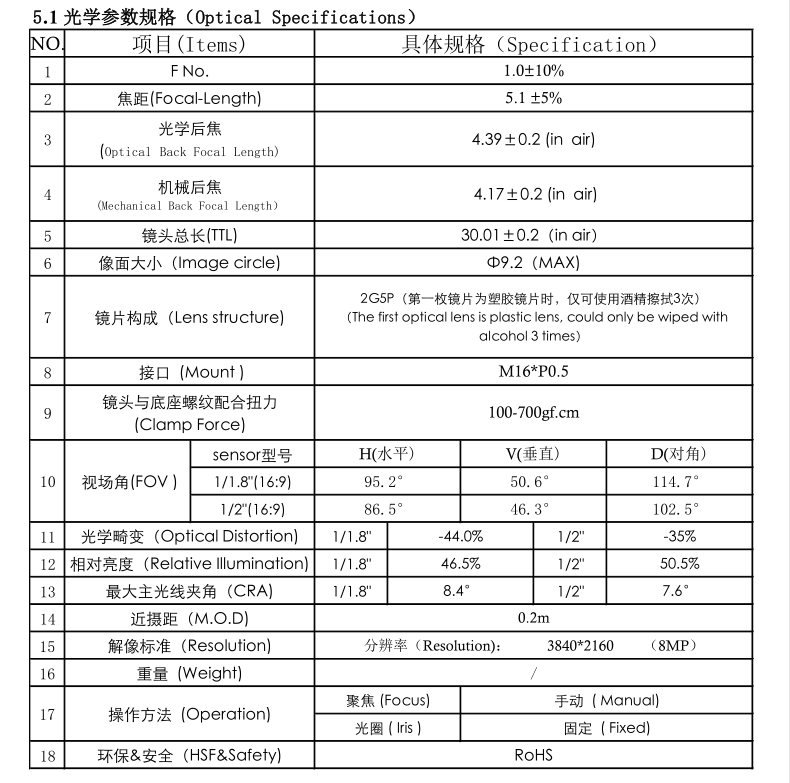

optical specification of 5.1mm 4K m16 Dark Light Lens
1, Focal length: 5.1 ±5%
2, Aperture F/No: 1.0±10% Dark Night vision visible
3, Optical back focal length (OBFL): 4.39±0.2 (in air)
4. Mechanical back focal length (MBFL): 4.17±0.2 (in air)
5. TTL: 30.01±0.2（in air）
6, Max image circle: Φ9.2（MAX)
7, Lens structure: 2G5P
8, Mount type: M16*P0.5
9, Clamp Force: 100-700gf.cm
10, FOV (D/H/V)1/1.8"(16:9)
D 114.7° / H 95.2° / V 50.6°
11, Optical Distortion 1/1.8"-44.0% ,1/2"-35%
12, Relative illumination 1/1.8"46.5% , 1/2"50.5%
13, CRA: 1/1.8"8.4°1/2"7.6°
14, M.O,D.: 0.2meter
15, MTF resolution: 3840*2160 （8MP）
16, Focus operation: manual
Iris operation: fixed
17, HSF&safety: RoHS

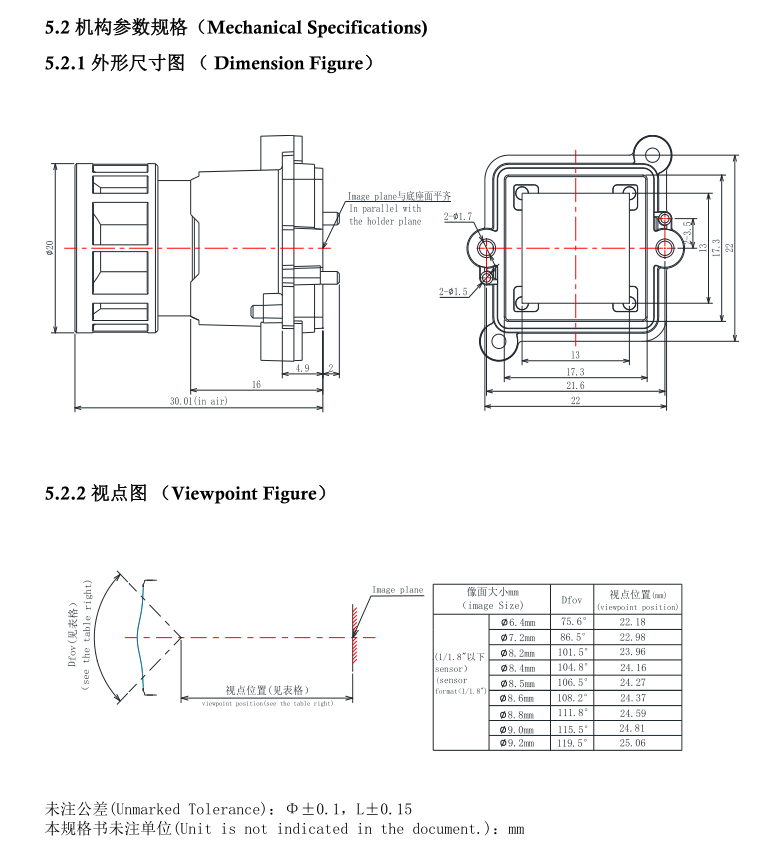

Technical Datasheet of 5.1mm M16 Night Vision Camera Lens
Lens Application
1, CCTV Camera Lens, Starlight Camera Lens
2, Surveillance camera Lens, Wireless security Camera Lens
3，IP Network Camera Lens, POE Camera Lens, SDI camera Lens
4, Bullet Camera Lens, Dome Camera Lens, AHD Camera Lens
5, Wifi Camera Lens, VR 360 Wifi Camera Lens, Bulb Wifi Camera Lens
6, Night Camera Lens, Night Vision Camera Lens
7, Floodlight Camera Lens, Indoor/ourdoor Camera Lens
8, Security Smart Home Camera Lens
9, 4G/ Solar Panel/ Battery Camera Lens
10, Wifi door Phone Camera Lens, doorBell Camera Lens, USB WebCam Lens
11, Baby Monitor Lens, Video Recorder Lens
12, Lens for Hikivision and Dahua Camera
Complete Lenses production and Glass lens assembly process
1, raw material - 2, Cutting- 3,Rough Grinding- 4 Polishing - 5, Inspection -6 Testing
- 7, Centering - 8 Coating - 9 Cleaning - 10 Blackening - 11, Assembly - 12 MTF Testing- 13, Gluing - 14, Filter Mounting - 15 Buckle Lens Cap- 16, Packing
