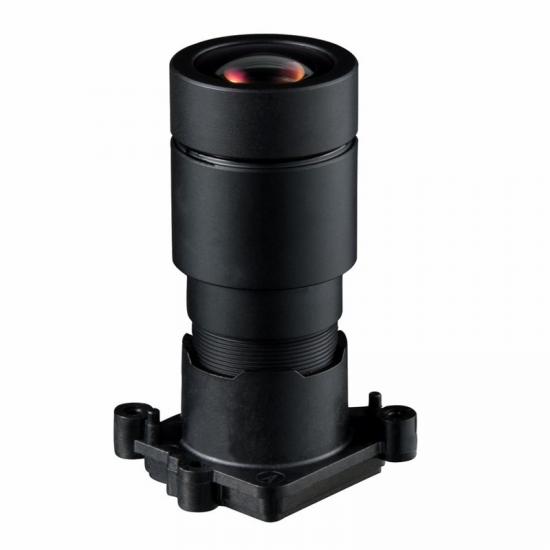

Product Name: 8mm Large format 1/1.8'' Sensor All Glasses camera lens
Product Advantage:
1, Dark Light Low Lux up to F0.9 Large Aperture Lens
2, 8mm Fixed Focus Lens for Bullet Camera, Dome Camera, AHD Camera
3, Remove and correct unexpected spherical aberration by using asperical Lenses
4, barrel made of aluminum alloy raw material, surface oxidized, All black Design

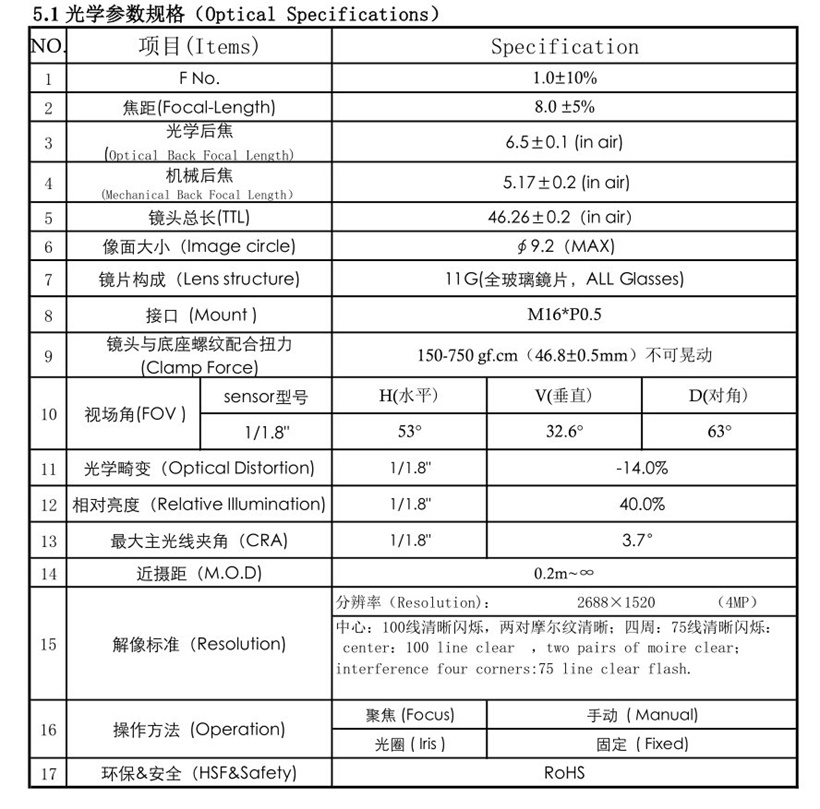

Product Specification
optical specification of 8mm 4MP m16 Glass Lens
1, Focal length：8.0 ±5%
2, Aperture F/No: 0.9±10% Ultra Low LUX Lens
starlight dark Lens/ black lightLense/night vision Lens, Highest Aperture Lens
3, Optical back focal length (OBFL): 6.5±0.1 (in air)
4. Mechanical back focal length (MBFL): 5.17±0.2 (in air)
5. TTL :46.26±0.2（in air）
6, Max image circle: ∮9.2（MAX) 1/1.8’’ large format
7, Lens structure: 11G(ALL Glasses)
8, Mount type: M16*P0.5
9, Clamp Force: 150-750 gf.cm（46.8±0.5mm）do not shake
10, FOV (D/H/V): 1/1.8"D63°/H53°/V32.6°
11, Optical Distortion: 1/1.8"-14.0%
12, Relative illumination: 1/1.8"40.0%
13, CRA: 1/1.8"3.7°
14, M.O,D. 0.2m~ ∞
15, MTF resolution 2688×1520 （4MP）Ultra 1080P
16, Focus operation: manual
Iris operation: fixed
17, HSF&safety: RoHS
Keying technical data of 8mm Lens F1.0 large aperture security Camera Lens
Lens Application
1, CCTV Camera Lens, Starlight Camera Lens
2, Surveillance camera, Wireless security Camera
3，IP Network Camera, POE Camera, SDI camera
4, Bullet Camera, Dome Camera, AHD Camera
5, Wifi Camera, VR 360 WifiCamera, Bulb Wifi Camera
6, Night Camera, Night Vision Camera
7, Floodlight Camera, Indoor/ourdoor Camera
8, Security Smart Home Camera
9, 4G/ Solar Panel/ Battery Camera
10, Wifi door Phone Camera, doorBell Camera, USB WebCam,
11, Baby Monitor,Video Recorder
12, Lens for Hikivision and Dahua Camera
Custom Camera Lens
if you do not find anything meet your requirement on our online website, welcome to inquiry or call us right now to discuss details regarding Custom camera Lens. Please show and tell us your exact requirement or demand needed of your Camera or related product device,we are open to discuss all customzied technical data include but not limit FOV, Focal lenght, low distrotion, F/No, Sensor Type, TTL etc, thank you!
About US
we are China professional Plastic Lens, Glass Lens and Camera Lens Manufacturers that running our own Lens Factory and have South Korea, Taiwan and Japan Imported Optical Lens Manufacturing Machine and Fully Automated Lens Assembly Machines also Glass Lens Manufacturing Equipment and skilled workers work in 10000 Dust-free workshop。Lens Product passed CE, RoHS, REACH Certifications and factory with IATF16949 Approval.Main Lens covering Car camera Lenses (Automotive Lens),Zoom Lens, Fisheye Lenses, Low Distortion Lens, M7 Lens, Wide Angle Lens M12, F1.0 M16 Lens, Motorized Varifocal Lens etc。 of course we are also Wholesale Lens Company, provide Lens Shopping here, Lens Wholesale or retail or Distribute and Custom Camera Lens
why you can consider work with us?
1, Our Lens Product passed CE,RoHS, REACH, FCC Certificate
2, Mostly Lens have 2 year quality warranty
3, We have more than 10 skilled Optical and Mechnical Engineers service you anytime. include pre-sale, order, samples of course Custom-made Lenses
4, Every Quarter launch a few new Lens
5, With Fully Automated Lens Assembly Machines and 10000 Grade Dust-free workshop
6, Various Kinds of Lens cover Automotive Car Camera Lens, CCTV Security Lens,
Fisheye Lens, Wide Angle Lens, ZOOM Lens, Manual Focus Varifocal Lens,
M5/M6/M7/M8/M9/M12/D14/M16/D16/CS / C Mount etc
7, Our sale team have more than 4 years lens sale experience and know them professionaly, can communicate all problems freely and fastly
